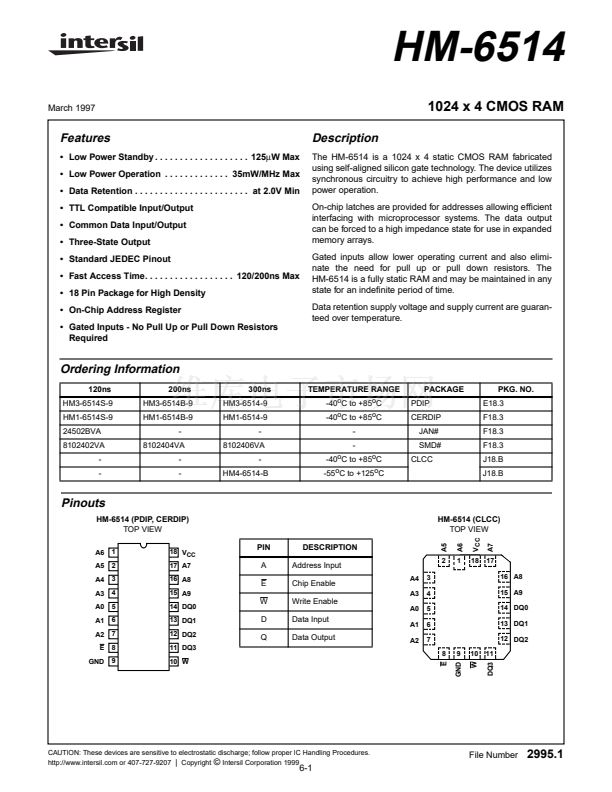

HM-6514
March 1997
1024 x 4 CMOS RAM
Description
The HM-6514 is a 1024 x 4 static CMOS RAM fabricated
using self-aligned silicon gate technology. The device utilizes
synchronous circuitry to achieve high performance and low
power operation.
On-chip latches are provided for addresses allowing ef鏗乧ient
interfacing with microprocessor systems. The data output
can be forced to a high impedance state for use in expanded
memory arrays.
Gated inputs allow lower operating current and also elimi-
nate the need for pull up or pull down resistors. The
HM-6514 is a fully static RAM and may be maintained in any
state for an inde鏗乶ite period of time.
Data retention supply voltage and supply current are guaran-
teed over temperature.
Features
鈥?Low Power Standby . . . . . . . . . . . . . . . . . . . 125碌W Max
鈥?Low Power Operation . . . . . . . . . . . . . 35mW/MHz Max
鈥?Data Retention . . . . . . . . . . . . . . . . . . . . . . . at 2.0V Min
鈥?TTL Compatible Input/Output
鈥?Common Data Input/Output
鈥?Three-State Output
鈥?Standard JEDEC Pinout
鈥?Fast Access Time. . . . . . . . . . . . . . . . . . 120/200ns Max
鈥?18 Pin Package for High Density
鈥?On-Chip Address Register
鈥?Gated Inputs - No Pull Up or Pull Down Resistors
Required
Ordering Information
120ns
HM3-6514S-9
HM1-6514S-9
24502BVA
8102402VA
-
-
200ns
HM3-6514B-9
HM1-6514B-9
-
8102404VA
-
-
300ns
HM3-6514-9
HM1-6514-9
-
8102406VA
-
HM4-6514-B
TEMPERATURE RANGE
-40
o
C to +85
o
C
-40
o
C to +85
o
C
-
-
-40
o
C to +85
o
C
-55
o
C to +125
o
C
PACKAGE
PDIP
CERDIP
JAN#
SMD#
CLCC
PKG. NO.
E18.3
F18.3
F18.3
F18.3
J18.B
J18.B
Pinouts
HM-6514 (PDIP, CERDIP)
TOP VIEW
A6
A5
A4
A3
A0
A1
A2
E
GND
1
2
3
4
5
6
7
8
9
18 V
CC
17 A7
16 A8
15 A9
14 DQ0
13 DQ1
12 DQ2
11 DQ3
10 W
HM-6514 (CLCC)
TOP VIEW
A6
V
CC
18
A5
PIN
A
E
W
D
Q
DESCRIPTION
Address Input
Chip Enable
Write Enable
A0
5
6
7
A4
A3
3
4
2
1
17
16 A8
15 A9
14 DQ0
13 DQ1
12 DQ2
Data Input
Data Output
A1
A2
8
E
9
GND
10
W
11
DQ3
A7
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
File Number
2995.1
6-1
