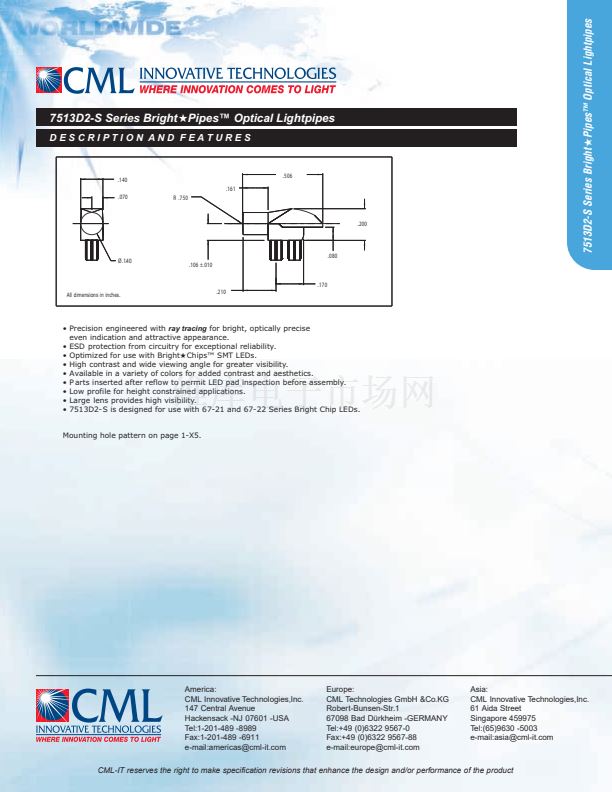

7513D2-S Series Bright5Pipes鈩?Optical Lightpipes
DESCRIPTION AND FEATURES
.140
.161
.070
R .750
.506
.200
脴. 140
.
.080
.106
鹵.010
.170
All dimensions in inches.
.210
鈥?Precision engineered with
ray tracing
for bright, optically precise
even indication and attractive appearance.
鈥?ESD protection from circuitry for exceptional reliability.
鈥?Optimized for use with Bright5Chips鈩?SMT LEDs.
鈥?High contrast and wide viewing angle for greater visibility.
鈥?Available in a variety of colors for added contrast and aesthetics.
鈥?P arts inserted after reflow to permit LED pad inspection before assembly.
鈥?Low profile for height constrained applications.
鈥?Large lens provides high visibility.
鈥?7513D2-S is designed for use with 67-21 and 67-22 Series Bright Chip LEDs.
Mounting hole pattern on page 1-X5.
