74VHC16373TTR Datasheet

  • 74VHC16373TTR

  • LATCH|DUAL|8-BIT|HC-CMOS|TSSOP|48PIN|PLASTIC

  • 79.92KB

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74VHC16373
16-BIT D-TYPE LATCH
WITH 3-STATE OUTPUTS NON INVERTING
s
s
s
s
s
s
s
s
s
s
HIGH SPEED:
t
PD
= 5.0 ns (TYP.) at V
CC
= 5V
LOW POWER DISSIPATION:
I
CC
= 4
碌A(chǔ)
(MAX.) at T
A
=25擄C
HIGH NOISE IMMUNITY:
V
NIH
= V
NIL
= 28% V
CC
(MIN.)
POWER DOWN PROTECTION ON INPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 8 mA (MIN)
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 5.5V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 16373
IMPROVED LATCH-UP IMMUNITY
LOW NOISE: V
OLP
= 0.9V (MAX.)

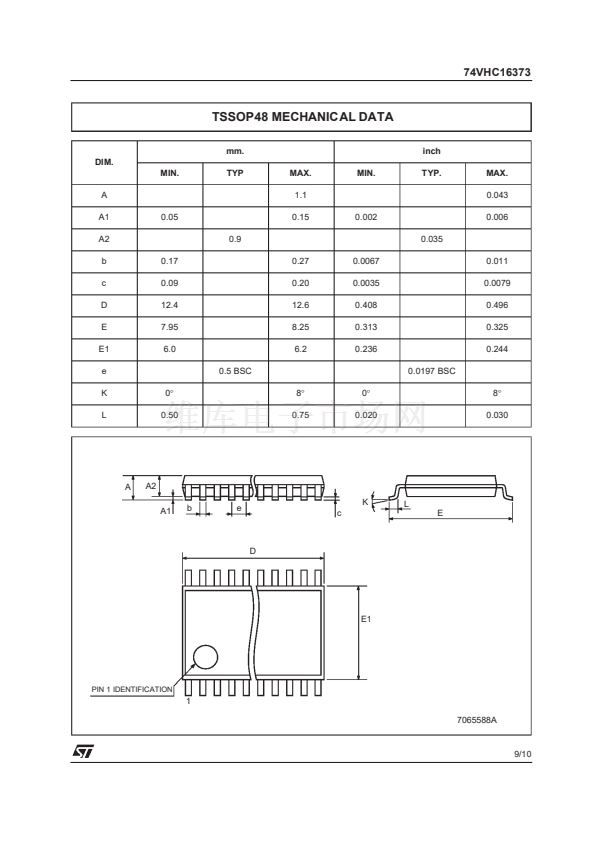

TSSOP
ORDER CODES
PACKAGE
TSSOP
TUBE
T &R
74VHC16373TTR

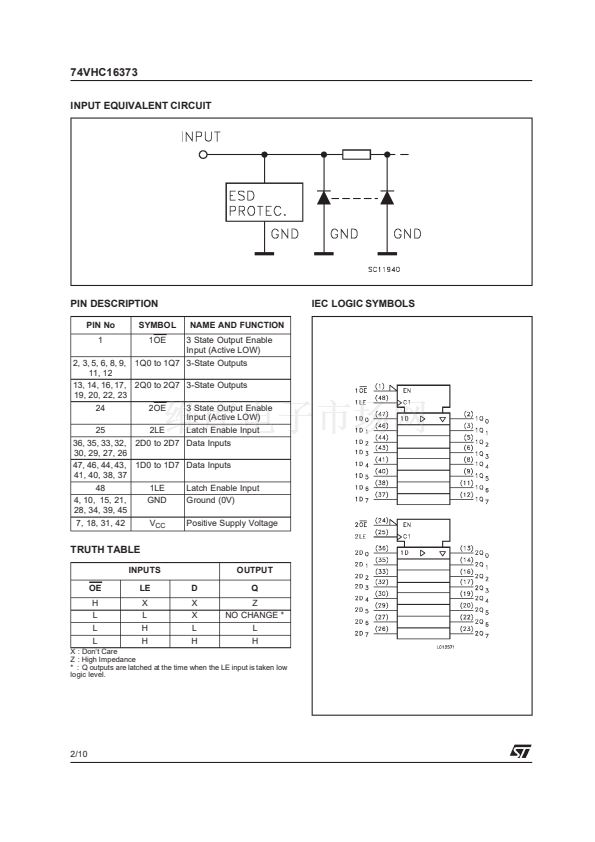

PIN CONNECTION
DESCRIPTION
The 74VHC16373 is an advanced high-speed
CMOS 16 BIT D-TYPE LATCH with 3 STATE
OUTPUTS NON INVERTING fabricated with
sub-micron silicon gate and double-layer metal
wiring C
2
MOS technology.

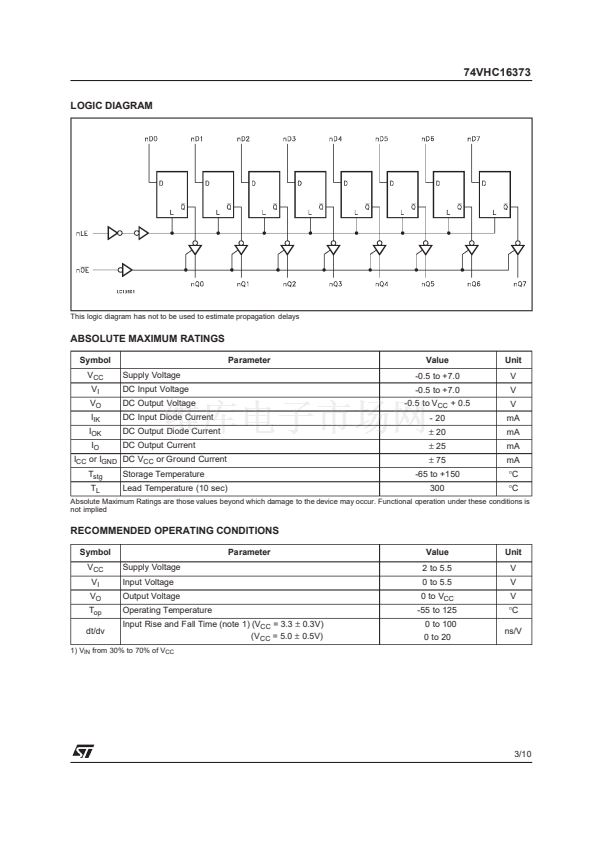

These 16 bit D-TYPE latches are byte controlled
by two latch enable inputs (nLE) and two output
enable inputs(nOE).
While the nLE input is held at a high level, the nQ
outputs will follow the data (D) inputs.
When the nLE is taken LOW, the nQ outputs will
be latched at the logic level of D data inputs.
When the (nOE) input is low, the nQ outputs will
be in a normal logic state (high or low logic level);
when nOE is at high level ,the outputs will be in a
high impedance state.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage. This device can be
used to interface 5V to 3V.
All inputs and outputs are equipped with protec-
tion circuits against static discharge, giving them
2KV ESD immunity and transient excess voltage.
July 2001
1/10

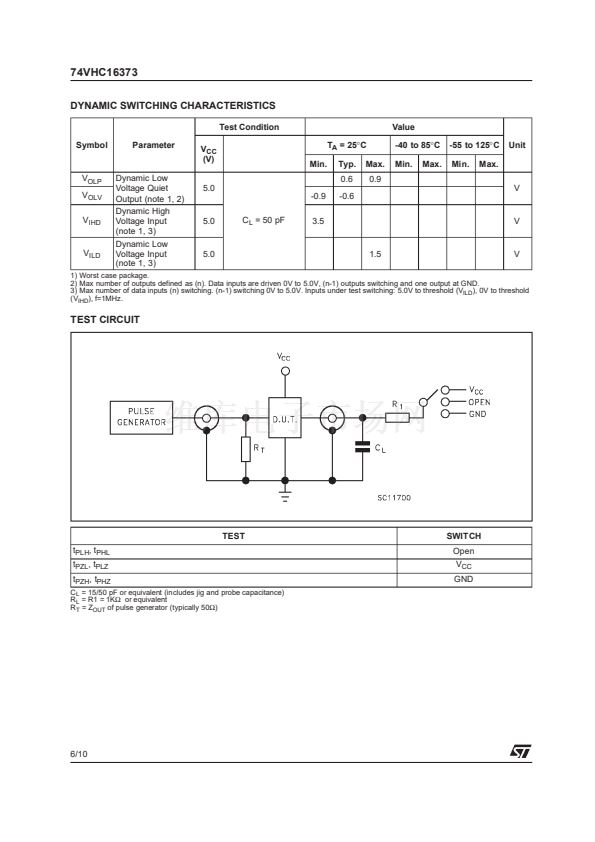

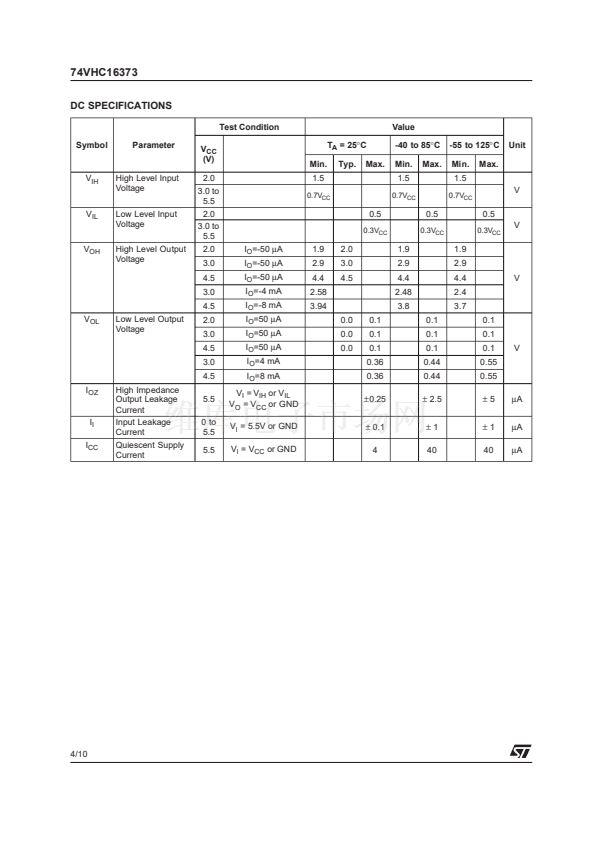

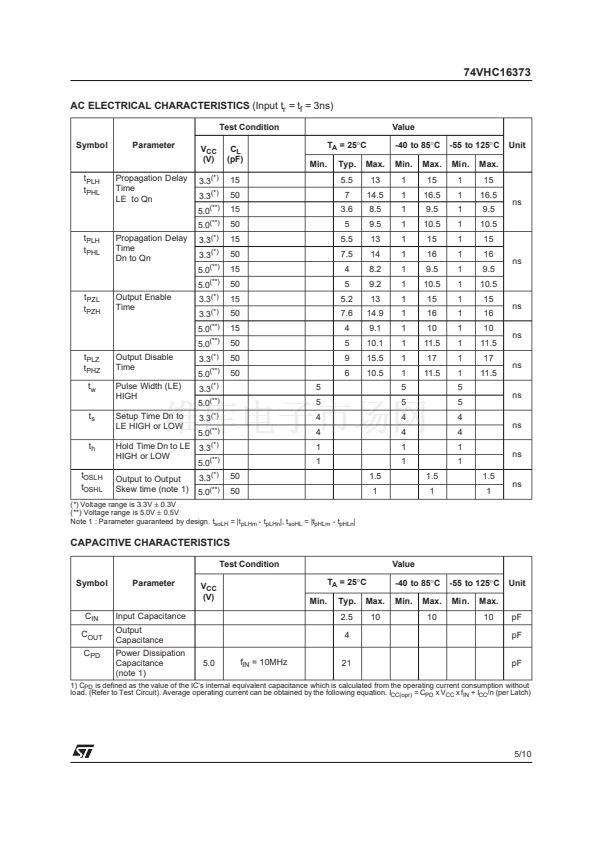

74VHC16373TTR 產品屬性

  • 2,000

  • 集成電路 (IC)

  • 邏輯 - 鎖銷

  • 74VHC

  • D 型透明鎖存器

  • 8:8

  • 三態

  • 2 V ~ 5.5 V

  • 2

  • 5ns

  • 8mA，8mA

  • -55°C ~ 125°C

  • 表面貼裝

  • 48-TFSOP（0.240"，6.10mm 寬）

  • 48-TSSOP

  • 帶卷 (TR)
