74VHC132T Datasheet

  • 74VHC132T

  • QUAD 2-INPUT SCHMITT NAND GATE

  • 7頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

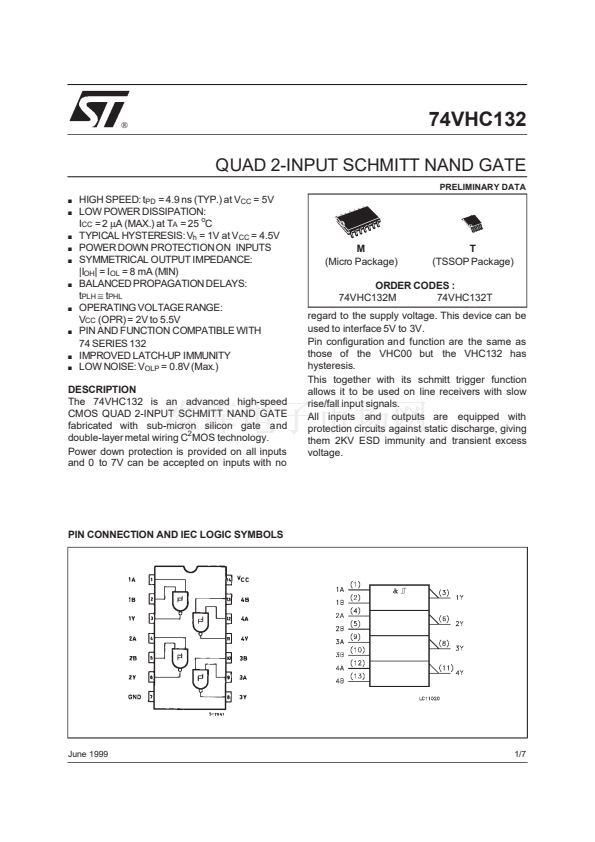

74VHC132
QUAD 2-INPUT SCHMITT NAND GATE
PRELIMINARY DATA
s
s
s
s
s
s
s
s
s
s
HIGH SPEED: t
PD
= 4.9 ns (TYP.) at V
CC
= 5V
LOW POWER DISSIPATION:
I
CC
= 2
碌A
(MAX.) at T
A
= 25
o
C
TYPICAL HYSTERESIS: V
h
= 1V at V
CC
= 4.5V
POWER DOWN PROTECTION ON INPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 8 mA (MIN)
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 5.5V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 132
IMPROVED LATCH-UP IMMUNITY
LOW NOISE: V
OLP
= 0.8V (Max.)
M
(Micro Package)
T
(TSSOP Package)
ORDER CODES :
74VHC132M
74VHC132T
regard to the supply voltage. This device can be
used to interface 5V to 3V.
Pin configuration and function are the same as
those of the VHC00 but the VHC132 has
hysteresis.
This together with its schmitt trigger function
allows it to be used on line receivers with slow
rise/fall input signals.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
DESCRIPTION
The 74VHC132 is an advanced high-speed
CMOS QUAD 2-INPUT SCHMITT NAND GATE
fabricated with sub-micron silicon gate and
double-layer metal wiring C
2
MOS technology.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
PIN CONNECTION AND IEC LOGIC SYMBOLS
June 1999
1/7
