74VCXH245
Low鈭扸oltage 1.8/2.5/3.3V
8鈭払it Transceiver
(3-State, Non-Inverting with Bushold)
The 74VCXH245 is an advanced performance, non-inverting 8-bit
transceiver. It is designed for very high-speed, very low-power
operation in 1.8 V, 2.5 V or 3.3 V systems.

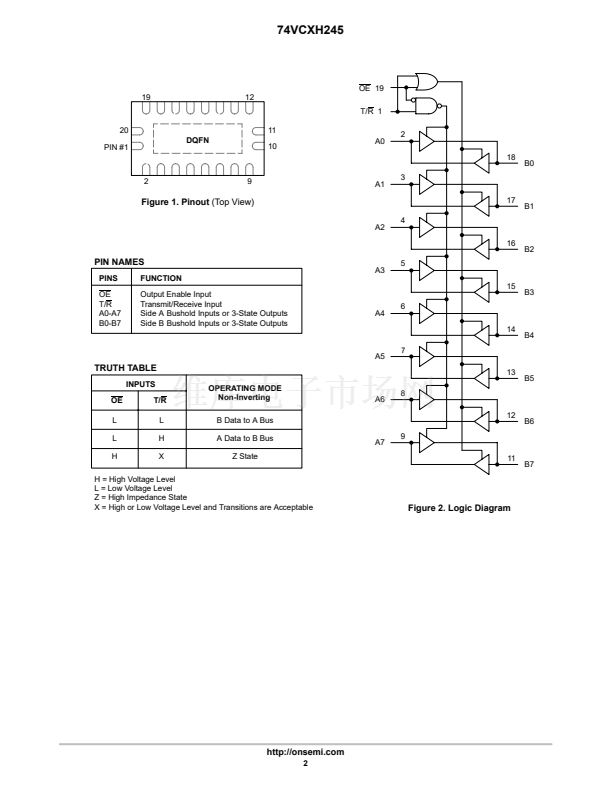

The 74VCXH245 is designed as a byte control. The
Transmit/Receive (T/Rn) inputs determine the direction of data flow
through the bi- directional transceiver. Transmit (active- HIGH)
enables data from A ports to B ports; Receive (active-LOW) enables
data from B to A ports. The Output Enable input (OE), when HIGH,
disables both A and B ports by placing them in a HIGH Z condition.
The data inputs include active bushold circuitry, eliminating the need
for external pull-up resistors to hold unused or floating inputs at a
valid logic state.
http://onsemi.com
MARKING
DIAGRAMS
(Top View)
1 20
DQFN
SUFFIX TBD
CASE 485AA
VCXH
245
ALYW
鈥?/div>
Designed for Low Voltage Operation: V
CC
= 1.65-3.6 V
鈥?/div>
High Speed Operation: 3.5 ns max for 3.0 to 3.6 V
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
4.2 ns max for 2.3 to 2.7 V
8.4 ns max for 1.65 to 1.95 V
Static Drive:
鹵24
mA Drive at 3.0 V
鹵18
mA Drive at 2.3 V
鹵6
mA Drive at 1.65 V
Includes Active Bushold to Hold Unused or Floating Data Inputs at a
Valid Logic State
Near Zero Static Supply Current in All Three Logic States (20
mA)
Substantially Reduces System Power Requirements
Latchup Performance Exceeds
鹵200
mA @ 85擄C
ESD Performance: Human Body Model >2000 V; Machine Model >200 V
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
漏
Semiconductor Components Industries, LLC, 2003
1
April, 2003 - Rev. 7
Publication Order Number:
74VCXH245/D
