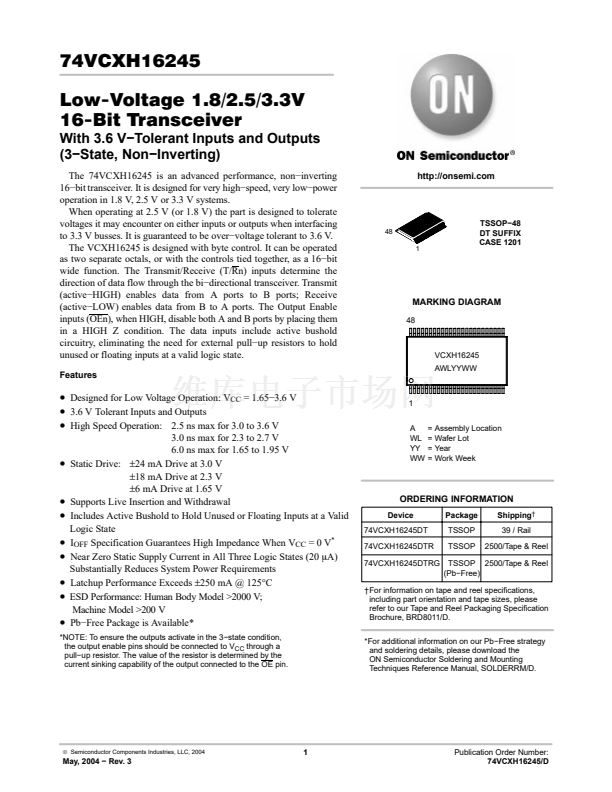

74VCXH16245
Low鈭扸oltage 1.8/2.5/3.3V
16鈭払it Transceiver
With 3.6 V鈭扵olerant Inputs and Outputs
(3鈭扴tate, Non鈭捍nverting)
The 74VCXH16245 is an advanced performance, non鈭抜nverting
16鈭抌it transceiver. It is designed for very high鈭抯peed, very low鈭抪ower
operation in 1.8 V, 2.5 V or 3.3 V systems.
When operating at 2.5 V (or 1.8 V) the part is designed to tolerate
voltages it may encounter on either inputs or outputs when interfacing
to 3.3 V busses. It is guaranteed to be over鈭抳oltage tolerant to 3.6 V.
The VCXH16245 is designed with byte control. It can be operated
as two separate octals, or with the controls tied together, as a 16鈭抌it
wide function. The Transmit/Receive (T/Rn) inputs determine the
direction of data flow through the bi鈭抎irectional transceiver. Transmit
(active鈭扝IGH) enables data from A ports to B ports; Receive
(active鈭扡OW) enables data from B to A ports. The Output Enable
inputs (OEn), when HIGH, disable both A and B ports by placing them
in a HIGH Z condition. The data inputs include active bushold
circuitry, eliminating the need for external pull鈭抲p resistors to hold
unused or floating inputs at a valid logic state.
Features
http://onsemi.com
48
1
TSSOP鈭?8
DT SUFFIX
CASE 1201
MARKING DIAGRAM
48
VCXH16245
AWLYYWW
鈥?/div>
Designed for Low Voltage Operation: V
CC
= 1.65鈭?.6 V
鈥?/div>
3.6 V Tolerant Inputs and Outputs
鈥?/div>
High Speed Operation: 2.5 ns max for 3.0 to 3.6 V
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3.0 ns max for 2.3 to 2.7 V
6.0 ns max for 1.65 to 1.95 V
Static Drive:
鹵24
mA Drive at 3.0 V
鹵18
mA Drive at 2.3 V
鹵6
mA Drive at 1.65 V
Supports Live Insertion and Withdrawal
Includes Active Bushold to Hold Unused or Floating Inputs at a Valid
Logic State
I
OFF
Specification Guarantees High Impedance When V
CC
= 0 V
*
Near Zero Static Supply Current in All Three Logic States (20
mA)
Substantially Reduces System Power Requirements
Latchup Performance Exceeds
鹵250
mA @ 125擄C
ESD Performance: Human Body Model >2000 V;
Machine Model >200 V
Pb鈭扚ree Package is Available*
1
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
ORDERING INFORMATION
Device
74VCXH16245DT
74VCXH16245DTR
74VCXH16245DTRG
Package
TSSOP
TSSOP
Shipping
鈥?/div>
39 / Rail
2500/Tape & Reel
TSSOP 2500/Tape & Reel
(Pb鈭扚ree)
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
*For additional information on our Pb鈭扚ree strategy
and soldering details, please download the
ON Semiconductor Soldering and Mounting
Techniques Reference Manual, SOLDERRM/D.
*NOTE: To ensure the outputs activate in the 3鈭抯tate condition,
the output enable pins should be connected to V
CC
through a
pull鈭抲p resistor. The value of the resistor is determined by the
current sinking capability of the output connected to the OE pin.
漏
Semiconductor Components Industries, LLC, 2004
1
May, 2004 鈭?Rev. 3
Publication Order Number:
74VCXH16245/D
