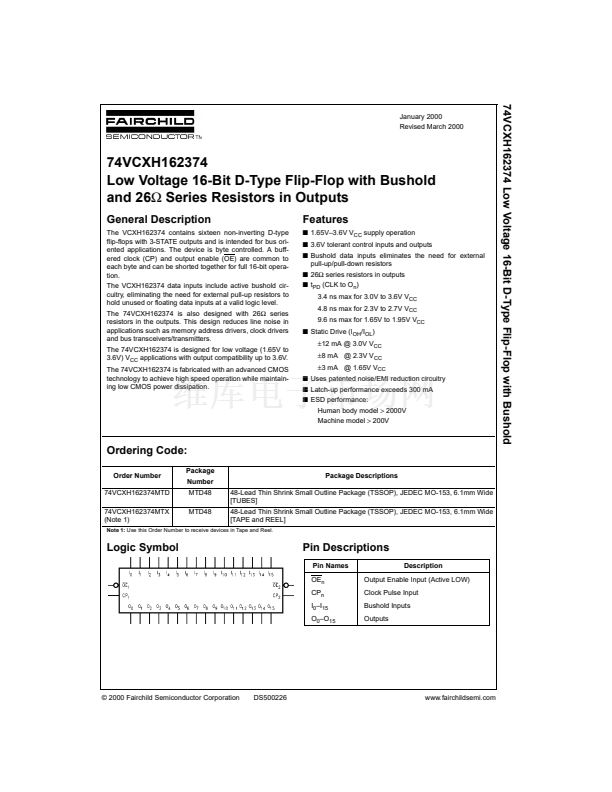

74VCXH162374 Low Voltage 16-Bit D-Type Flip-Flop with Bushold
January 2000
Revised March 2000
74VCXH162374
Low Voltage 16-Bit D-Type Flip-Flop with Bushold
and 26鈩?Series Resistors in Outputs
General Description
The VCXH162374 contains sixteen non-inverting D-type
flip-flops with 3-STATE outputs and is intended for bus ori-
ented applications. The device is byte controlled. A buff-
ered clock (CP) and output enable (OE) are common to
each byte and can be shorted together for full 16-bit opera-
tion.
The VCXH162374 data inputs include active bushold cir-
cuitry, eliminating the need for external pull-up resistors to
hold unused or floating data inputs at a valid logic level.
The 74VCXH162374 is also designed with 26鈩?series
resistors in the outputs. This design reduces line noise in
applications such as memory address drivers, clock drivers
and bus transceivers/transmitters.
The 74VCXH162374 is designed for low voltage (1.65V to
3.6V) V
CC
applications with output compatibility up to 3.6V.
The 74VCXH162374 is fabricated with an advanced CMOS
technology to achieve high speed operation while maintain-
ing low CMOS power dissipation.
Features
s
1.65V鈥?.6V V
CC
supply operation
s
3.6V tolerant control inputs and outputs
s
Bushold data inputs eliminates the need for external
pull-up/pull-down resistors
s
26鈩?series resistors in outputs
s
t
PD
(CLK to O
n
)
3.4 ns max for 3.0V to 3.6V V
CC
4.8 ns max for 2.3V to 2.7V V
CC
9.6 ns max for 1.65V to 1.95V V
CC
s
Static Drive (I
OH
/I
OL
)
鹵12
mA @ 3.0V V
CC
鹵8
mA @ 2.3V V
CC
鹵3
mA @ 1.65V V
CC
s
Uses patented noise/EMI reduction circuitry
s
Latch-up performance exceeds 300 mA
s
ESD performance:
Human body model
>
2000V
Machine model
>
200V
Ordering Code:
Order Number
74VCXH162374MTD
74VCXH162374MTX
(Note 1)
Package
Number
MTD48
MTD48
Package Descriptions
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
[TUBES]
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
[TAPE and REEL]
Note 1:
Use this Order Number to receive devices in Tape and Reel.
Logic Symbol
Pin Descriptions
Pin Names
OE
n
CP
n
I
0
鈥揑
15
O
0
鈥揙
15
Description
Output Enable Input (Active LOW)
Clock Pulse Input
Bushold Inputs
Outputs
漏 2000 Fairchild Semiconductor Corporation
DS500226
www.fairchildsemi.com
