74LX1G14STR Datasheet

  • 74LX1G14STR

  • LOW VOLTAGE CMOS SINGLE SCHMITT INVERTER WITH 5V TOLERANT IN...

  • 11頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

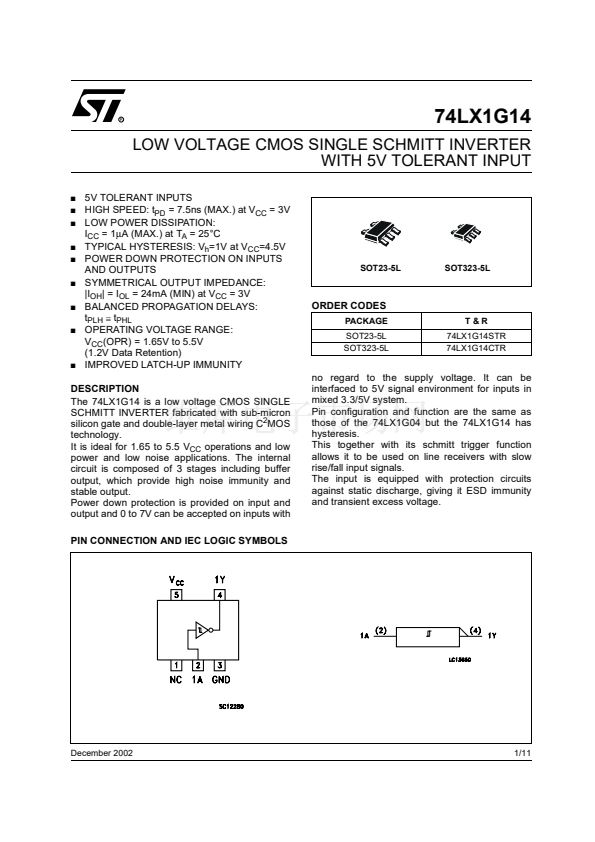

74LX1G14
LOW VOLTAGE CMOS SINGLE SCHMITT INVERTER
WITH 5V TOLERANT INPUT
s
s
s
s
s
s
s
s
s
5V TOLERANT INPUTS
HIGH SPEED: t
PD
= 7.5ns (MAX.) at V
CC
= 3V
LOW POWER DISSIPATION:
I
CC
= 1碌A(chǔ) (MAX.) at T
A
= 25擄C
TYPICAL HYSTERESIS: V
h
=1V at V
CC
=4.5V
POWER DOWN PROTECTION ON INPUTS
AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN) at V
CC
= 3V
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 1.65V to 5.5V
(1.2V Data Retention)
IMPROVED LATCH-UP IMMUNITY
SOT23-5L
SOT323-5L
ORDER CODES
PACKAGE
SOT23-5L
SOT323-5L
T&R
74LX1G14STR
74LX1G14CTR
DESCRIPTION
The 74LX1G14 is a low voltage CMOS SINGLE
SCHMITT INVERTER fabricated with sub-micron
silicon gate and double-layer metal wiring C
2
MOS
technology.
It is ideal for 1.65 to 5.5 V
CC
operations and low
power and low noise applications. The internal
circuit is composed of 3 stages including buffer
output, which provide high noise immunity and
stable output.
Power down protection is provided on input and
output and 0 to 7V can be accepted on inputs with
PIN CONNECTION AND IEC LOGIC SYMBOLS
no regard to the supply voltage. It can be
interfaced to 5V signal environment for inputs in
mixed 3.3/5V system.
Pin configuration and function are the same as
those of the 74LX1G04 but the 74LX1G14 has
hysteresis.
This together with its schmitt trigger function
allows it to be used on line receivers with slow
rise/fall input signals.
The input is equipped with protection circuits
against static discharge, giving it ESD immunity
and transient excess voltage.
December 2002
1/11

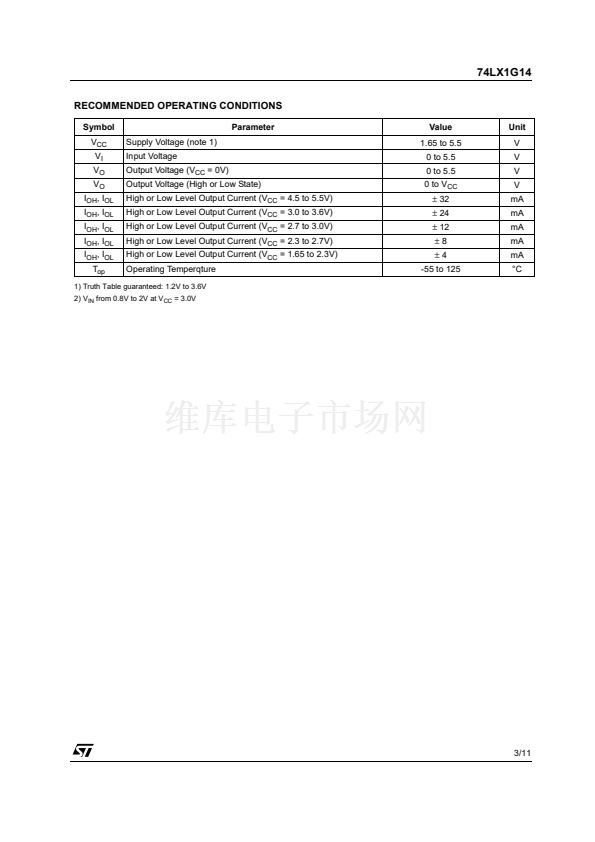

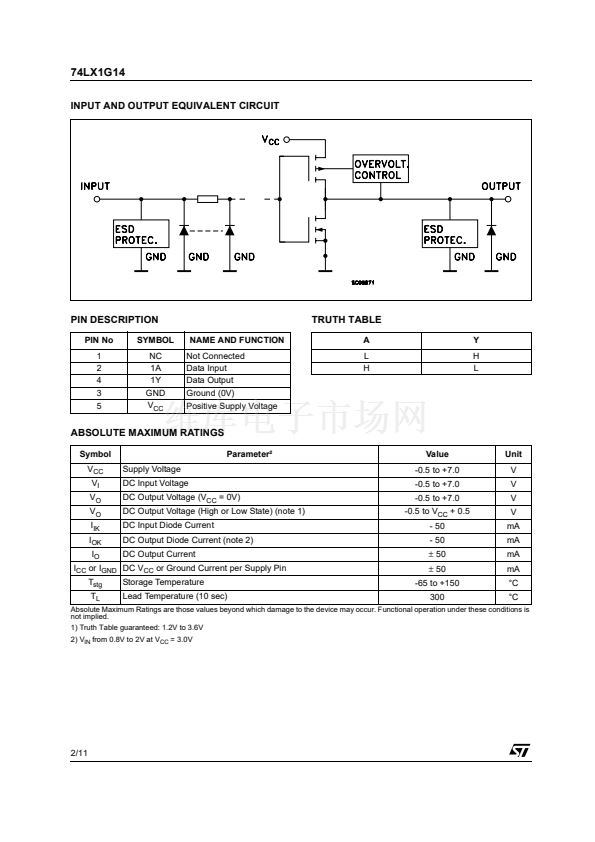

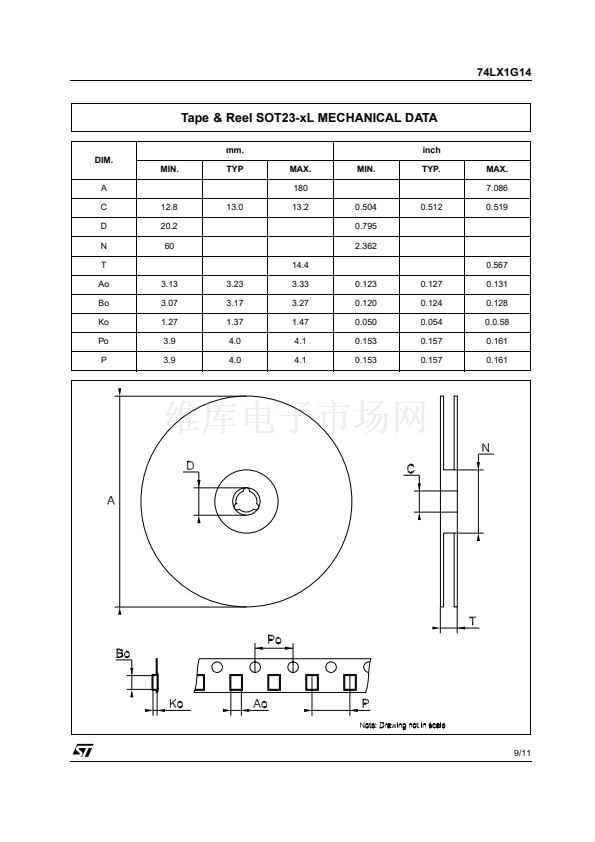

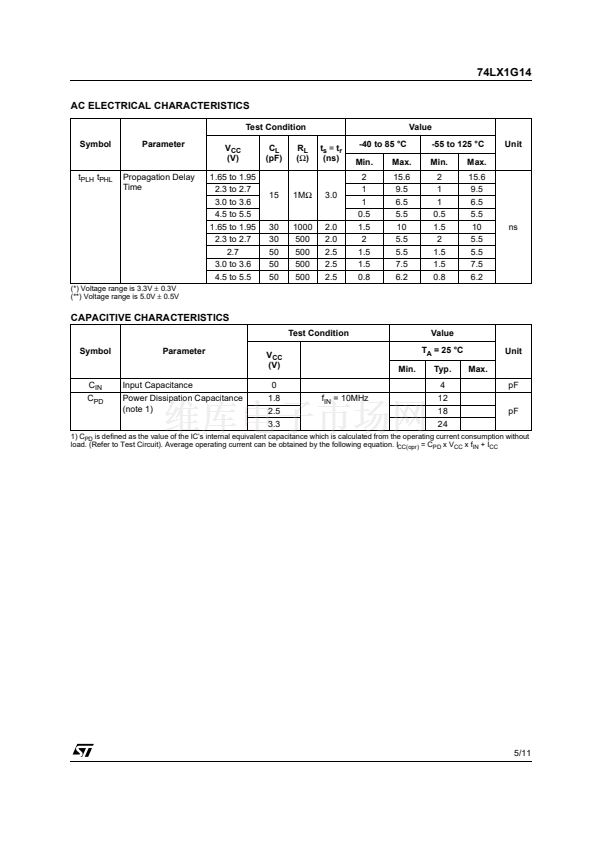

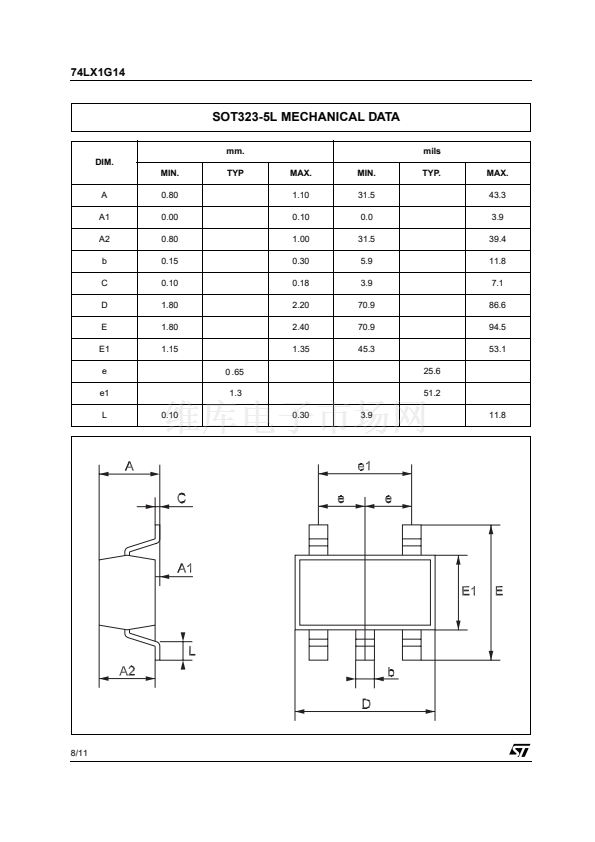

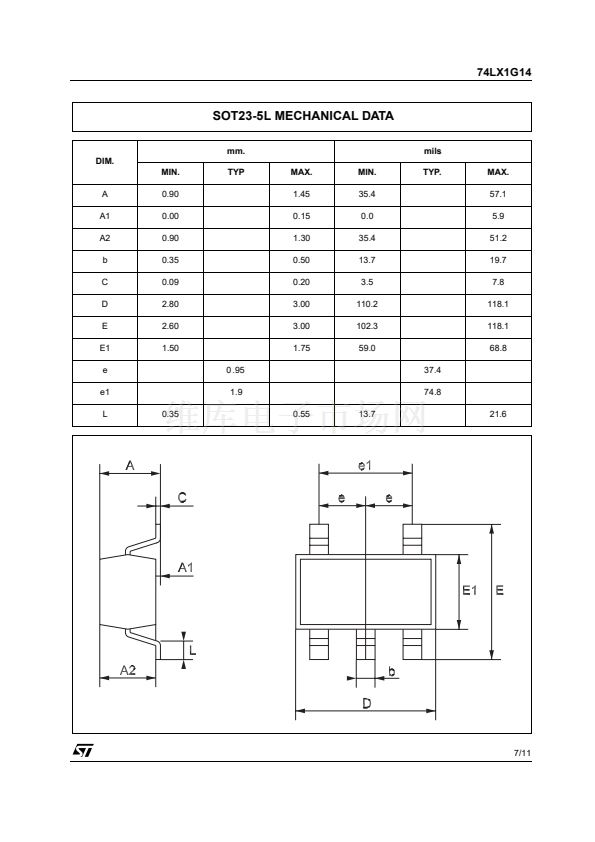

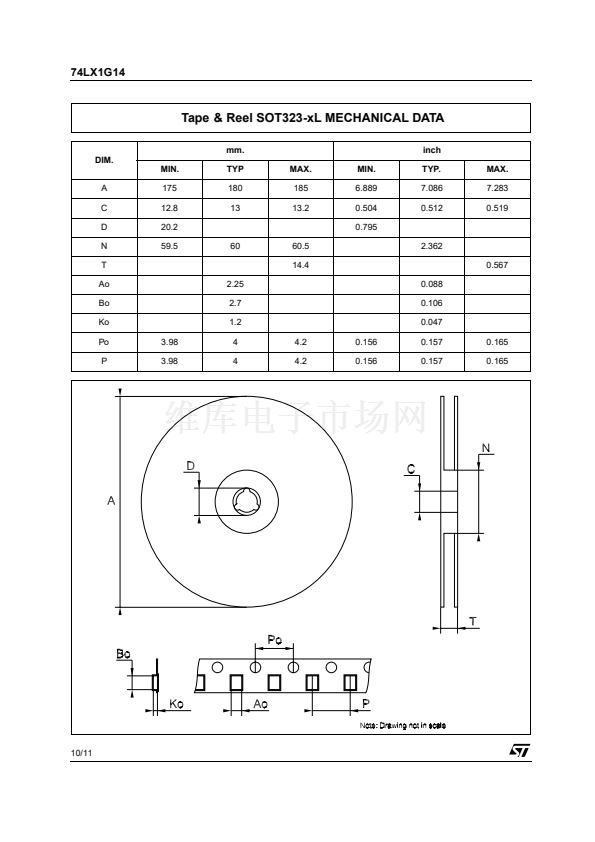

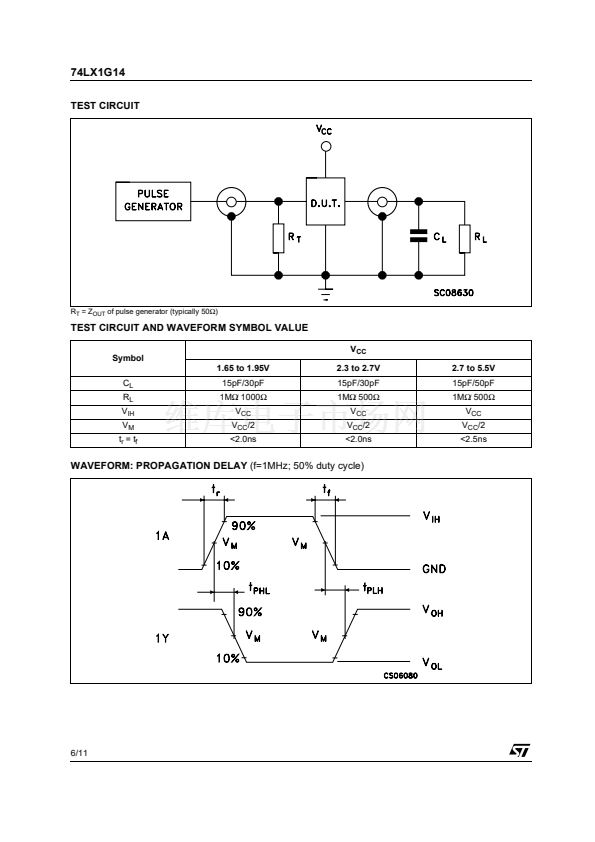

74LX1G14STR 產品屬性

  • 74LX1G14 View All Specifications

  • 3,000

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 74LX

  • 逆變器，緩沖器

  • 1

  • 1

  • 施密特觸發器

  • 1.65 V ~ 5.5 V

  • 10µA

  • 32mA，32mA

  • 0.39 V ~ 1.87 V

  • 1.16 V ~ 3.33 V

  • 6.2ns @ 4.5V ~ 5.5V，50pF

  • -55°C ~ 125°C

  • 表面貼裝

  • SOT-23-5

  • SC-74A，SOT-753

  • 帶卷 (TR)

  • 497-1256-2
