74LX1G126STR Datasheet

  • 74LX1G126STR

  • SINGLE BUS BUFFER (3-STATE)

  • 12頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74LX1G126
SINGLE BUS BUFFER (3-STATE)
s
s
s
s
s
s
s
s
5V TOLERANT INPUTS
HIGH SPEED: t
PD
= 4.5ns (MAX.) at V
CC
= 3V
LOW POWER DISSIPATION:
I
CC
= 1碌A(chǔ) (MAX.) at T
A
= 25擄C
POWER DOWN PROTECTION ON INPUTS
AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN) at V
CC
= 3V
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 1.65V to 5.5V
(1.2V Data Retention)
IMPROVED LATCH-UP IMMUNITY
SOT23-5L
SOT323-5L
ORDER CODES
PACKAGE
SOT23-5L
SOT323-5L
T&R
74LX1G126STR
74LX1G126CTR
DESCRIPTION
The 74LX1G126 is a low voltage CMOS SINGLE
BUS BUFFER fabricated with sub-micron silicon
gate and double-layer metal wiring C
2
MOS
technology.
3-STATE control input G has to be set LOW to
place the output into the high impedance state.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage. This device can be
used to interface 5V to 3V.
All inputs and outputs are equipped with
protection circuits against static discharge.

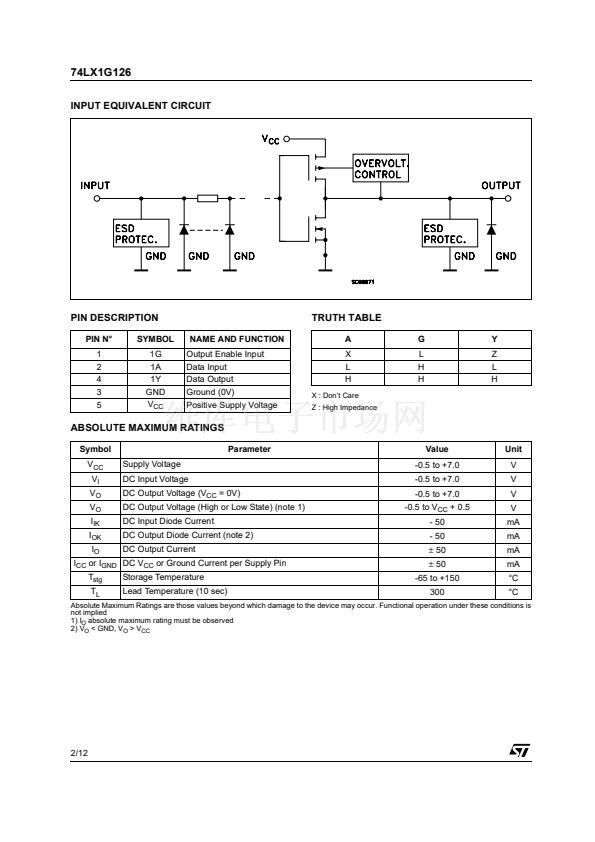

PIN CONNECTION AND IEC LOGIC SYMBOLS
April 2004
1/12

74LX1G126STR 產品屬性

  • 3,000

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74LX

  • 緩沖器/線路驅動器，非反相

  • 1

  • 1

  • 32mA，32mA

  • 1.65 V ~ 5.5 V

  • -55°C ~ 125°C

  • 表面貼裝

  • SC-74A，SOT-753

  • SOT-23-5

  • 帶卷 (TR)

  • 497-1254-2
