PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 3.6V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 273
IMPROVED LATCH-UP IMMUNITY
M
(Micro Package)
T
(TSSOP Package)
ORDER CODES :
74LVX273M
74LVX273T
transfered to the Q outputs on the positive going
edge of the clock pulse.
When the CLEAR input is held low, the Q outputs
are held low independently of the other inputs.
It has better speed performance at 3.3V than 5V
LS-TTL family combined with the true CMOS low
power consumption.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage. This device can be
used to interface 5V to 3V.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
DESCRIPTION

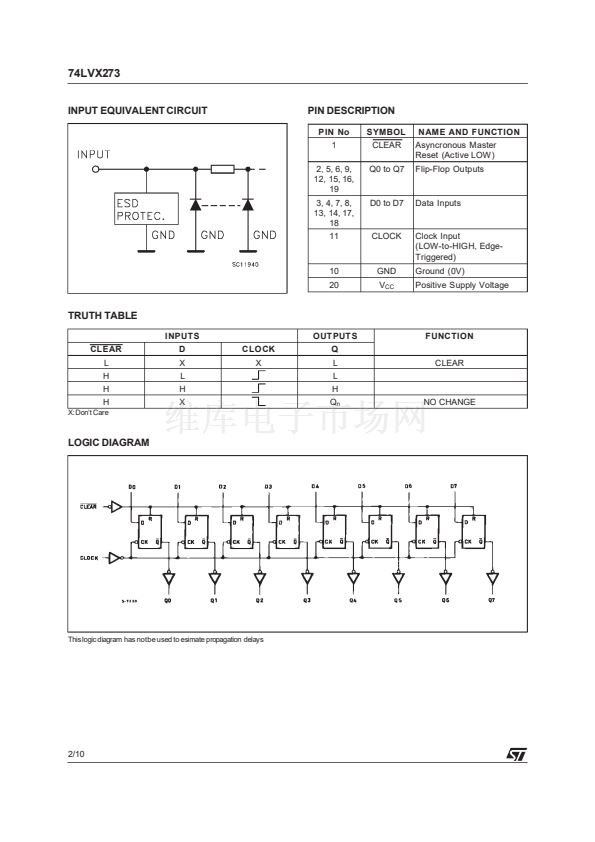

The LVX273 is a low voltage CMOS OCTAL
D-TYPE FLIP FLOP WITH CLEAR fabricated
with sub-micron silicon gate and double-layer
metal wiring C
2
MOS technology. It is ideal for low
power and low noise 3.3V applications.
Information signals applied to D inputs are
PIN CONNECTION AND IEC LOGIC SYMBOLS
April 1999
1/10
