74LVX05M Datasheet

  • 74LVX05M

  • LOGIC GATE|HEX INVERTER|LVX-CMOS|SOP|14PIN|PLASTIC

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

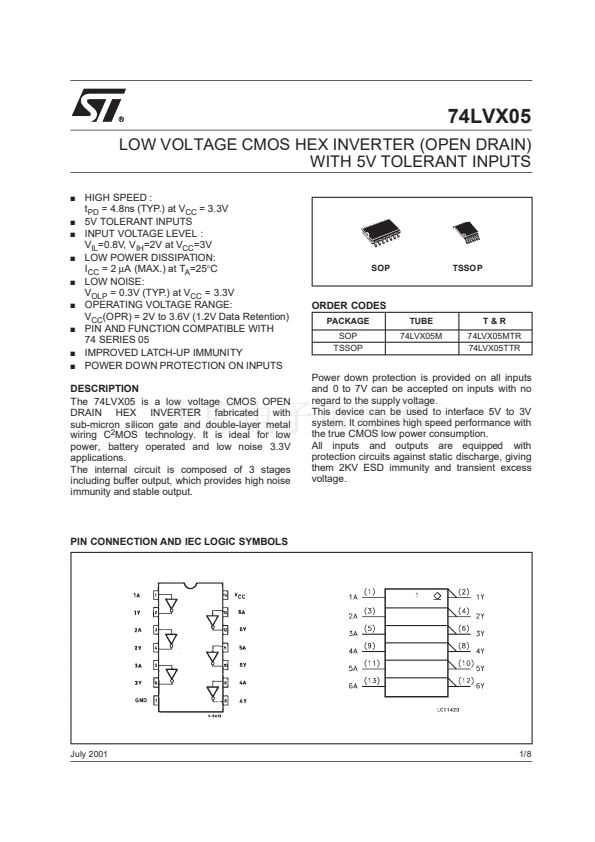

74LVX05
LOW VOLTAGE CMOS HEX INVERTER (OPEN DRAIN)
WITH 5V TOLERANT INPUTS
s
s
s
s
s
s
s
s
s

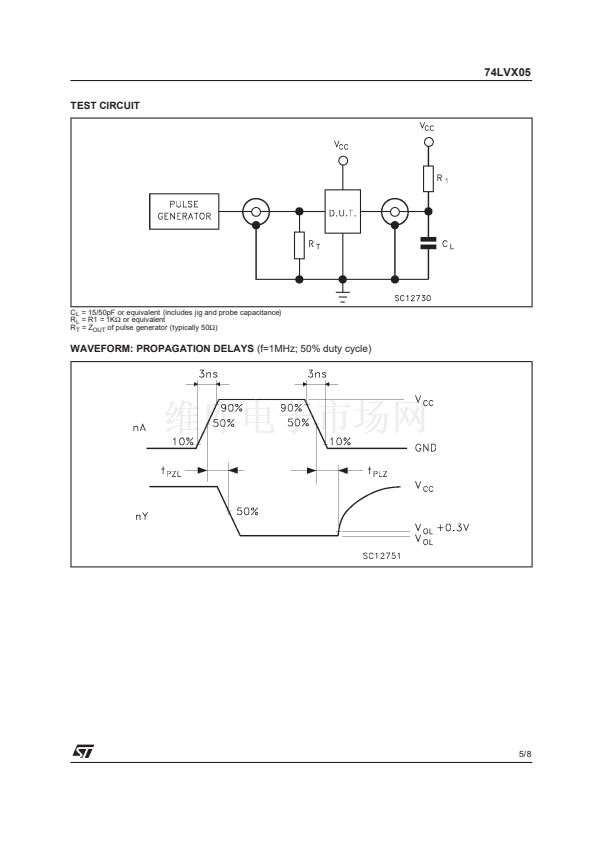

HIGH SPEED :
t
PD
= 4.8ns (TYP.) at V
CC
= 3.3V
5V TOLERANT INPUTS

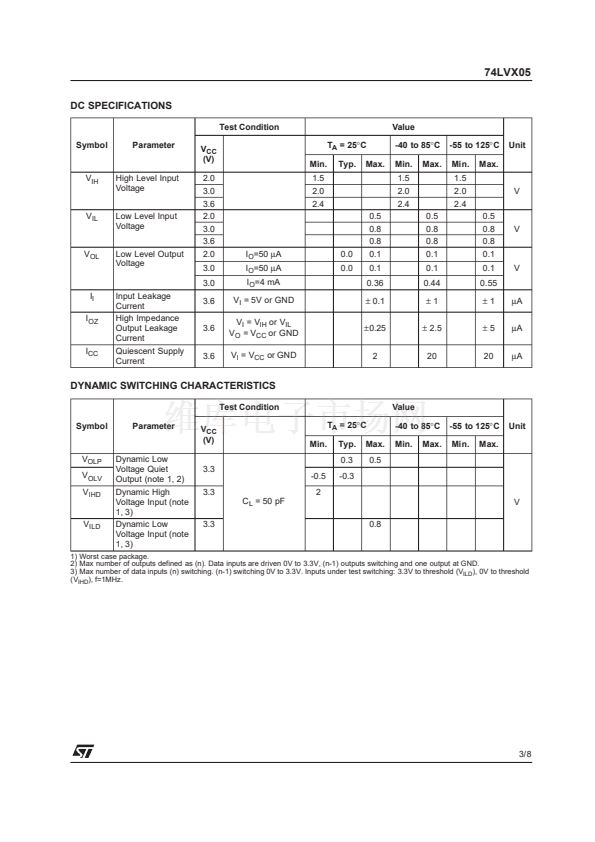

INPUT VOLTAGE LEVEL :
V
IL
=0.8V, V
IH
=2V at V
CC
=3V
LOW POWER DISSIPATION:
I
CC
= 2
碌A(chǔ)
(MAX.) at T
A
=25擄C
LOW NOISE:
V
OLP
= 0.3V (TYP.) at V
CC
= 3.3V
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 3.6V (1.2V Data Retention)
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 05
IMPROVED LATCH-UP IMMUNITY
POWER DOWN PROTECTION ON INPUTS

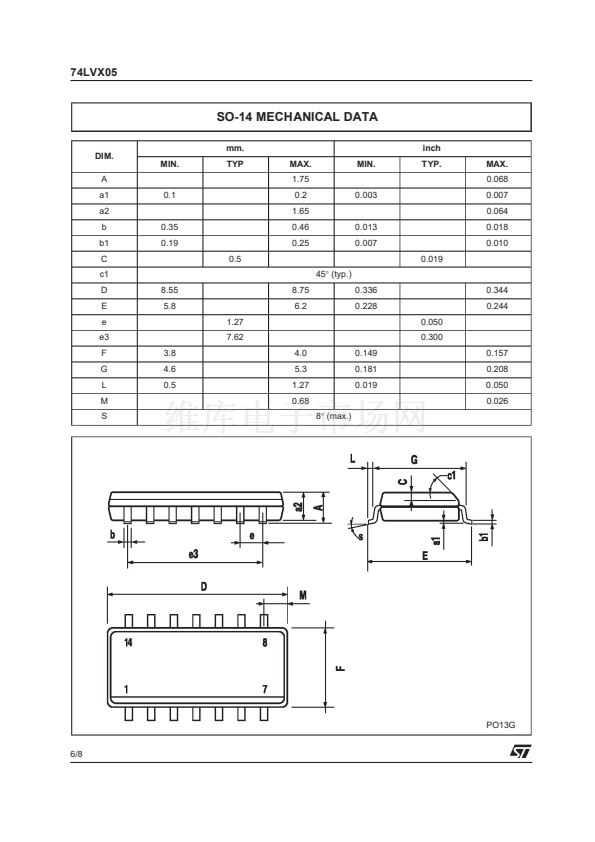

SOP

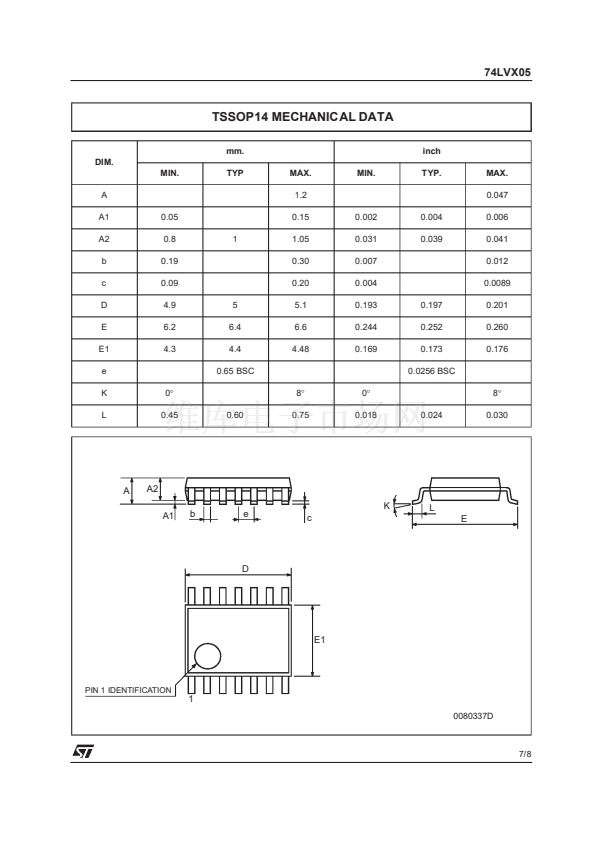

TSSOP
ORDER CODES
PACKAGE
SOP
TSSOP
TUBE
74LVX05M
T&R
74LVX05MTR
74LVX05TTR
DESCRIPTION
The 74LVX05 is a low voltage CMOS OPEN
DRAIN HEX INVERTER fabricated with
sub-micron silicon gate and double-layer metal
wiring C
2
MOS technology. It is ideal for low
power, battery operated and low noise 3.3V
applications.
The internal circuit is composed of 3 stages
including buffer output, which provides high noise
immunity and stable output.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage.
This device can be used to interface 5V to 3V
system. It combines high speed performance with
the true CMOS low power consumption.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
PIN CONNECTION AND IEC LOGIC SYMBOLS
July 2001
1/8

74LVX05M 產品屬性

  • STMicroelectronics

  • 緩沖器和線路驅動器

  • 6

  • 6

  • Inverting

  • 3.6 V

  • 2 V

  • + 125 C

  • SMD/SMT

  • SOIC-14

  • Reel

  • - 4 mA

  • LVX

  • CMOS

  • 4 mA

  • - 55 C

  • 5

  • Open Drain

  • 1000
