SN54LVTH16374, SN74LVTH16374
3.3 V ABT 16 BIT EDGE TRIGGERED D TYPE FLIP FLOPS
WITH 3 STATE OUTPUTS
SCBS145O 鈭?MAY 1992 鈭?REVISED SEPTEMBER 2003
D
Members of the Texas Instruments
D
D
D
D
D
D
D
D
D
D
Widebus
錚?/div>
Family
State-of-the-Art Advanced BiCMOS
Technology (ABT) Design for 3.3-V
Operation and Low Static-Power
Dissipation
Support Mixed-Mode Signal Operation
(5-V Input and Output Voltages With
3.3-V V
CC
)
Support Unregulated Battery Operation
Down to 2.7 V
Typical V
OLP
(Output Ground Bounce)
<0.8 V at V
CC
= 3.3 V, T
A
= 25擄C
I
off
and Power-Up 3-State Support Hot
Insertion
Bus Hold on Data Inputs Eliminates the
Need for External Pullup/Pulldown
Resistors
Distributed V
CC
and GND Pins Minimize
High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB
Layout
Latch-Up Performance Exceeds 500 mA Per
JESD 17
ESD Protection Exceeds JESD 22
鈭?2000-V Human-Body Model (A114-A)
鈭?200-V Machine Model (A115-A)
SN54LVTH16374 . . . WD PACKAGE
SN74LVTH16374 . . . DGG OR DL PACKAGE
(TOP VIEW)
1OE
1Q1
1Q2
GND
1Q3
1Q4
V
CC
1Q5
1Q6
GND
1Q7
1Q8
2Q1
2Q2
GND
2Q3
2Q4
V
CC
2Q5
2Q6
GND
2Q7
2Q8
2OE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
1CLK
1D1
1D2
GND
1D3
1D4
V
CC
1D5
1D6
GND
1D7
1D8
2D1
2D2
GND
2D3
2D4
V
CC
2D5
2D6
GND
2D7
2D8
2CLK

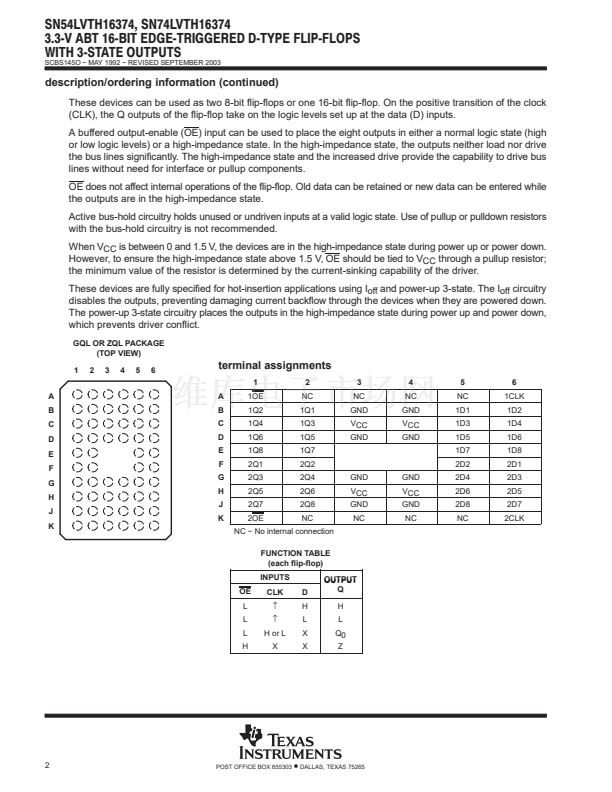

description/ordering information
The 鈥橪VTH16374 devices are 16-bit edge-triggered D-type flip-flops with 3-state outputs designed for
low-voltage (3.3-V) V
CC
operation, but with the capability to provide a TTL interface to a 5-V system
environment. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional
bus drivers, and working registers.
ORDERING INFORMATION
TA
SSOP 鈭?DL
鈭?0擄C to 85擄C
鈭?0 C 85 C
TSSOP 鈭?DGG
VFBGA 鈭?GQL
VFBGA 鈭?ZQL (Pb-free)
鈭?5擄C to 125擄C
CFP 鈭?WD
Tape and reel
Tube
PACKAGE鈥?/div>
Tube
Tape and reel
Tape and reel
ORDERABLE
PART NUMBER
SN74LVTH16374DL
SN74LVTH16374DLR
SN74LVTH16374DGGR
SN74LVTH16374GQLR
SN74LVTH16374ZQLR
SNJ54LVTH16374WD
LL374
SNJ54LVTH16374WD
LVTH16374
LVTH16374
TOP-SIDE
MARKING
鈥?Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Widebus is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
On products compliant to MIL PRF 38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
Copyright
錚?/div>
2003, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1
