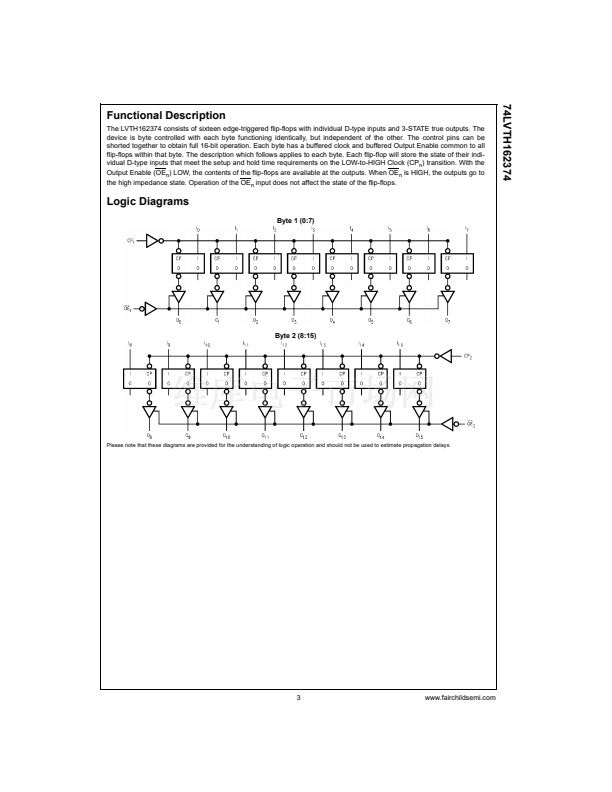

ented applications. The device is byte controlled. A buff-
tion.
鈩?/div>
series
resistance in both the HIGH and LOW states of the output.
This design reduces line noise in applications such as
memory address drivers, clock drivers, and bus transceiv-
ers/transmitters.
The LVTH162374 data inputs include bushold, eliminating
the need for external pull-up resistors to hold unused
inputs.
These flip-flops are designed for low-voltage (3.3V) V
CC
applications, but with the capability to provide a TTL inter-
face to a 5V environment. The LVTH162374 is fabricated
with an advanced BiCMOS technology to achieve high
speed operation similar to 5V ABT while maintaining a low
power dissipation.
Features
s
Input and output interface capability to systems at
5V V
CC
s
Bushold data inputs eliminate the need for external
pull-up resistors to hold unused inputs
s
Live insertion/extraction permitted
s
Power Up/Power Down high impedance provides
glitch-free bus loading
s
Outputs include equivalent series resistance of 25
鈩?/div>
to
make external termination resistors unnecessary and
reduce overshoot and undershoot
s
Functionally compatible with the 74 series 16374
s
Latch-up performance exceeds 500 mA
s
ESD performance:
Human-body model
>
2000V
Machine model
>
200V
Charged-device model
>
1000V
s
Also packaged in plastic Fine-Pitch Ball Grid Array
(FBGA) (Preliminary)
Ordering Code:
Order Number
74LVTH162374GX
(Note 1)
74LVTH162374MEA
74LVTH162374MEX
74LVTH162374MTD
74LVTH162374MTX
Package
Number
BGA54A
(Preliminary)
MS48A
MS48A
MTD48
MTD48
Package Description
54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide
[TAPE and REEL]
48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide
[TUBES]
48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide
[TAPE and REEL]
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
[TUBES]
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
[TAPE and REEL]
Note 1:
BGA package available in Tape and Reel only.
漏 2001 Fairchild Semiconductor Corporation
DS500355

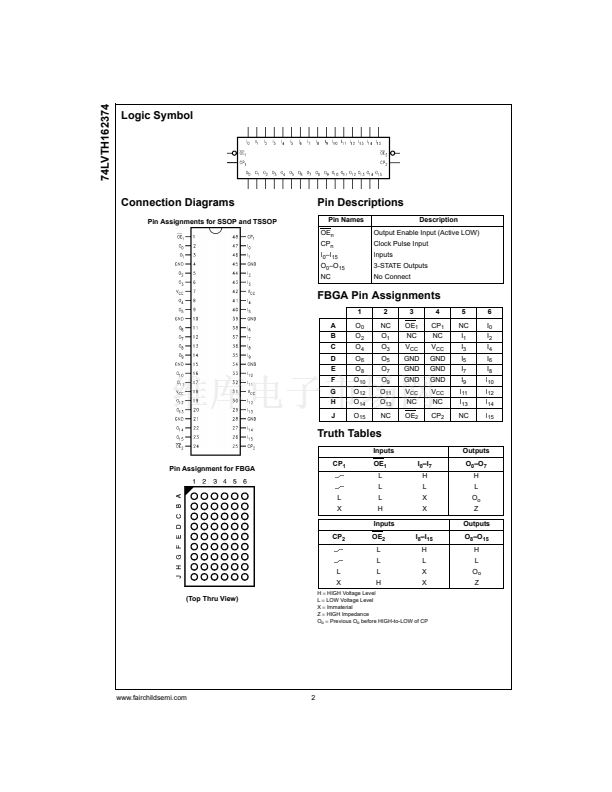

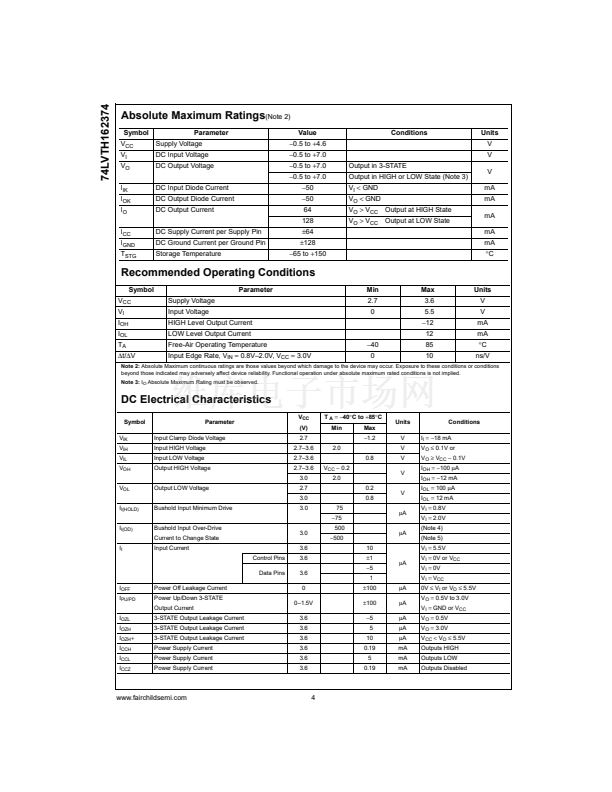

www.fairchildsemi.com
