74LVQ299 Datasheet

  • 74LVQ299

  • 8 BIT PIPO SHIFT REGISTER WITH ASYNCHRONOUS CLEAR

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74LVQ299
8 BIT PIPO SHIFT REGISTER
WITH ASYNCHRONOUS CLEAR
s
s
s
s
s
s
s
s
s
s
s
HIGH SPEED:
t
PD
= 8.3 ns (TYP.) at V
CC
= 3.3 V
COMPATIBLE WITH TTL OUTPUTS
LOW POWER DISSIPATION:
I
CC
= 4
碌A(chǔ)
(MAX.) at T
A
=25擄C
LOW NOISE:
V
OLP
= 0.5V (TYP.) at V
CC
= 3.3V
75鈩?TRANSMISSION LINE DRIVING
CAPABILITY
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 12mA (MIN) at V
CC
= 3.0 V
PCI BUS LEVELS GUARANTEED AT 24 mA
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 3.6V (1.2V Data Retention)
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 299
IMPROVED LATCH-UP IMMUNITY
SOP
TSSOP
ORDER CODES
PACKAGE
SOP
TSSOP
TUBE
74LVQ299M
T&R
74LVQ299MTR
74LVQ299TTR
DESCRIPTION
The 74LVQ299 is a low voltage CMOS 8 BIT
PIPO SHIFT REGISTER (3-STATE) fabricated
with sub-micron silicon gate and double-layer
metal wiring C
2
MOS technology. It is ideal for low
power and low noise 3.3V applications.

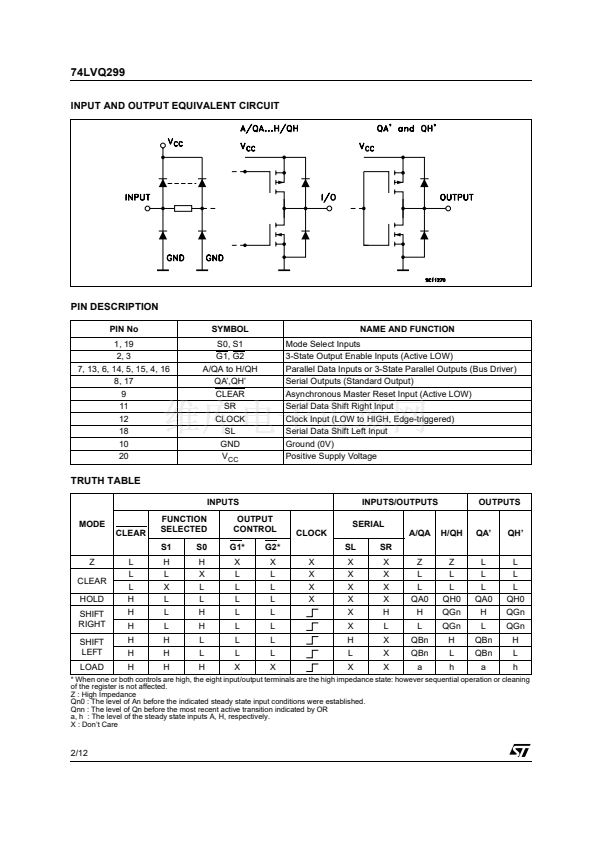

PIN CONNECTION AND IEC LOGIC SYMBOLS
These devices have four modes (HOLD, SHIFT
LEFT, SHIFT RIGHT and LOAD DATA). Each
mode is chosen by two function select inputs (S0,
S1) as shown in the Truth Table.
When one or both enable inputs, (G1, G2) are
high, the eight input/output terminals are in the
high impedance state; however sequential
operation or clearing of the register is not affected.
Clear function is asynchronous to clock.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
July 2001
1/12
