74LVC32AM Datasheet

  • 74LVC32AM

  • LOGIC GATE|QUAD 2-INPUT OR|LVC-CMOS|SOP|14PIN|PLASTIC

  • 61.37KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74LVC32A
LOW VOLTAGE CMOS QUAD 2-INPUT OR GATE
HIGH PERFORMANCE
s
s
s
s
s
s
s
s
s
s
5V TOLERANT INPUTS
HIGH SPEED: t
PD
= 4.2ns (MAX.) at V
CC
= 3V
POWER DOWN PROTECTION ON INPUTS
AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN) at V
CC
= 3V
PCI BUS LEVELS GUARANTEED AT 24 mA
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 1.65V to 3.6V (1.2V Data
Retention)
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 32
LATCH-UP PERFORMANCE EXCEEDS
500mA (JESD 17)
ESD PERFORMANCE:
HBM > 2000V (MIL STD 883 method 3015);
MM > 200V
SOP
TSSOP
ORDER CODES
PACKAGE
SOP
TSSOP
TUBE
74LVC32AM
T&R
74LVC32AMTR
74LVC32ATTR
DESCRIPTION
The 74LVC32A is a low voltage CMOS QUAD
2-INPUT OR GATE fabricated with sub-micron
silicon gate and double-layer metal wiring C
2
MOS
technology. It is ideal for 1.65 to 3.6 V
CC
operations and low power and low noise
applications.
It can be interfaced to 5V signal environment for
inputs in mixed 3.3/5V system.
It has more speed performance at 3.3V than 5V
AC/ACT family, combined with a lower power
consumption.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
PIN CONNECTION AND IEC LOGIC SYMBOLS
February 2002

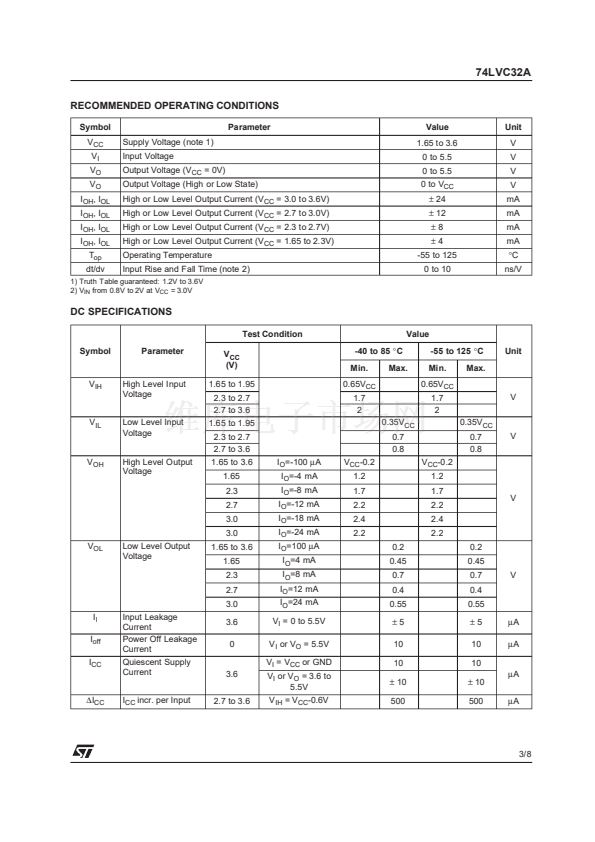

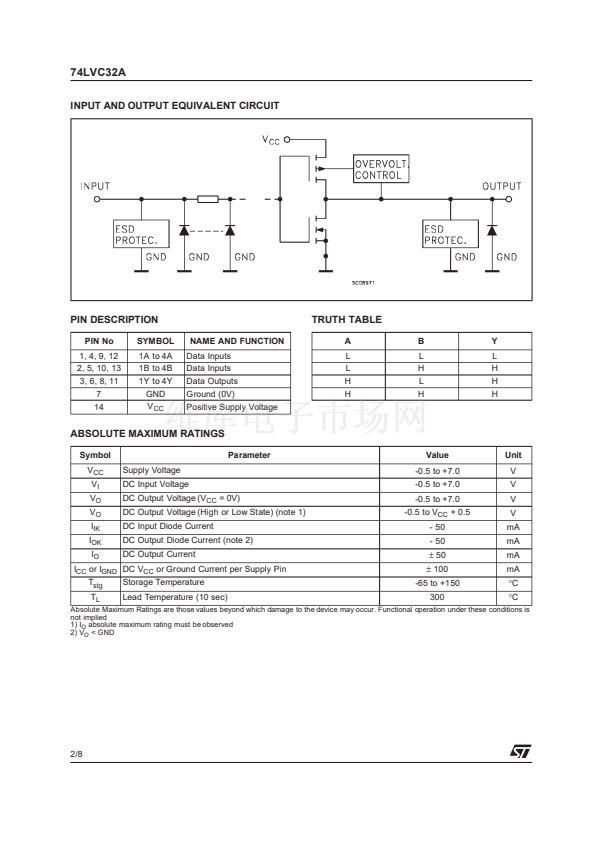

1/8
