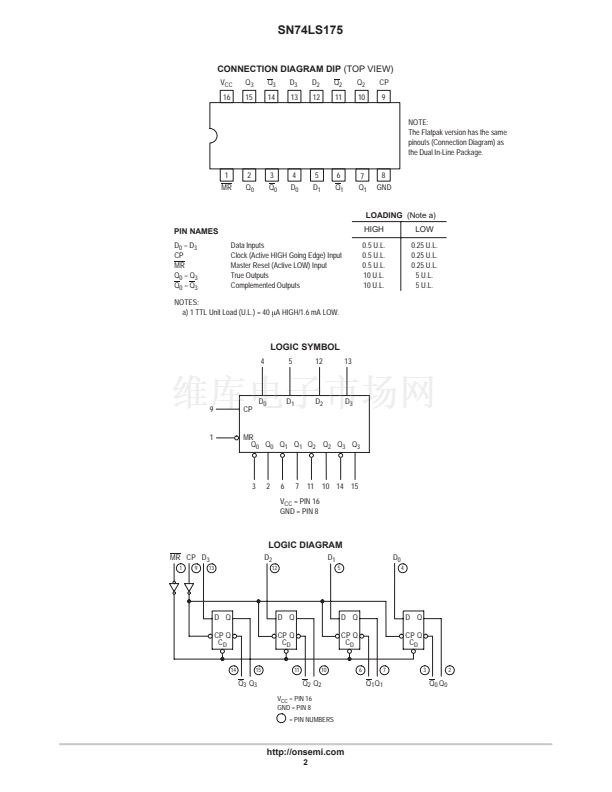

SN74LS175
Quad D Flip-Flop
The LSTTL / MSI SN74LS175 is a high speed Quad D Flip-Flop.
The device is useful for general flip-flop requirements where clock
and clear inputs are common. The information on the D inputs is
stored during the LOW to HIGH clock transition. Both true and
complemented outputs of each flip-flop are provided. A Master Reset
input resets all flip-flops, independent of the Clock or D inputs, when
LOW.
The LS175 is fabricated with the Schottky barrier diode process for
high speed and is completely compatible with all ON Semiconductor
TTL families.
http://onsemi.com
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
LOW
POWER
SCHOTTKY
Edge-Triggered D-Type Inputs
Buffered-Positive Edge-Triggered Clock
Clock to Output Delays of 30 ns
Asynchronous Common Reset
True and Complement Output
Input Clamp Diodes Limit High Speed Termination Effects
16
1
GUARANTEED OPERATING RANGES
Symbol
V
CC
T
A
I
OH
I
OL
Parameter
Supply Voltage
Operating Ambient
Temperature Range
Output Current 鈥?High
Output Current 鈥?Low
Min
4.75
0
Typ
5.0
25
Max
5.25
70
鈥?0.4
8.0
Unit
V
擄C
mA
mA
PLASTIC
N SUFFIX
CASE 648
16
1
SOIC
D SUFFIX
CASE 751B
ORDERING INFORMATION
Device
SN74LS175N
SN74LS175D
Package
16 Pin DIP
16 Pin
Shipping
2000 Units/Box
2500/Tape & Reel
漏
Semiconductor Components Industries, LLC, 1999
1
December, 1999 鈥?Rev. 6
Publication Order Number:
SN74LS175/D
