74LCX241MSAX Datasheet

  • 74LCX241MSAX

  • Low Voltage Octal Buffer/Line Driver with 5V Tolerant Inputs...

  • 10頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

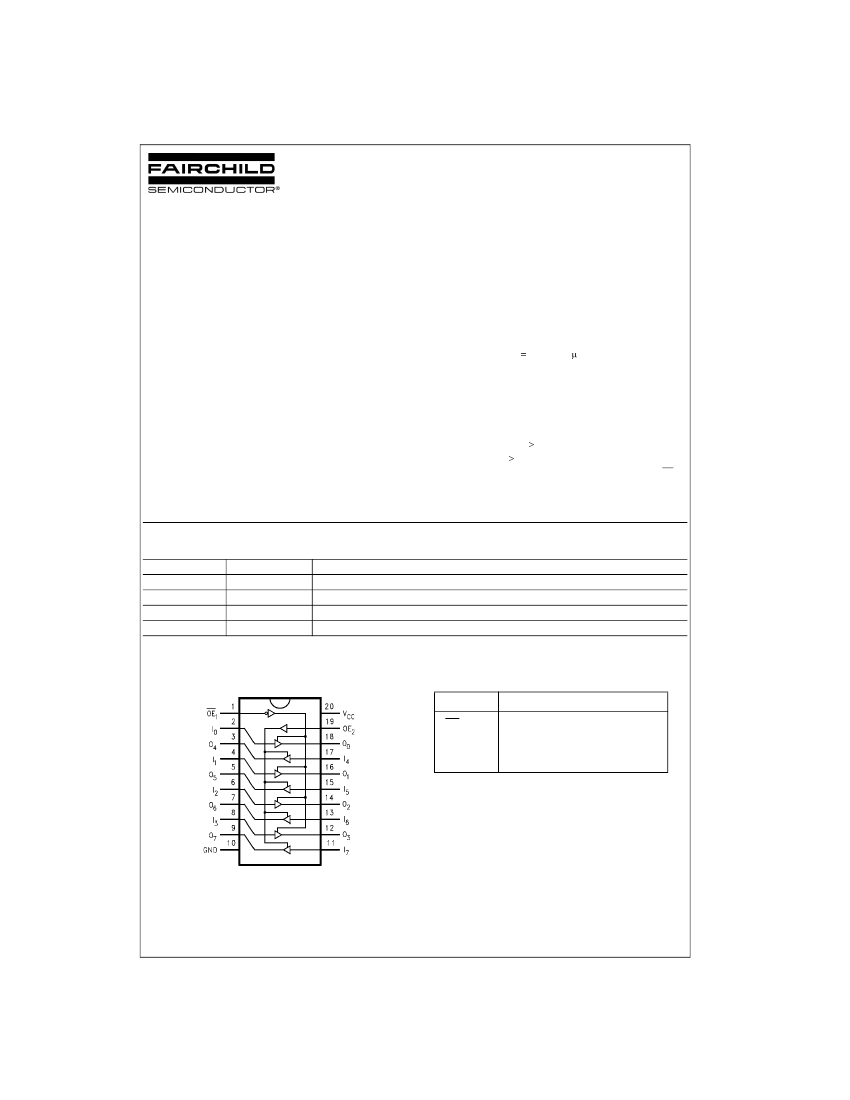

74LCX241 Low Voltage Octal Buffer/Line Driver with 5V Tolerant Inputs and Outputs
August 1998
Revised March 2005
74LCX241
Low Voltage Octal Buffer/Line Driver with
5V Tolerant Inputs and Outputs
General Description
The LCX241 is an octal buffer and line driver designed to
be employed as a memory address driver, clock driver and
bus oriented transmitter or receiver. The device is designed
for low voltage (2.5V or 3.3V) V
CC
applications with capa-
bility of interfacing to a 5V signal environment.
The LCX241 is fabricated with an advanced CMOS tech-
nology to achieve high speed operation while maintaining
CMOS low power dissipation.
Features
s
5V tolerant inputs and outputs
s
2.3V 鈥?3.6V V
CC
specifications provided
s
6.5 ns t
PD
max (V
CC
3.3V), 10
P
A I
CC
max
s
Power-down high impedance inputs and outputs
s
Supports live insertion/withdrawal (Note 1)
s
Implements patented noise/EMI reduction circuitry
s
Latch-up performance exceeds 500 mA
s
ESD performance:
Human Body Model
!
2000V
Machine Model
!
200V
Note 1:
To ensure the high-impedance state during power up or down, OE
should be tied to V
CC
and OE should be tied to GND through a resistor: the
minimum value or the resistor is determined by the current-sourcing capa-
bility of the driver.
Ordering Code:
Order Number
74LCX241WM
74LCX241SJ
74LCX241MSA
74LCX241MTC
Package Number
M20B
M20D
MSA20
MTC20
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
Pb-Free 20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Shrink Small Outline Package (SSOP), JEDEC MO-150, 5.3mm Wide
20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Pb-Free package per JEDEC J-STD-020B.
Connection Diagram
Pin Descriptions
Pin Names
OE
1
, OE
2
I
0
鈥揑
7
O
0
鈥揙
7
Description
3-STATE Output Enable Inputs
Inputs
Outputs
漏 2005 Fairchild Semiconductor Corporation
DS012639
www.fairchildsemi.com

74LCX241MSAX 產品屬性

  • 2,000

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74LCX

  • 緩沖器/線路驅動器，非反相

  • 1

  • 8

  • 24mA，24mA

  • 2 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 20-SSOP（0.209"，5.30mm 寬）

  • 20-SSOP

  • 帶卷 (TR)
