74LCX16541TTR Datasheet

  • 74LCX16541TTR

  • Buffer/Driver

  • 65.31KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74LCX16541
LOW VOLTAGE CMOS 16-BIT BUS BUFFER (3-STATE)
WITH 5V TOLERANT INPUTS/OUTPUTS (NON INVERTED)
s
s
s
s
s
s
s
s
s
s
s
5V TOLERANT INPUTS AND OUTPUTS
HIGH SPEED:
t
PD
= 4.1 ns (MAX.) at V
CC
= 5V
LOW POWER DISSIPATION:
I
CC
= 2
碌A(chǔ)
(MAX.) at T
A
=25擄C
HIGH NOISE IMMUNITY:
V
NIH
= V
NIL
= 28% V
CC
(MIN.)
POWER DOWN PROTECTION ON INPUTS
AND OUPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24 mA (MIN)

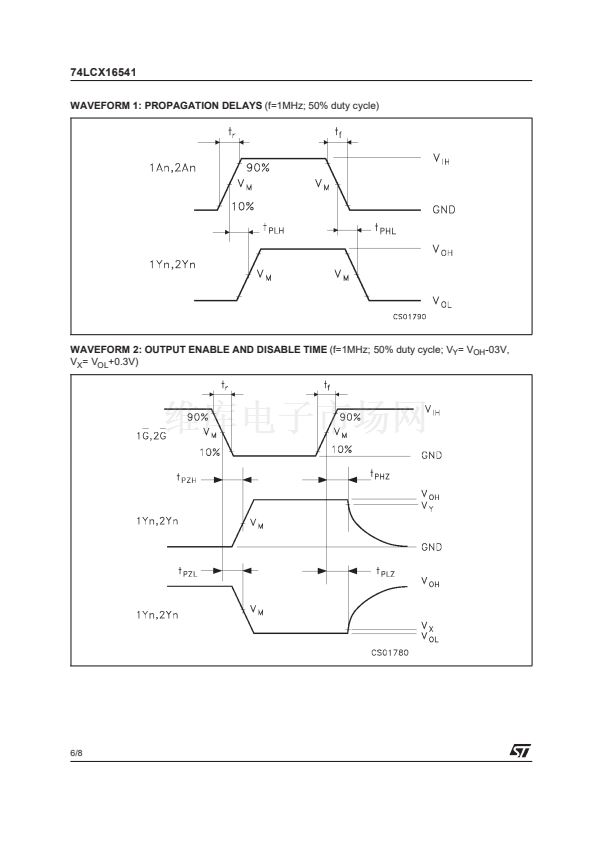

BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 3.6V (1.5V Data Retention)
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 16541
IMPROVED LATCH-UP IMMUNITY
ESD PERFORMANCE:
HBM>2000V(MIL STD 883 method 3015);
MM>200V

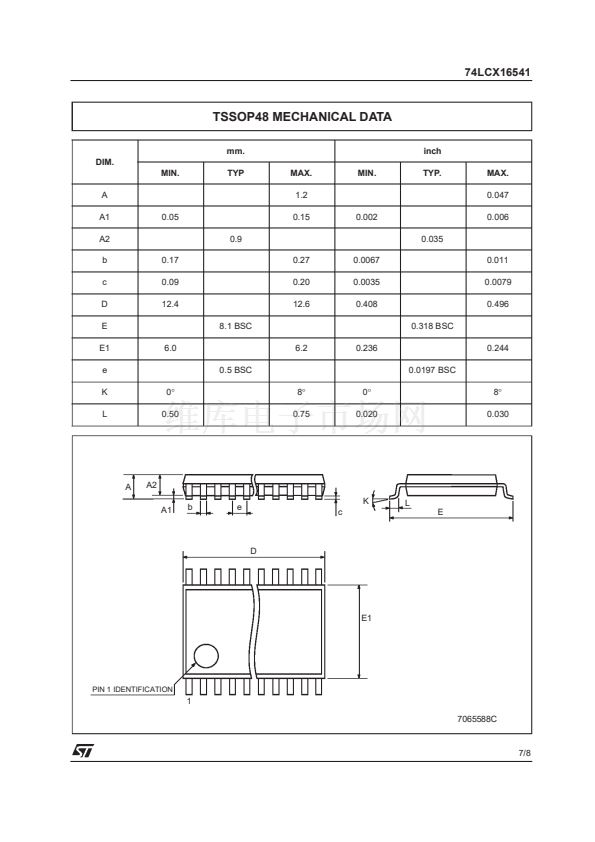

TSSOP
ORDER CODES
PACKAGE
TSSOP
TUBE
T&R
74LCX16541TTR
PIN CONNECTION
DESCRIPTION
The 74LCX16541 is an advanced high-speed
CMOS 16-BIT BUS BUFFER (3-STATE) fabricat-
ed with sub-micron silicon gate and double-layer
metal wiring C
2
MOS tecnology.
This is composed of two 8-bit sections with
separate output-enable signals. For either 8-bit
buffers section, the 3 STATE control gate
operates as a two input AND such that if either
nG1 and nG2 are high, all outputs are in the high
impedence state. This device is designed to be
used with 3 state memory address driveres, etc.
It hase same speed performance at 3.3V than 5V
AC/ACT family, combined with a lower power con-
sumption.
All inputs and outputs are equipped with protec-
tion circuits against static discharge, giving them
2KV ESD immunity and transient excess voltage.
October 2002
1/8

74LCX16541TTR 產品屬性

  • 2,000

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74LCX

  • 緩沖器/線路驅動器，非反相

  • 2

  • 8

  • 24mA，24mA

  • 2 V ~ 3.6 V

  • -55°C ~ 125°C

  • 表面貼裝

  • 48-TFSOP（0.240"，6.10mm 寬）

  • 48-TSSOP

  • 帶卷 (TR)

  • 497-1060-2
