74F533SJ Datasheet

  • 74F533SJ

  • Octal Transparent Latch with TRI-STATE Outputs

  • 168.91KB

  • 8頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

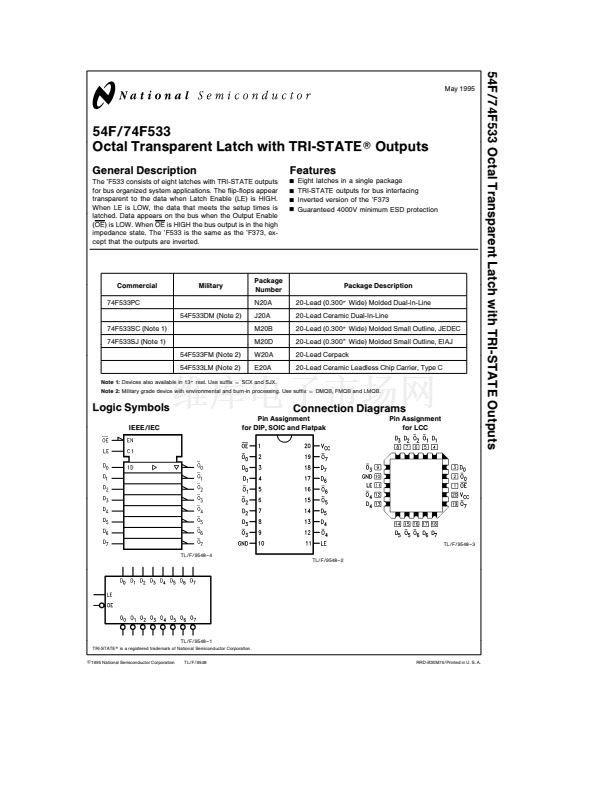

54F 74F533 Octal Transparent Latch with TRI-STATE Outputs
May 1995
54F 74F533
Octal Transparent Latch with TRI-STATE Outputs
General Description
The 鈥橣533 consists of eight latches with TRI-STATE outputs
for bus organized system applications The flip-flops appear
transparent to the data when Latch Enable (LE) is HIGH
When LE is LOW the data that meets the setup times is
latched Data appears on the bus when the Output Enable
(OE) is LOW When OE is HIGH the bus output is in the high
impedance state The 鈥橣533 is the same as the 鈥橣373 ex-
cept that the outputs are inverted
Features
Y
Y
Y
Y
Eight latches in a single package
TRI-STATE outputs for bus interfacing
Inverted version of the 鈥橣373
Guaranteed 4000V minimum ESD protection
Commercial
74F533PC
Military
Package
Number
N20A
Package Description

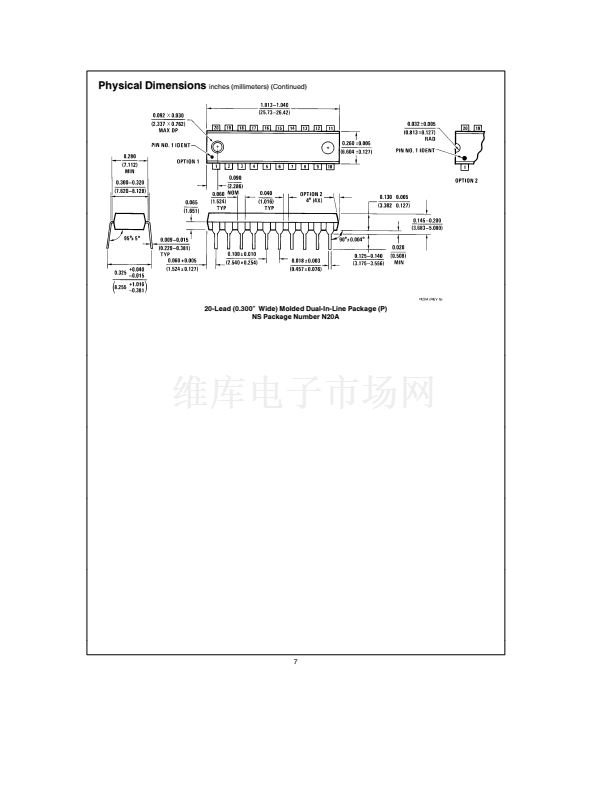

20-Lead (0 300 Wide) Molded Dual-In-Line
20-Lead Ceramic Dual-In-Line

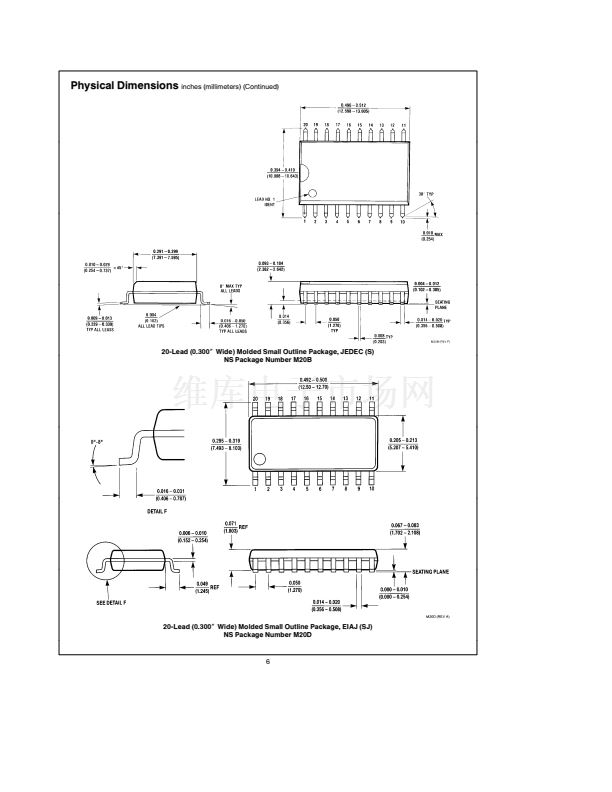

20-Lead (0 300 Wide) Molded Small Outline JEDEC
20-Lead (0 300 Wide) Molded Small Outline EIAJ

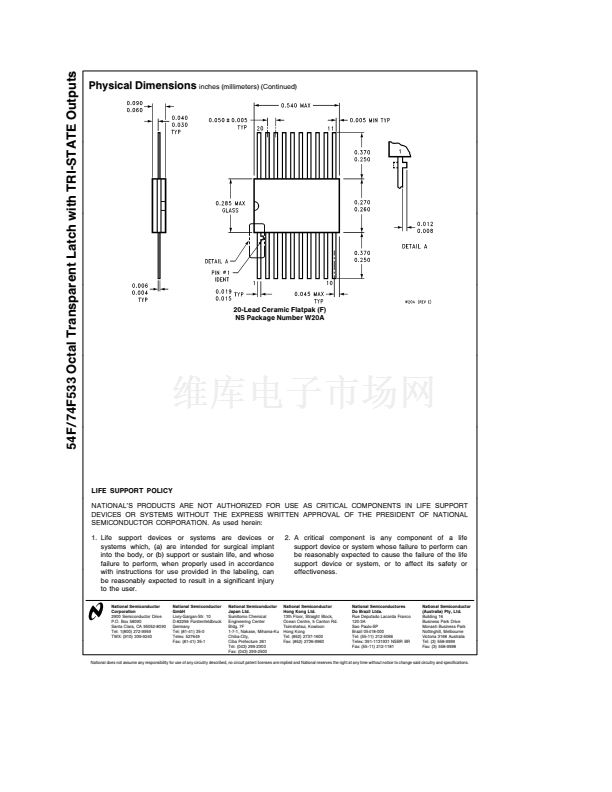

20-Lead Cerpack

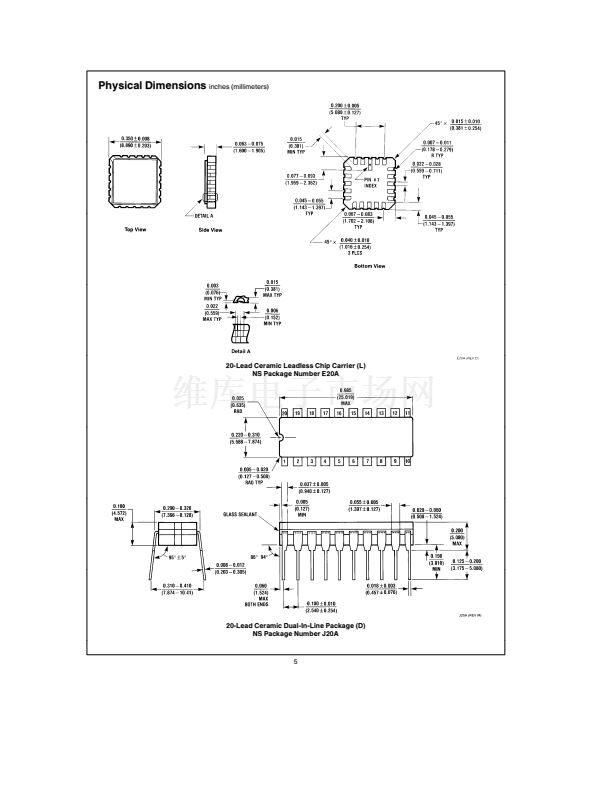

20-Lead Ceramic Leadless Chip Carrier Type C
54F533DM (Note 2)
74F533SC (Note 1)
74F533SJ (Note 1)
54F533FM (Note 2)
54F533LM (Note 2)
J20A
M20B
M20D
W20A
E20A
Note 1
Devices also available in 13 reel Use suffix
e
SCX and SJX
Note 2
Military grade device with environmental and burn-in processing Use suffix
e
DMQB FMQB and LMQB
Logic Symbols
IEEE IEC
Connection Diagrams
Pin Assignment
for DIP SOIC and Flatpak
Pin Assignment
for LCC
TL F 9548 鈥?3
TL F 9548鈥?
TL F 9548 鈥?2
TL F 9548鈥?
TRI-STATE is a registered trademark of National Semiconductor Corporation
C
1995 National Semiconductor Corporation
TL F 9548
RRD-B30M75 Printed in U S A

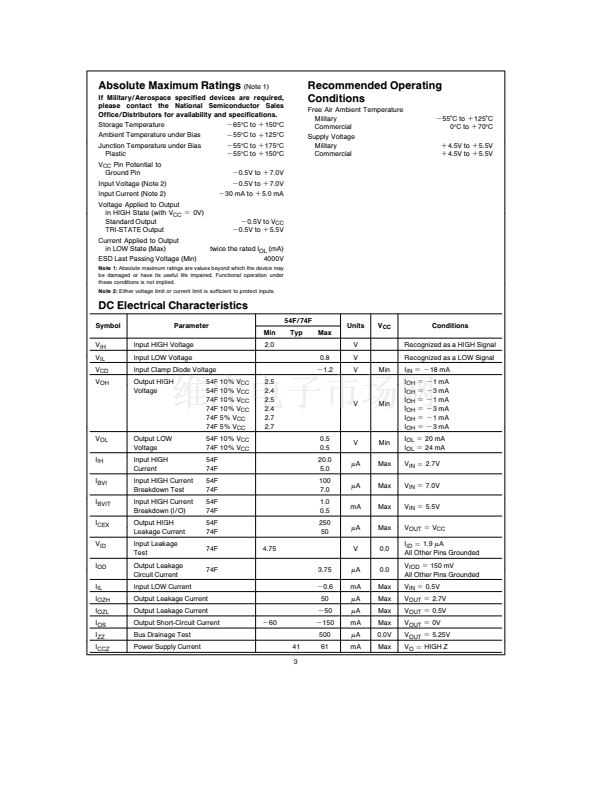

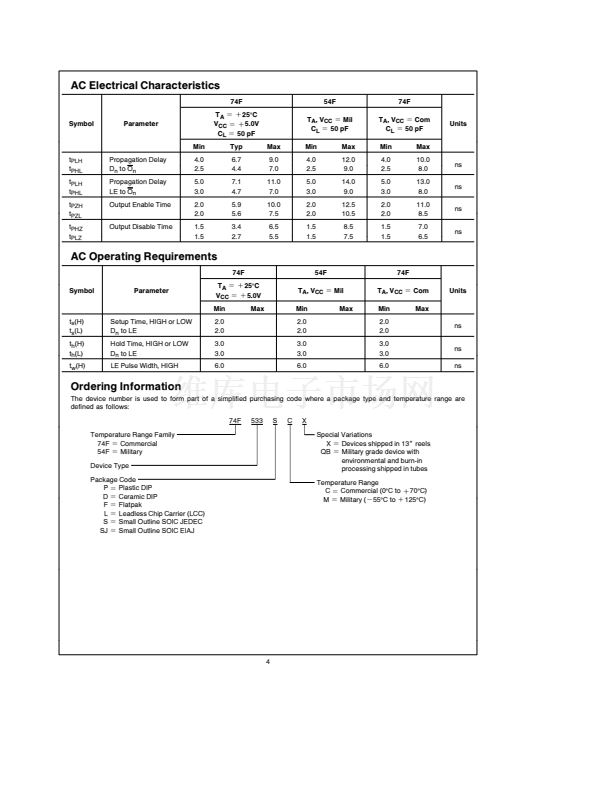

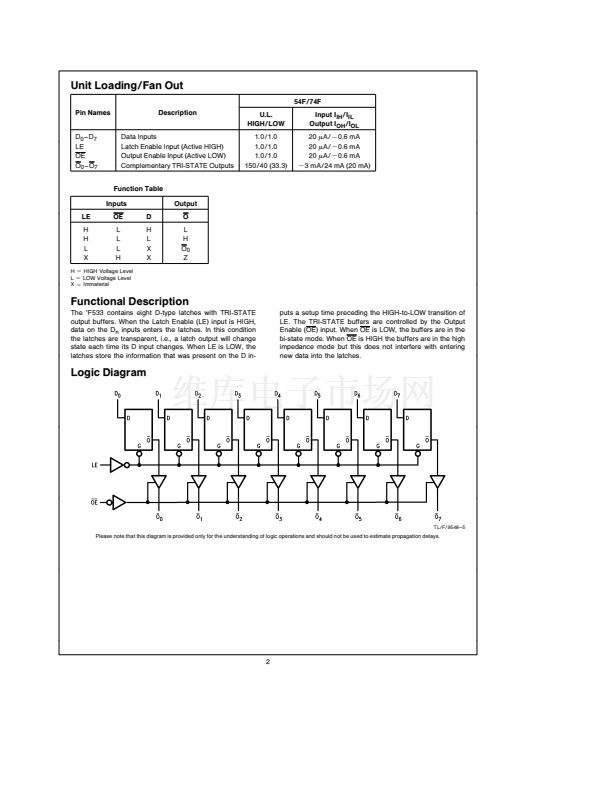

74F533SJ 產品屬性

  • 38

  • 集成電路 (IC)

  • 邏輯 - 鎖銷

  • 74F

  • D 型透明鎖存器

  • 8:8

  • 三態

  • 4.5 V ~ 5.5 V

  • 1

  • 6.7ns

  • 3mA，24mA

  • 0°C ~ 70°C

  • 表面貼裝

  • 20-SOIC（0.209"，5.30mm 寬）

  • 20-SOIC

  • 管件
