74F373 Octal Transparent Latch with 3-STATE Outputs

May 1988

Revised August 1999

74F373

Octal Transparent Latch with 3-STATE Outputs

General Description

The 74F373 consists of eight latches with 3-STATE outputs

for bus organized system applications. The flip-flops

appear transparent to the data when Latch Enable (LE) is

HIGH. When LE is LOW, the data that meets the setup

times is latched. Data appears on the bus when the Output

Enable (OE) is LOW. When OE is HIGH the bus output is in

the high impedance state.

Features

s

Eight latches in a single package

s

3-STATE outputs for bus interfacing

s

Guaranteed 4000V minimum ESD protection

Ordering Code:

Order Number

74F373SC

74F373SJ

74F373MSA

74F373PC

Package Number

M20B

M20D

MSA20

N20A

Package Description

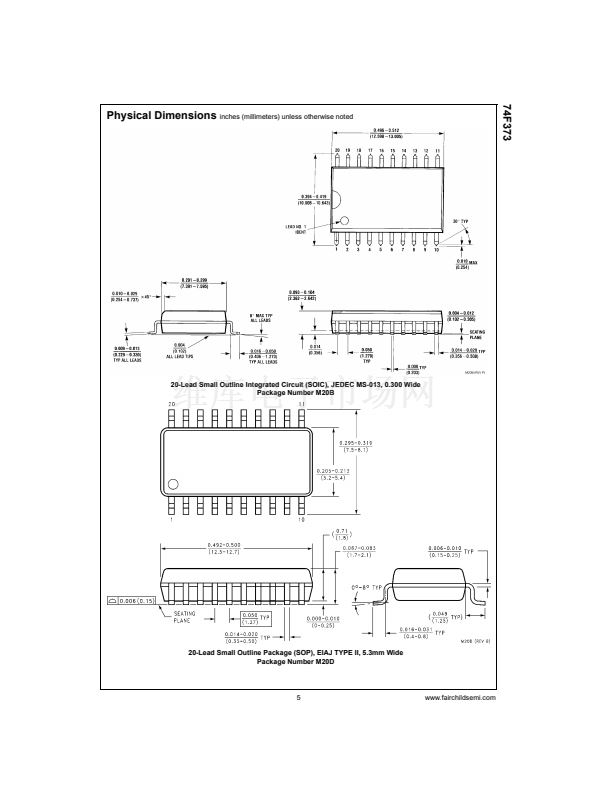

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

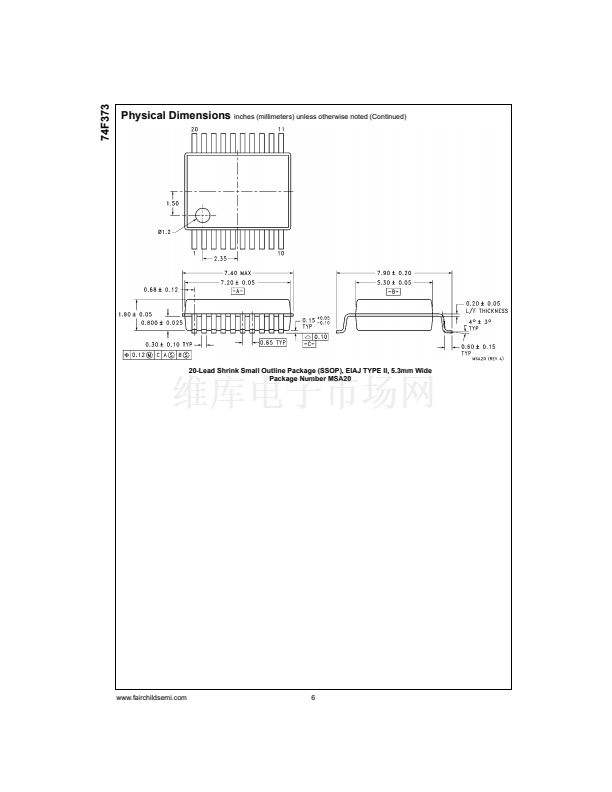

20-Lead Shrink Small Outline Package (SSOP), EIAJ TYPE II, 5.3mm Wide

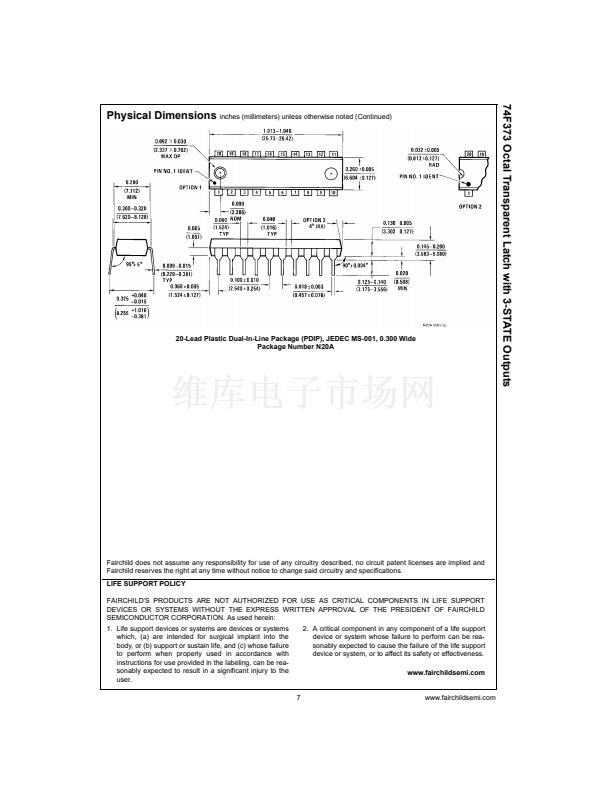

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.

Logic Symbols

Connection Diagram

IEEE/IEC

漏 1999 Fairchild Semiconductor Corporation

DS009523

www.fairchildsemi.com
