74F280SJ Datasheet

IC型號：
74F280SJ
PDF描述：
9-Bit Parity Generator/Checker
文件大?。?/label>
155.12KB
PDF頁數：
8頁
芯片廠家：
NSC

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

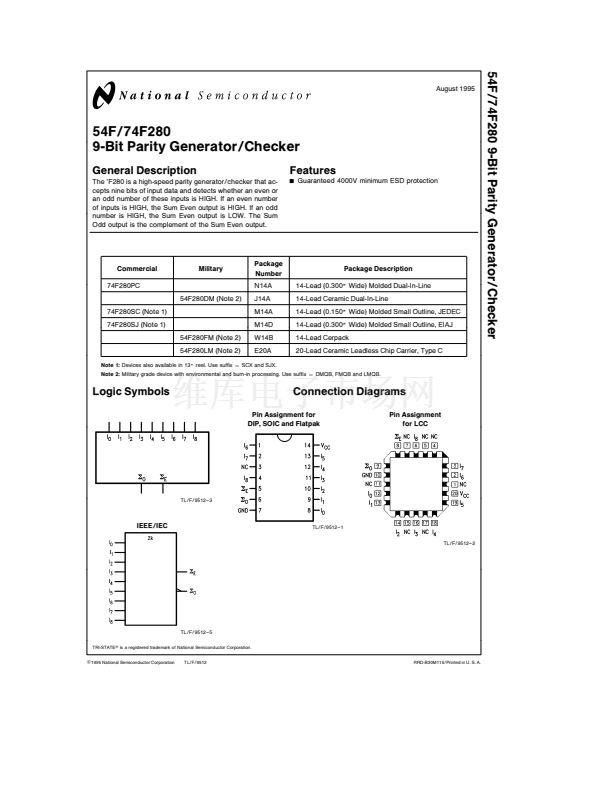

54F 74F280 9-Bit Parity Generator Checker

August 1995

54F 74F280

9-Bit Parity Generator Checker

General Description

The 鈥橣280 is a high-speed parity generator checker that ac-

cepts nine bits of input data and detects whether an even or

an odd number of these inputs is HIGH If an even number

of inputs is HIGH the Sum Even output is HIGH If an odd

number is HIGH the Sum Even output is LOW The Sum

Odd output is the complement of the Sum Even output

Features

Guaranteed 4000V minimum ESD protection

Commercial

74F280PC

Military

Package

Number

N14A

Package Description

14-Lead (0 300 Wide) Molded Dual-In-Line

14-Lead Ceramic Dual-In-Line

14-Lead (0 150 Wide) Molded Small Outline JEDEC

14-Lead (0 300 Wide) Molded Small Outline EIAJ

14-Lead Cerpack

20-Lead Ceramic Leadless Chip Carrier Type C

54F280DM (Note 2)

74F280SC (Note 1)

74F280SJ (Note 1)

54F280FM (Note 2)

54F280LM (Note 2)

J14A

M14A

M14D

W14B

E20A

Note 1

Devices also available in 13 reel Use suffix

SCX and SJX

Note 2

Military grade device with environmental and burn-in processing Use suffix

DMQB FMQB and LMQB

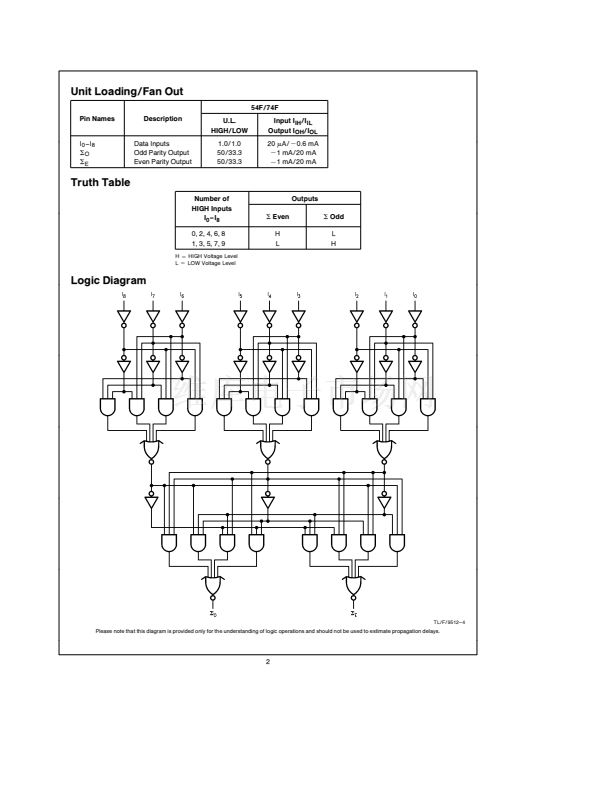

Logic Symbols

Connection Diagrams

Pin Assignment for

DIP SOIC and Flatpak

Pin Assignment

for LCC

TL F 9512鈥?

IEEE IEC

TL F 9512 鈥?1

TL F 9512 鈥?2

TL F 9512鈥?

TRI-STATE is a registered trademark of National Semiconductor Corporation

1995 National Semiconductor Corporation

TL F 9512

RRD-B30M115 Printed in U S A

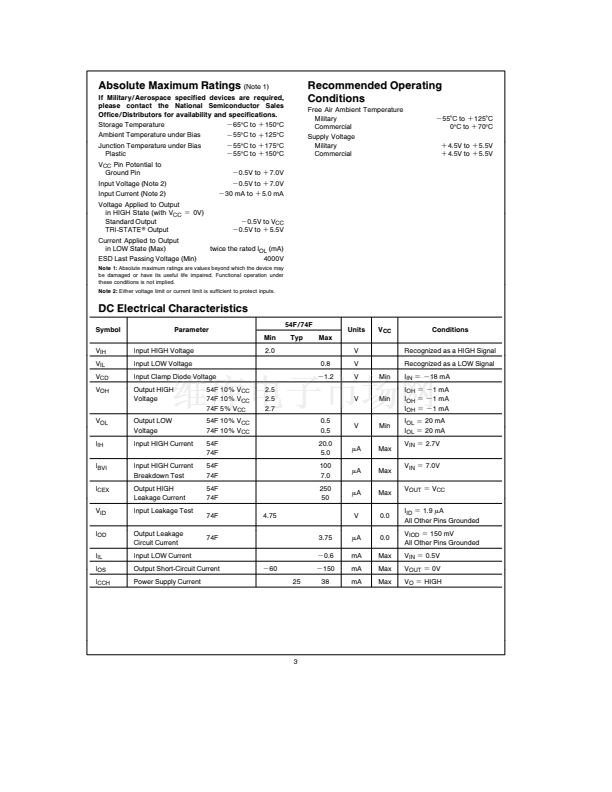

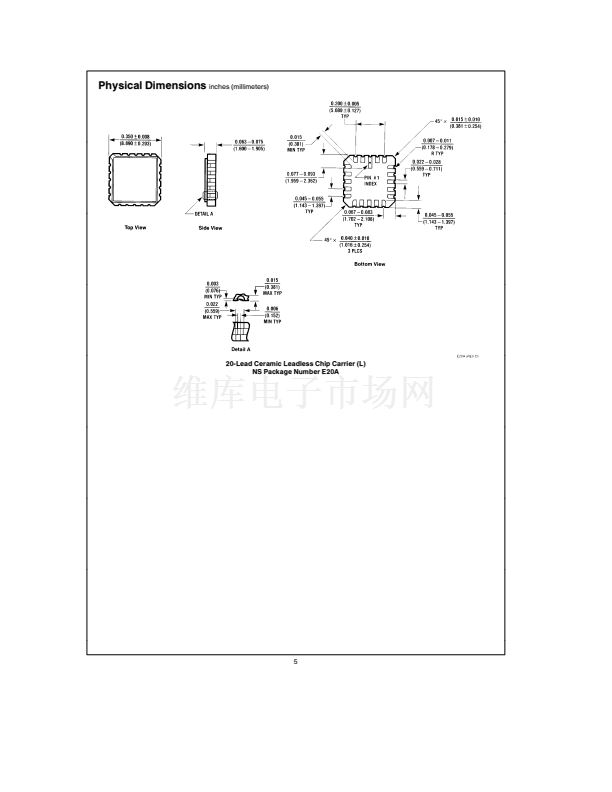

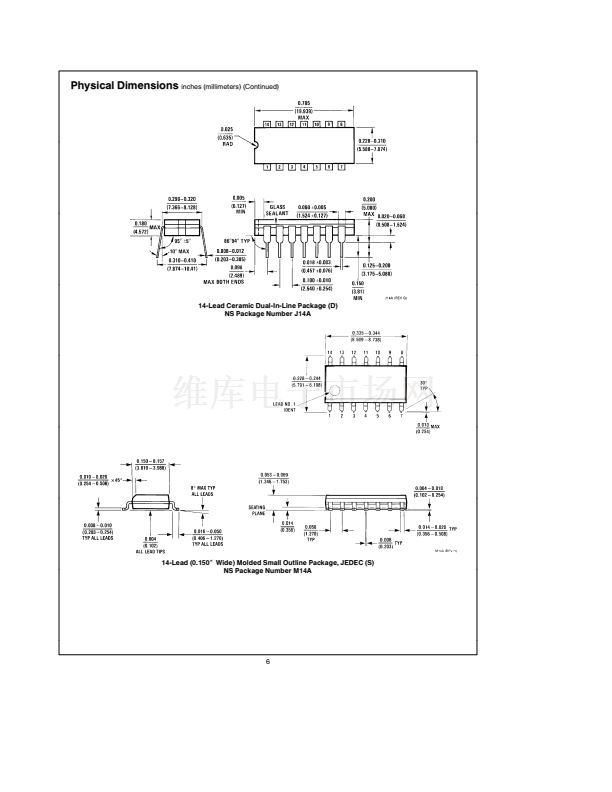

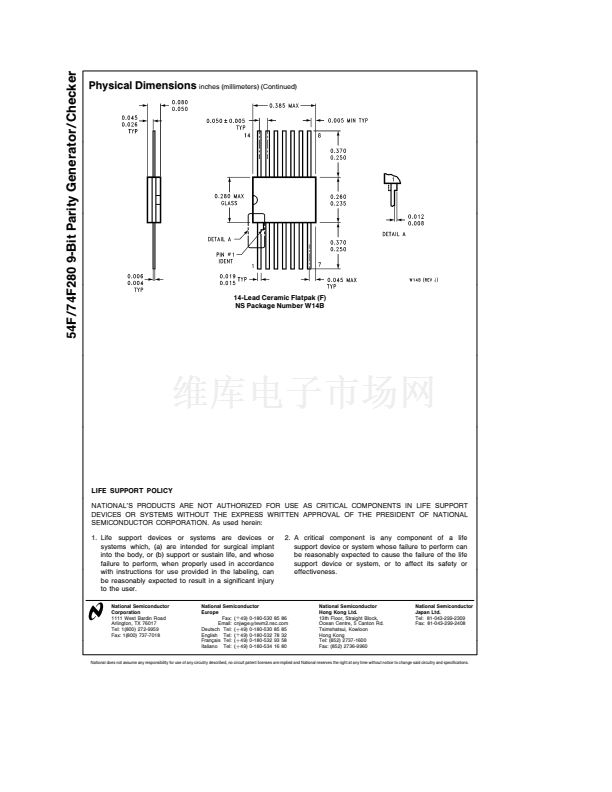

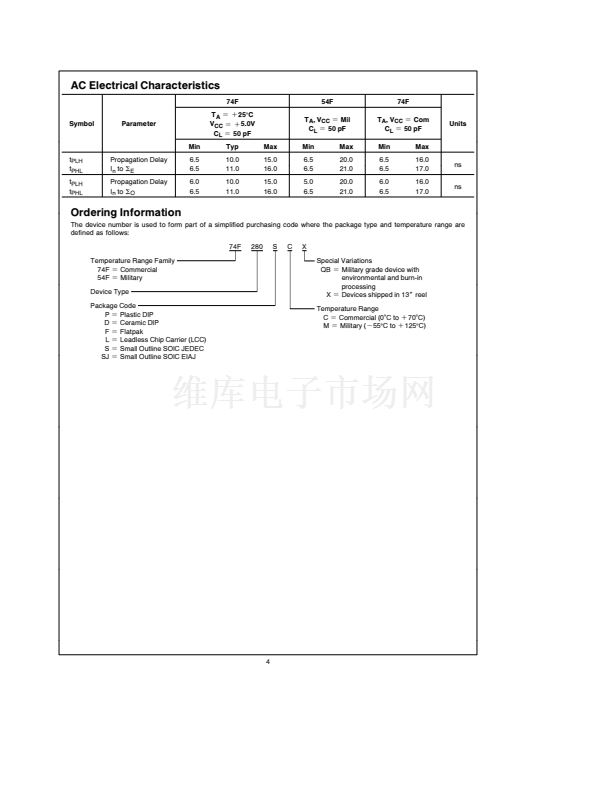

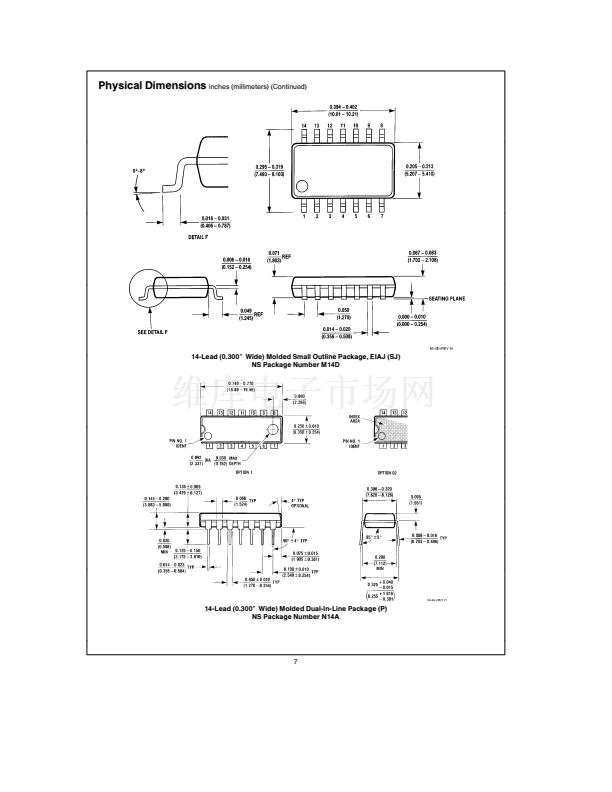

標準包裝
47
類別
集成電路 (IC)
家庭
邏輯 - 奇偶校驗發生器和校驗器
系列
74F
邏輯類型
奇偶校驗發生器/校驗器
電路數
9 位
輸出電流高，低
1mA，20mA
電源電壓
4.5 V ~ 5.5 V
工作溫度
0°C ~ 70°C
安裝類型
表面貼裝
封裝/外殼
14-SOIC（0.209"，5.30mm 寬）
供應商設備封裝
14-SOIC
