74F258APC Datasheet

  • 74F258APC

  • Quad 2-Input Multiplexer with TRI-STATE Outputs

  • 8頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

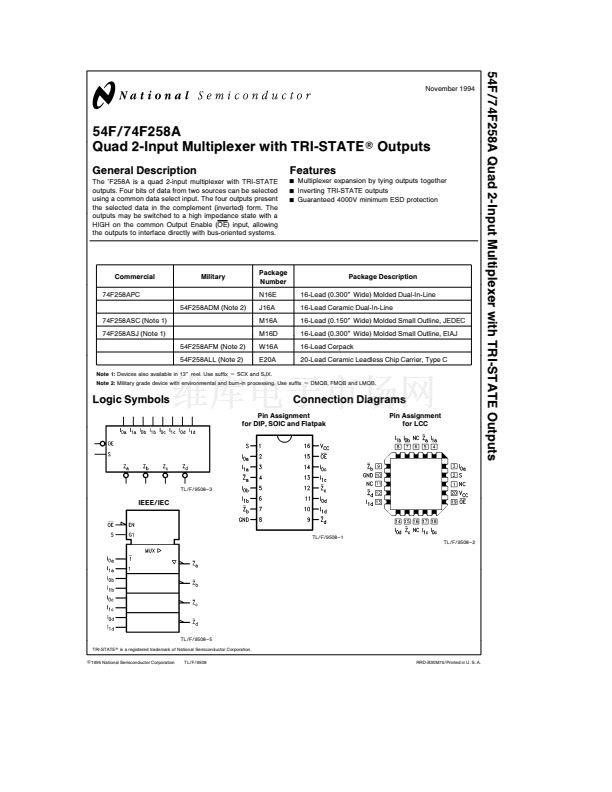

54F 74F258A Quad 2-Input Multiplexer with TRI-STATE Outputs
November 1994
54F 74F258A
Quad 2-Input Multiplexer with TRI-STATE Outputs
General Description
The 鈥橣258A is a quad 2-input multiplexer with TRI-STATE
outputs Four bits of data from two sources can be selected
using a common data select input The four outputs present
the selected data in the complement (inverted) form The
outputs may be switched to a high impedance state with a
HIGH on the common Output Enable (OE) input allowing
the outputs to interface directly with bus-oriented systems
Features
Y
Y
Y
Multiplexer expansion by tying outputs together
Inverting TRI-STATE outputs
Guaranteed 4000V minimum ESD protection
Commercial
74F258APC
Military
Package
Number
N16E
Package Description
16-Lead (0 300 Wide) Molded Dual-In-Line
16-Lead Ceramic Dual-In-Line
16-Lead (0 150 Wide) Molded Small Outline JEDEC
16-Lead (0 300 Wide) Molded Small Outline EIAJ
16-Lead Cerpack
20-Lead Ceramic Leadless Chip Carrier Type C
54F258ADM (Note 2)
74F258ASC (Note 1)
74F258ASJ (Note 1)
54F258AFM (Note 2)
54F258ALL (Note 2)
J16A
M16A
M16D
W16A
E20A
Note 1
Devices also available in 13 reel Use suffix
e
SCX and SJX
Note 2
Military grade device with environmental and burn-in processing Use suffix
e
DMQB FMQB and LMQB

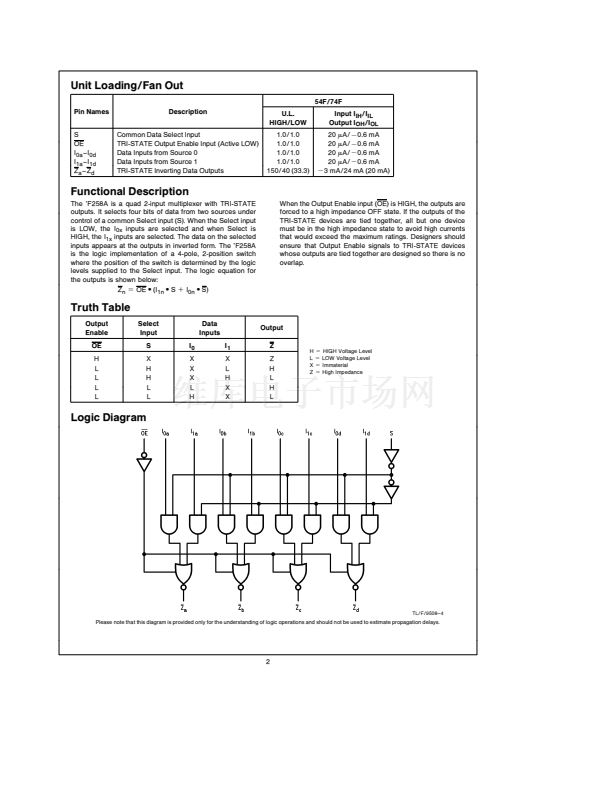

Logic Symbols
Connection Diagrams
Pin Assignment
for DIP SOIC and Flatpak
Pin Assignment
for LCC
TL F 9508鈥?
IEEE IEC
TL F 9508 鈥?1
TL F 9508 鈥?2
TL F 9508鈥?
TRI-STATE is a registered trademark of National Semiconductor Corporation
C
1995 National Semiconductor Corporation
TL F 9508
RRD-B30M75 Printed in U S A

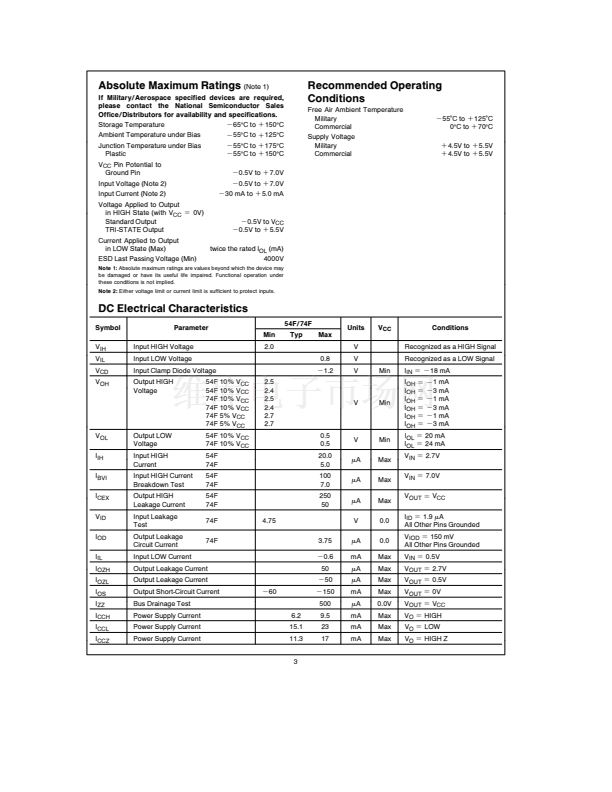

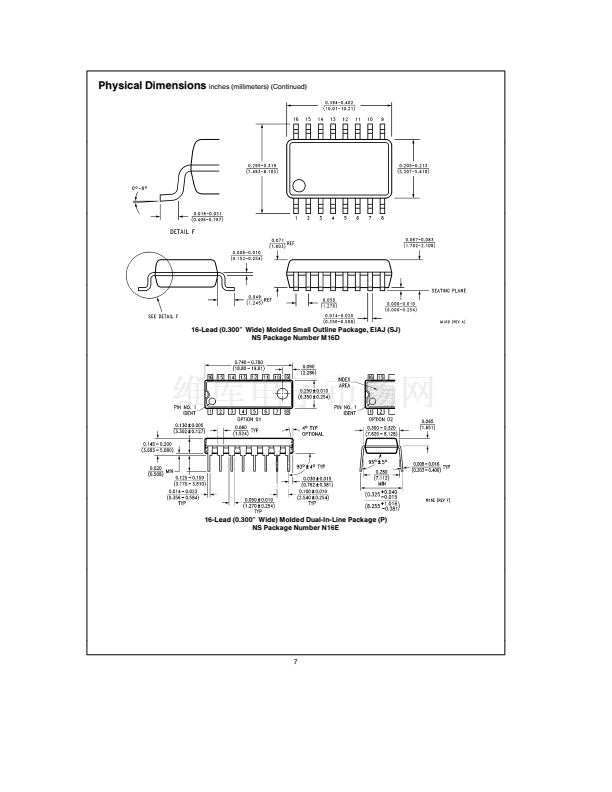

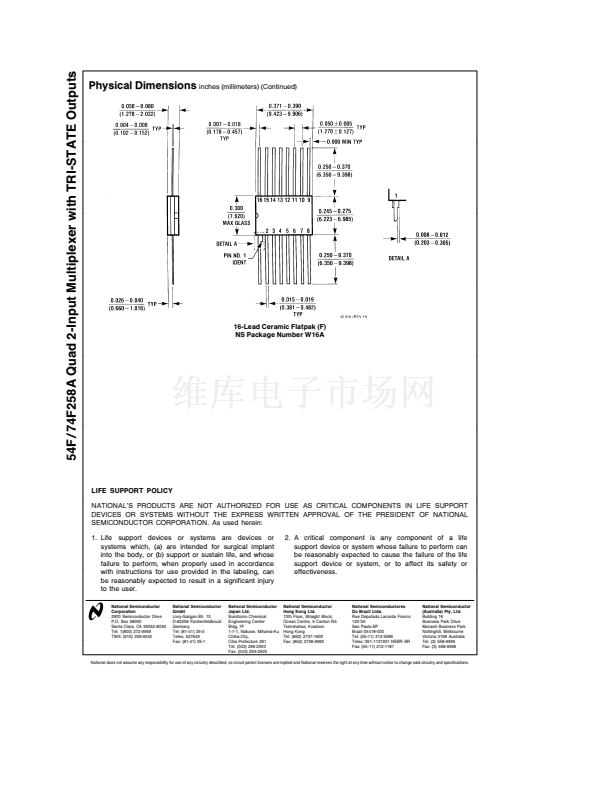

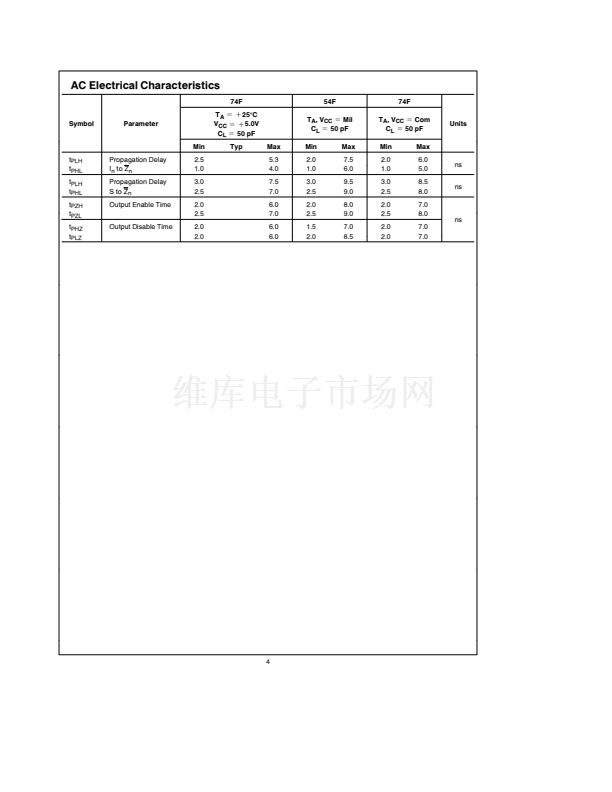

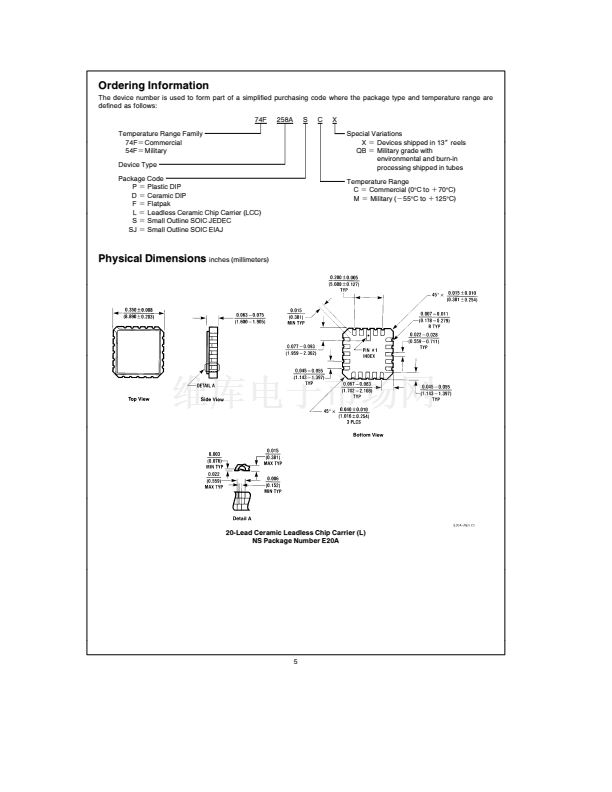

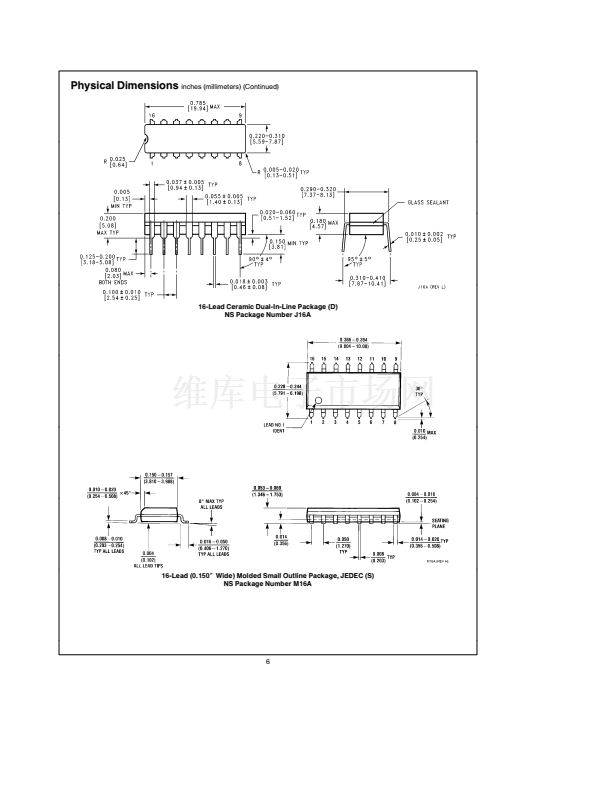

74F258APC 產品屬性

  • 25

  • 集成電路 (IC)

  • 邏輯 - 信號開關，多路復用器，解碼器

  • 74F

  • 多路復用器

  • 4 x 2:1

  • 1

  • 3mA，24mA

  • 單電源

  • 4.5 V ~ 5.5 V

  • 0°C ~ 70°C

  • 通孔

  • 16-DIP（0.300"，7.62mm）

  • 16-DIP

  • 管件

  • 74F25874F258PC
