74F253SJ Datasheet

  • 74F253SJ

  • Dual 4-Input Multiplexer with TRI-STATE Outputs

  • 8頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

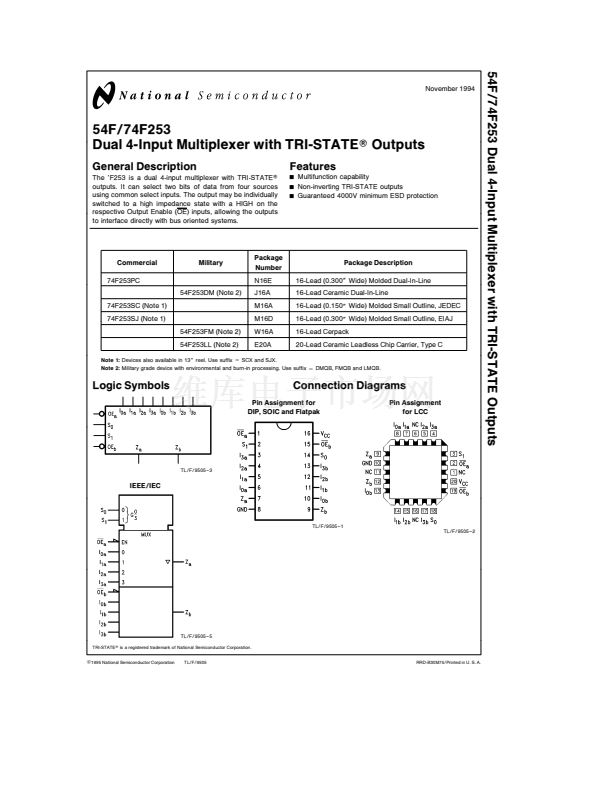

54F 74F253 Dual 4-Input Multiplexer with TRI-STATE Outputs
November 1994
54F 74F253
Dual 4-Input Multiplexer with TRI-STATE Outputs
General Description
The 鈥橣253 is a dual 4-input multiplexer with TRI-STATE
outputs It can select two bits of data from four sources
using common select inputs The output may be individually
switched to a high impedance state with a HIGH on the
respective Output Enable (OE) inputs allowing the outputs
to interface directly with bus oriented systems
Features
Y
Y
Y
Multifunction capability
Non-inverting TRI-STATE outputs
Guaranteed 4000V minimum ESD protection
Commercial
74F253PC
Military
Package
Number
N16E
Package Description
16-Lead (0 300 Wide) Molded Dual-In-Line
16-Lead Ceramic Dual-In-Line
16-Lead (0 150 Wide) Molded Small Outline JEDEC
16-Lead (0 300 Wide) Molded Small Outline EIAJ
16-Lead Cerpack
20-Lead Ceramic Leadless Chip Carrier Type C
54F253DM (Note 2)
74F253SC (Note 1)
74F253SJ (Note 1)
54F253FM (Note 2)
54F253LL (Note 2)
J16A
M16A
M16D
W16A
E20A
Note 1
Devices also available in 13 reel Use suffix
e
SCX and SJX
Note 2
Military grade device with environmental and burn-in processing Use suffix
e
DMQB FMQB and LMQB
Logic Symbols
Connection Diagrams
Pin Assignment for
DIP SOIC and Flatpak
Pin Assignment
for LCC
TL F 9505鈥?
IEEE IEC
TL F 9505 鈥?1
TL F 9505 鈥?2
TL F 9505鈥?
TRI-STATE is a registered trademark of National Semiconductor Corporation
C
1995 National Semiconductor Corporation
TL F 9505
RRD-B30M75 Printed in U S A

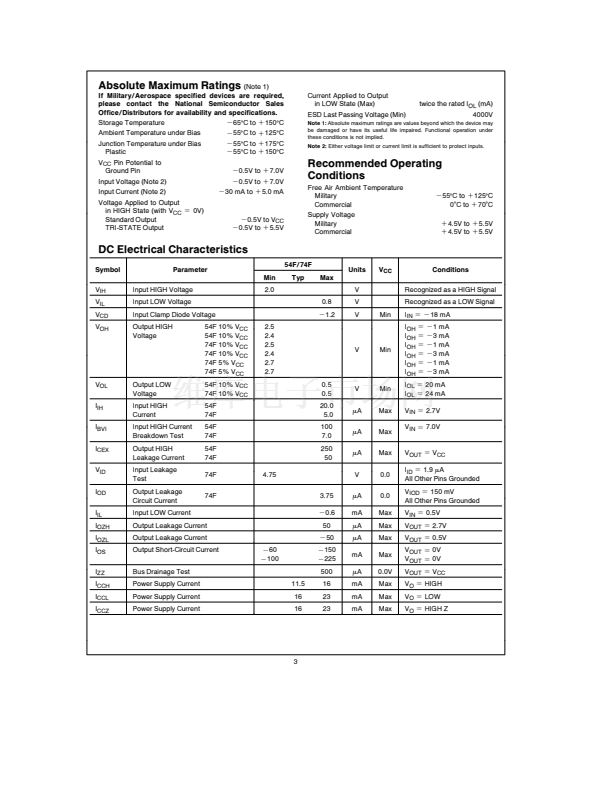

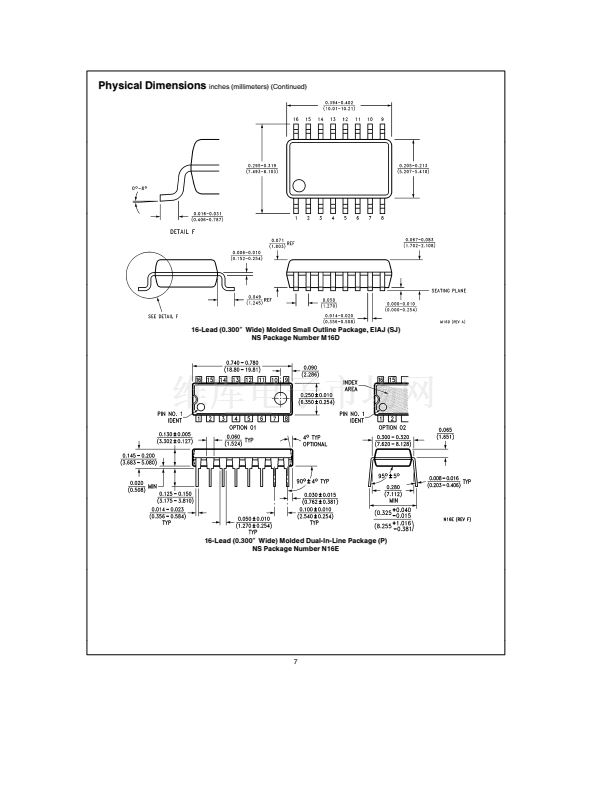

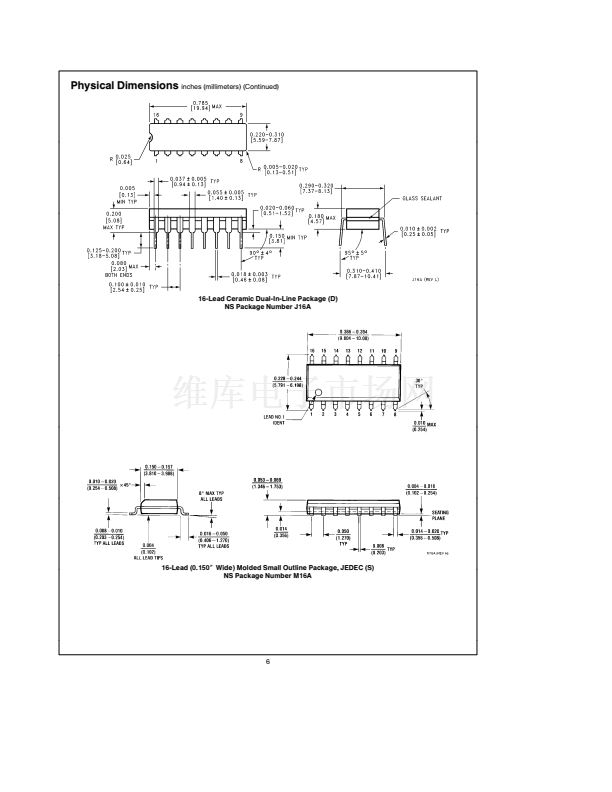

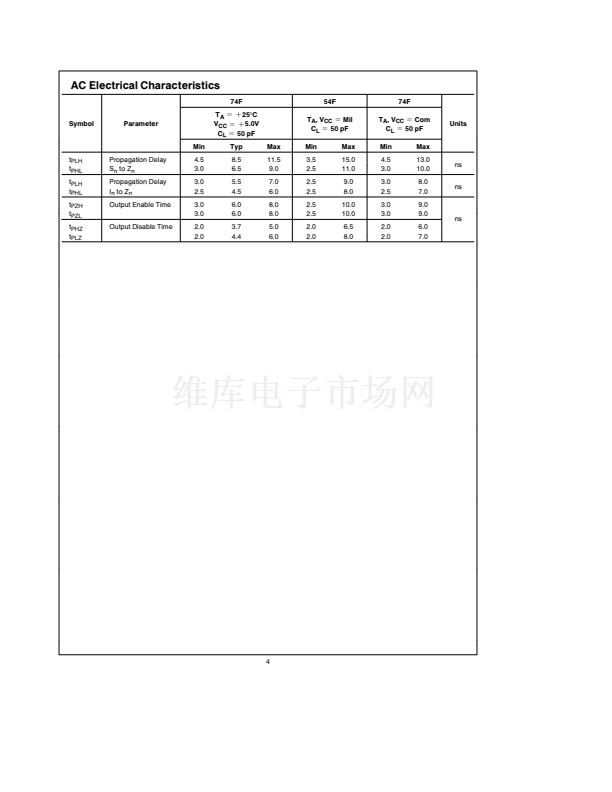

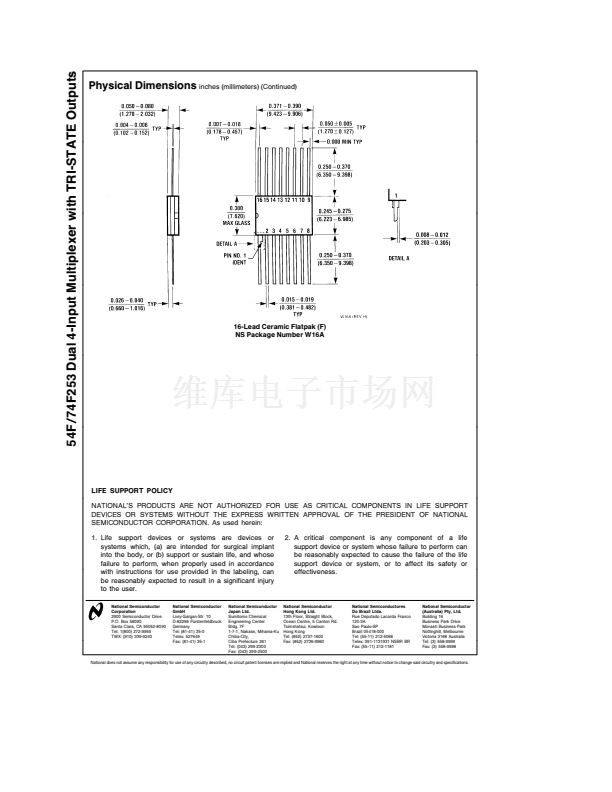

74F253SJ 產品屬性

  • 47

  • 集成電路 (IC)

  • 邏輯 - 信號開關，多路復用器，解碼器

  • 74F

  • 多路復用器

  • 2 x 4:1

  • 1

  • 3mA，24mA

  • 單電源

  • 4.5 V ~ 5.5 V

  • 0°C ~ 70°C

  • 表面貼裝

  • 16-SOIC（0.209"，5.30mm 寬）

  • 16-SOP

  • 管件
