74F241SJ Datasheet

  • 74F241SJ

  • Octal Buffers/Line Drivers with 3-STATE Outputs

  • 7頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

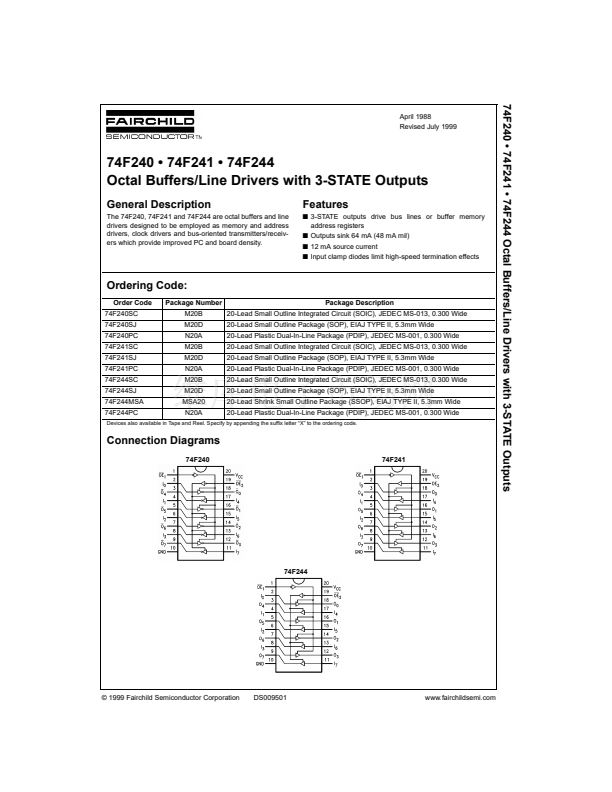

74F240 鈥?74F241 鈥?74F244 Octal Buffers/Line Drivers with 3-STATE Outputs
April 1988
Revised July 1999
74F240 鈥?74F241 鈥?74F244
Octal Buffers/Line Drivers with 3-STATE Outputs
General Description
The 74F240, 74F241 and 74F244 are octal buffers and line
drivers designed to be employed as memory and address
drivers, clock drivers and bus-oriented transmitters/receiv-
ers which provide improved PC and board density.
Features
s
3-STATE outputs drive bus lines or buffer memory
address registers
s
Outputs sink 64 mA (48 mA mil)
s
12 mA source current
s
Input clamp diodes limit high-speed termination effects
Ordering Code:
Order Code
74F240SC
74F240SJ
74F240PC
74F241SC
74F241SJ
74F241PC
74F244SC
74F244SJ
74F244MSA
74F244PC
Package Number
M20B
M20D
N20A
M20B
M20D
N20A
M20B
M20D
MSA20
N20A
Package Description

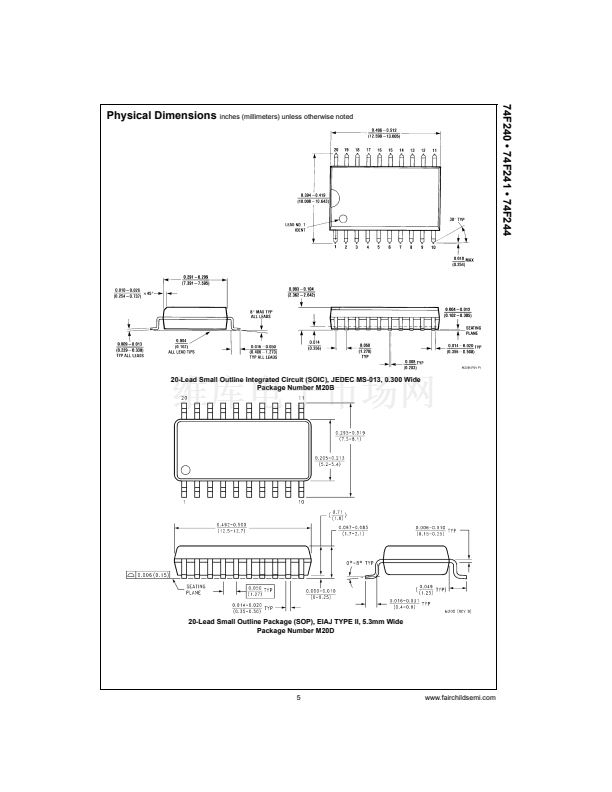

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

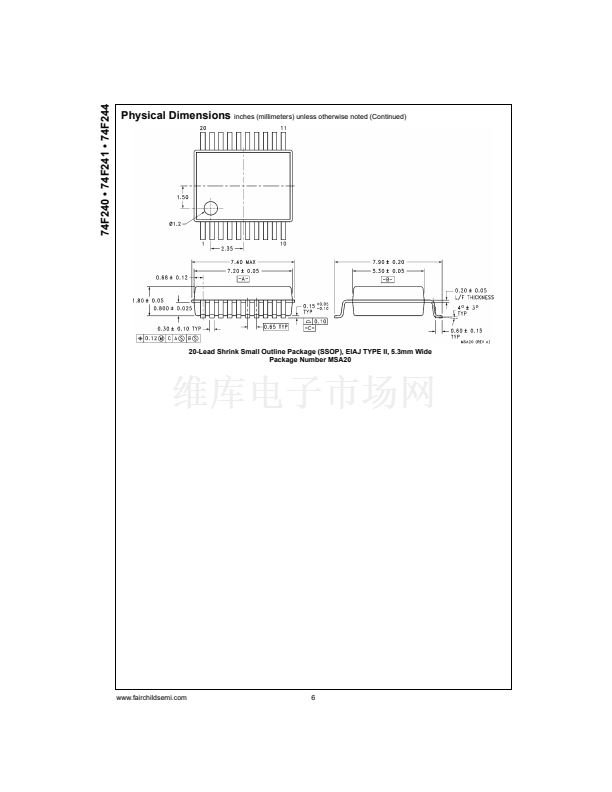

20-Lead Shrink Small Outline Package (SSOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagrams
74F240
74F241
74F244
漏 1999 Fairchild Semiconductor Corporation
DS009501
www.fairchildsemi.com

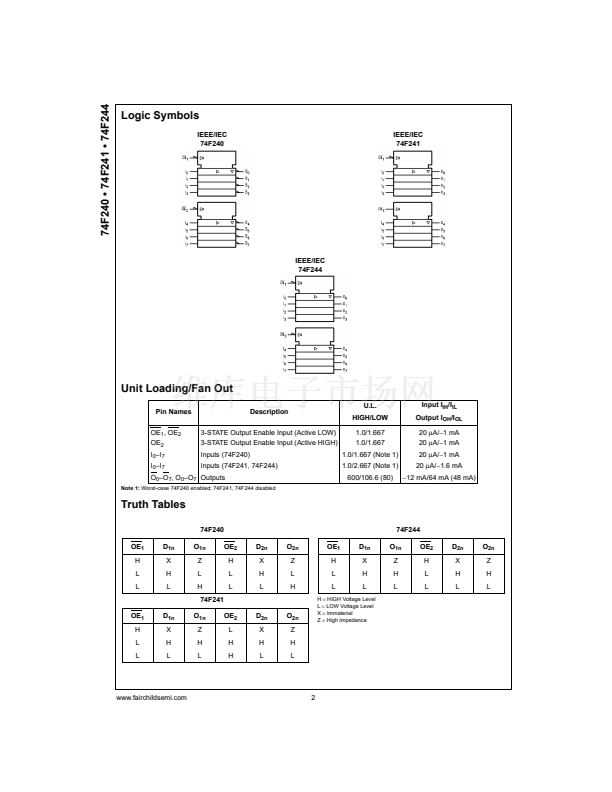

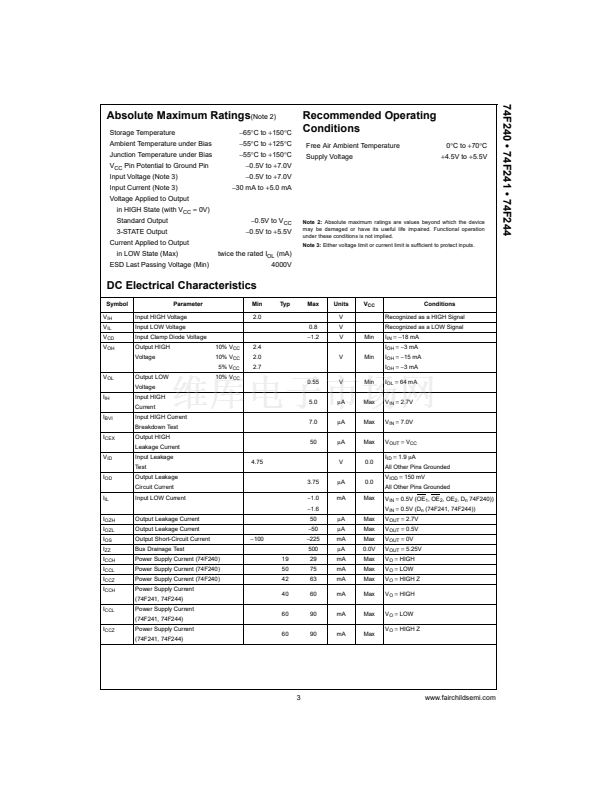

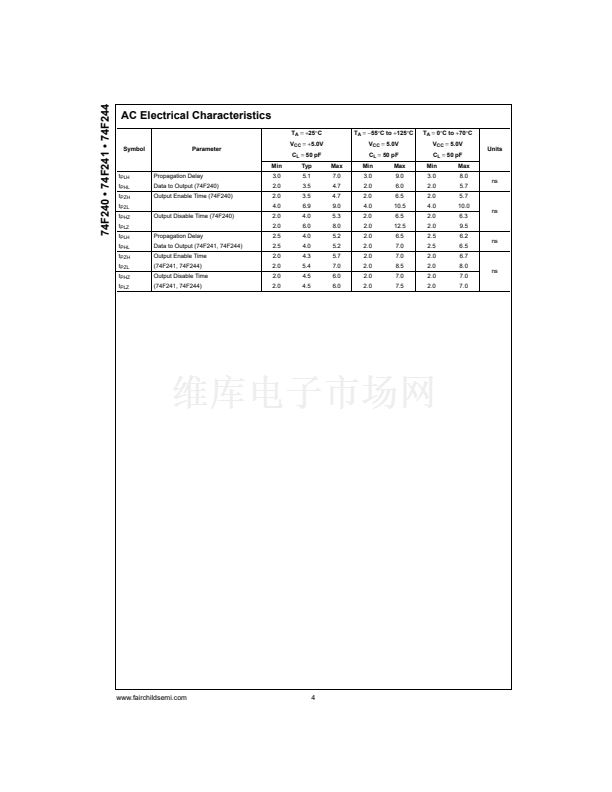

74F241SJ 產品屬性

  • Fairchild Semiconductor

  • 8

  • 3

  • Non-Inverting

  • 5.5 V

  • 4.5 V

  • + 70 C

  • SMD/SMT

  • SOP-20

  • Rail

  • - 15 mA

  • F

  • Bipolar

  • 64 mA

  • 0 C

  • 8

  • 3-State

  • 5.2 ns at 5 V
