74F241PC Datasheet

  • 74F241PC

  • Octal Buffers/Line Drivers with TRI-STATE Outputs

  • 10頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

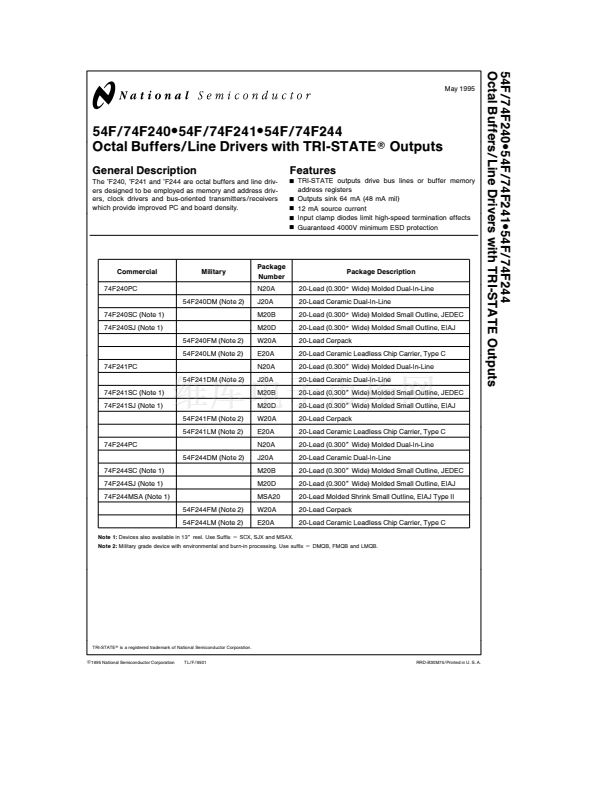

54F 74F240

54F 74F241

54F 74F244
Octal Buffers Line Drivers with TRI-STATE Outputs
May 1995
54F 74F240

54F 74F241

54F 74F244
Octal Buffers Line Drivers with TRI-STATE Outputs
General Description
The 鈥橣240 鈥橣241 and 鈥橣244 are octal buffers and line driv-
ers designed to be employed as memory and address driv-
ers clock drivers and bus-oriented transmitters receivers
which provide improved PC and board density
Features
Y
Y
Y
Y
Y
TRI-STATE outputs drive bus lines or buffer memory
address registers
Outputs sink 64 mA (48 mA mil)
12 mA source current
Input clamp diodes limit high-speed termination effects
Guaranteed 4000V minimum ESD protection
Commercial
74F240PC
Military
Package
Number
N20A
Package Description
20-Lead (0 300 Wide) Molded Dual-In-Line
20-Lead Ceramic Dual-In-Line
20-Lead (0 300 Wide) Molded Small Outline JEDEC
20-Lead (0 300 Wide) Molded Small Outline EIAJ
20-Lead Cerpack
20-Lead Ceramic Leadless Chip Carrier Type C
20-Lead (0 300 Wide) Molded Dual-In-Line
20-Lead Ceramic Dual-In-Line
20-Lead (0 300 Wide) Molded Small Outline JEDEC
20-Lead (0 300 Wide) Molded Small Outline EIAJ
20-Lead Cerpack
20-Lead Ceramic Leadless Chip Carrier Type C
20-Lead (0 300 Wide) Molded Dual-In-Line
20-Lead Ceramic Dual-In-Line
20-Lead (0 300 Wide) Molded Small Outline JEDEC
20-Lead (0 300 Wide) Molded Small Outline EIAJ
20-Lead Molded Shrink Small Outline EIAJ Type II
20-Lead Cerpack
20-Lead Ceramic Leadless Chip Carrier Type C
54F240DM (Note 2)
74F240SC (Note 1)
74F240SJ (Note 1)
54F240FM (Note 2)
54F240LM (Note 2)
74F241PC
54F241DM (Note 2)
74F241SC (Note 1)
74F241SJ (Note 1)
54F241FM (Note 2)
54F241LM (Note 2)
74F244PC
54F244DM (Note 2)
74F244SC (Note 1)
74F244SJ (Note 1)
74F244MSA (Note 1)
54F244FM (Note 2)
54F244LM (Note 2)
J20A
M20B
M20D
W20A
E20A
N20A
J20A
M20B
M20D
W20A
E20A
N20A
J20A
M20B
M20D
MSA20
W20A
E20A
Note 1
Devices also available in 13 reel Use Suffix
e
SCX SJX and MSAX
Note 2
Military grade device with environmental and burn-in processing Use suffix
e
DMQB FMQB and LMQB
TRI-STATE is a registered trademark of National Semiconductor Corporation
C
1995 National Semiconductor Corporation
TL F 9501
RRD-B30M75 Printed in U S A

74F241PC 產品屬性

  • 18

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74F

  • 緩沖器/線路驅動器，非反相

  • 2

  • 4

  • 3mA，64mA

  • 4.5 V ~ 5.5 V

  • 0°C ~ 70°C

  • 通孔

  • 20-DIP（0.300"，7.62mm）

  • 20-DIP

  • 管件

  • 74F241
