74F2244SC Datasheet

  • 74F2244SC

  • Octal Buffer/Line Driver with 25ヘ Series Resistors in Outpu...

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

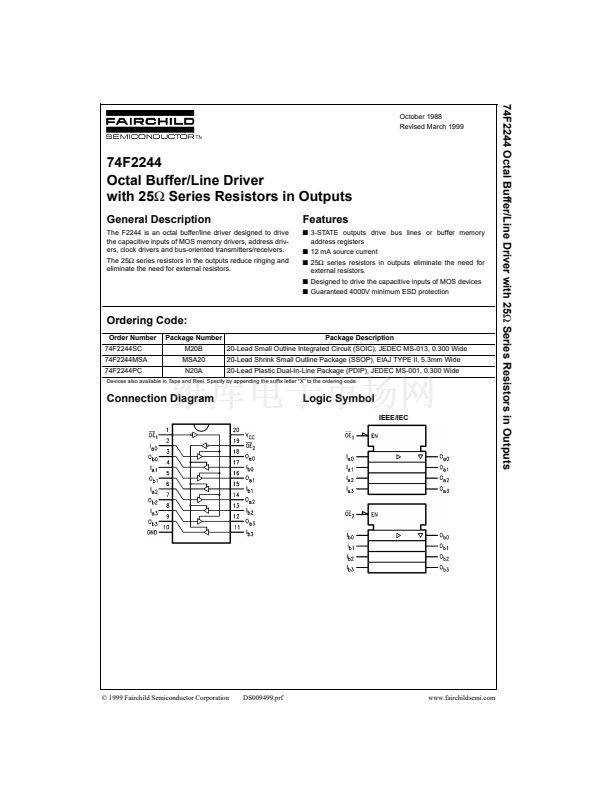

74F2244 Octal Buffer/Line Driver with 25鈩?Series Resistors in Outputs
October 1988
Revised March 1999
74F2244
Octal Buffer/Line Driver
with 25鈩?Series Resistors in Outputs
General Description
The F2244 is an octal buffer/line driver designed to drive
the capacitive inputs of MOS memory drivers, address driv-
ers, clock drivers and bus-oriented transmitters/receivers.
The 25鈩?series resistors in the outputs reduce ringing and
eliminate the need for external resistors.
Features
s
3-STATE outputs drive bus lines or buffer memory
address registers
s
12 mA source current
s
25鈩?series resistors in outputs eliminate the need for
external resistors.
s
Designed to drive the capacitive inputs of MOS devices
s
Guaranteed 4000V minimum ESD protection
Ordering Code:
Order Number
74F2244SC
74F2244MSA
74F2244PC
Package Number
M20B
MSA20
N20A
Package Description

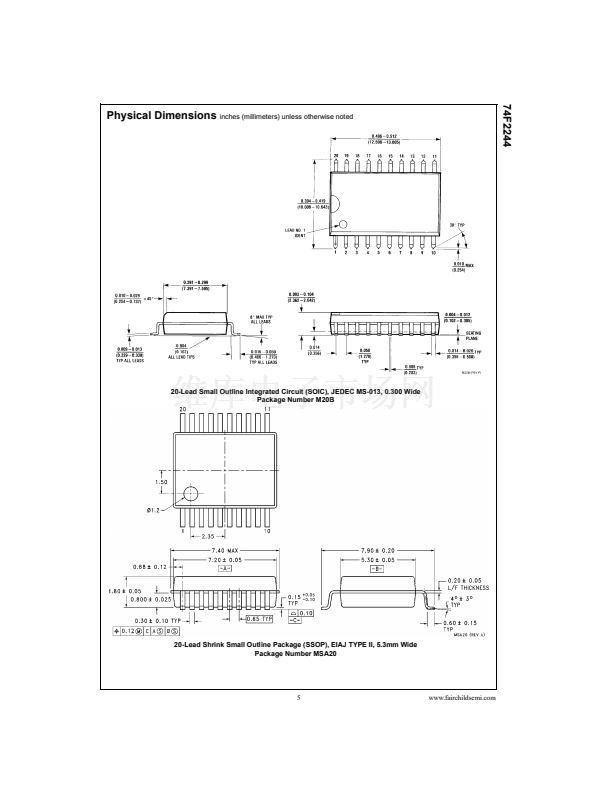

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Shrink Small Outline Package (SSOP), EIAJ TYPE II, 5.3mm Wide

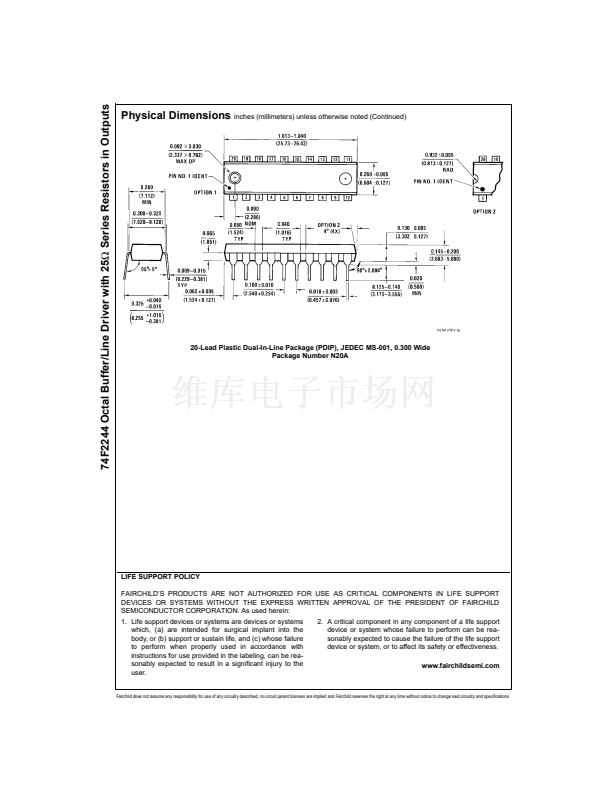

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Logic Symbol
IEEE/IEC
漏 1999 Fairchild Semiconductor Corporation
DS009499.prf
www.fairchildsemi.com

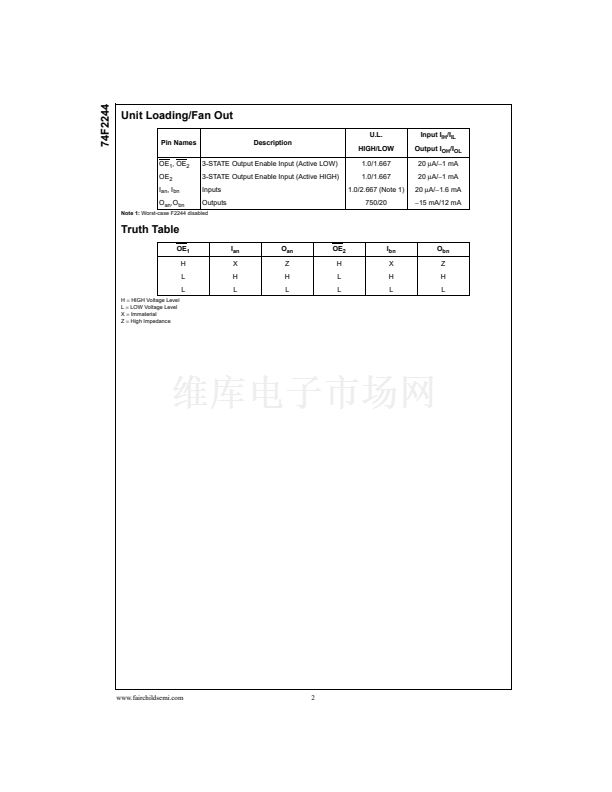

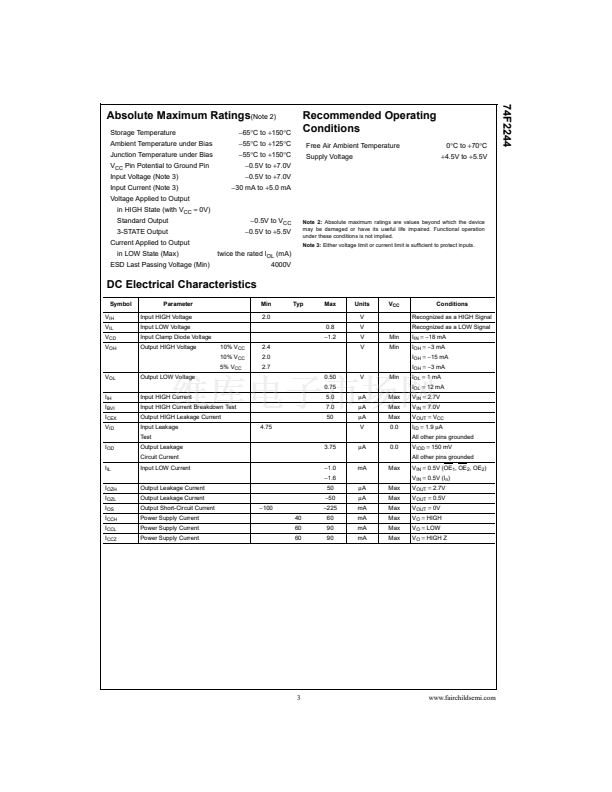

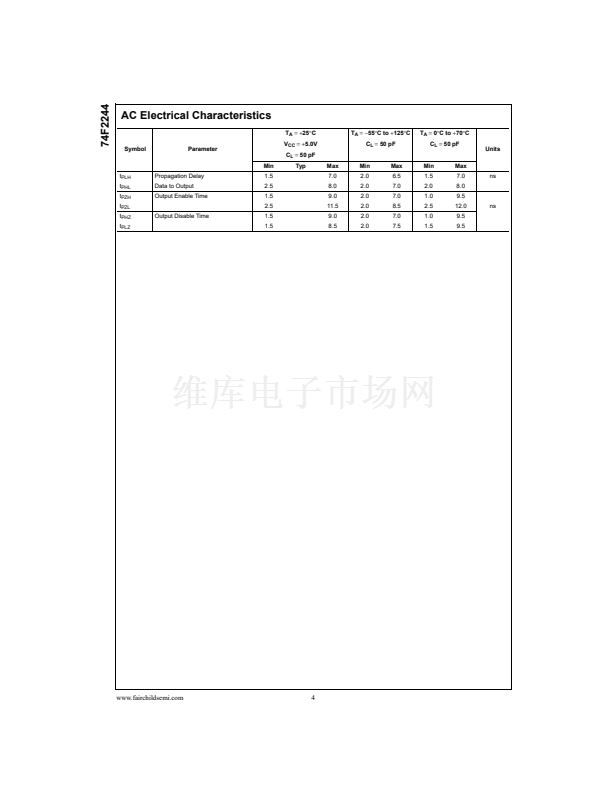

74F2244SC 產品屬性

  • 36

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74F

  • 緩沖器/線路驅動器，非反相

  • 2

  • 4

  • 3mA，12mA

  • 4.5 V ~ 5.5 V

  • 0°C ~ 70°C

  • 表面貼裝

  • 20-SOIC（0.295"，7.50mm 寬）

  • 20-SOIC

  • 管件
