74ALVCH16244 Low Voltage 16-Bit Buffer/Line Driver with Bushold
September 2001
Revised February 2002
74ALVCH16244
Low Voltage 16-Bit Buffer/Line Driver with Bushold
General Description
The ALVCH16244 contains sixteen non-inverting buffers
with 3-STATE outputs to be employed as a memory and
address driver, clock driver, or bus oriented transmitter/
receiver. The device is nibble (4-bit) controlled. Each nibble
has separate 3-STATE control inputs which can be shorted
together for full 16-bit operation.
The ALVCH16244 data inputs include active bushold cir-
cuitry, eliminating the need for external pull-up resistors to
hold unused or floating data inputs at a valid logic level.
The 74ALVCH16244 is designed for low voltage (1.65V to
3.6V) V
CC
applications with output capability up to 3.6V.
The 74ALVCH16244 is fabricated with an advanced CMOS
technology to achieve high speed operation while maintain-
ing low CMOS power dissipation.
Features
s
1.65V to 3.6V V
CC
supply operation
s
3.6V tolerant control inputs and outputs
s
Bushold on data inputs eliminating the need for external
pull-up/pull-down resistors
s
t
PD
3 ns max for 3.0V to 3.6V V
CC
3.7 ns max for 2.3V to 2.7V V
CC
6.0 ns max for 1.65V to 1.95V V
CC
s
Uses patented noise/EMI reduction circuitry
s
Latch-up conforms to JEDEC JED78
s
ESD performance:
Human body model
>
2000V
Machine model
>
200V
Ordering Code:
Order Number
74ALVCH16244T
Package
Number
MTD48
Package Description
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
Pin Descriptions
Pin Names
OE
n
I
0
鈥揑
15
O
0
鈥揙
15
Description
Output Enable Input (Active LOW)
Bushold Inputs
Outputs
漏 2002 Fairchild Semiconductor Corporation
DS500625
www.fairchildsemi.com

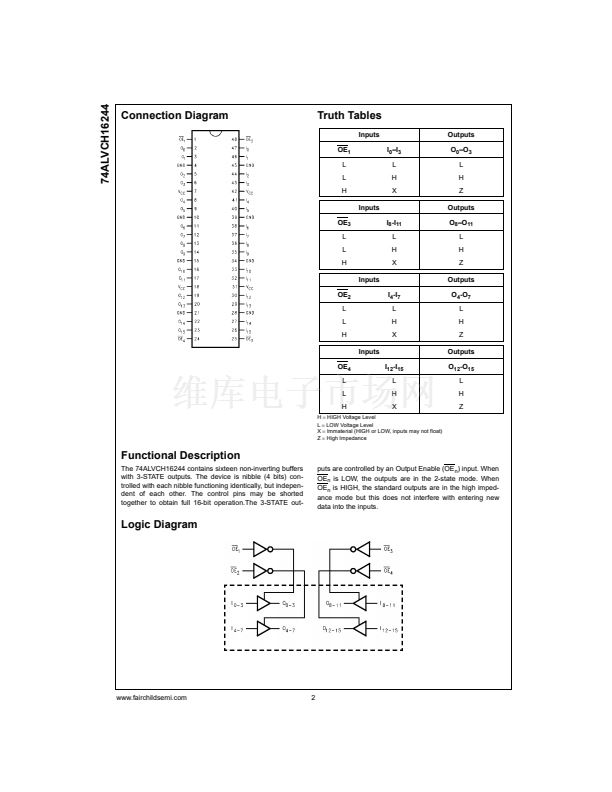

74ALVCH16244T 產品屬性

  • 3,800

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74ALVCH

  • 緩沖器/線路驅動器，非反相

  • 4

  • 4

  • 24mA，24mA

  • 1.65 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 48-TFSOP（0.240"，6.10mm 寬）

  • 48-TSSOP

  • 管件
