74ALVC16245DTR Datasheet

  • 74ALVC16245DTR

  • Bus Transceiver

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74ALVC16245
Low-Voltage 1.8/2.5/3.3V
16-Bit Transceiver
With 3.6 V鈥揟olerant Inputs and Outputs
(3鈥揝tate, Non鈥揑nverting)
The 74ALVC16245 is an advanced performance, non鈥搃nverting
16鈥揵it transceiver. It is designed for very high鈥搒peed, very low鈥損ower
operation in 1.8 V, 2.5 V or 3.3 V systems.
The ALVC16245 is designed with byte control. It can be operated as
two separate octals, or with the controls tied together, as a 16鈥揵it wide
function. The Transmit/Receive (T/Rn) inputs determine the direction
of data flow through the bi鈥揹irectional transceiver. Transmit
(active鈥揌IGH) enables data from A ports to B ports; Receive
(active鈥揕OW) enables data from B to A ports. The Output Enable
inputs (OEn), when HIGH, disable both A and B ports by placing them
in a HIGH Z condition.
http://onsemi.com
MARKING DIAGRAM
48
48
74ALVC16245DT
1
AWLYYWW
鈥?/div>
Designed for Low Voltage Operation: V
CC
= 1.65鈥?.6 V
鈥?/div>
3.6 V Tolerant Inputs and Outputs
鈥?/div>
High Speed Operation: 3.0 ns max for 3.0 to 3.6 V
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3.7 ns max for 2.3 to 2.7 V
6.0 ns max for 1.65 to 1.95 V
Static Drive:
$24
mA Drive at 3.0 V
$12
mA Drive at 2.3 V
$4
mA Drive at 1.65 V
Supports Live Insertion and Withdrawal
I
OFF
Specification Guarantees High Impedance When V
CC
= 0 V
鈥?/div>
Near Zero Static Supply Current in All Three Logic States (40
mA)
Substantially Reduces System Power Requirements
Latchup Performance Exceeds
$250
mA @ 125擄C
ESD Performance: Human Body Model >2000 V; Machine Model >200 V
Second Source to Industry Standard 74ALVC16245
TSSOP鈥?8
DT SUFFIX
CASE 1201
1
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
ORDERING INFORMATION
Device
74ALVC16245DTR
Package
TSSOP
Shipping
2500/Tape & Reel
鈥燭o ensure the outputs activate in the 3鈥搒tate condition, the output enable pins
should be connected to V
CC
through a pull鈥搖p resistor. The value of the resistor is
determined by the current sinking capability of the output connected to the OE pin.
漏
Semiconductor Components Industries, LLC, 2002
1
July, 2002 鈥?Rev. 0
Publication Order Number:
74ALVC16245/D

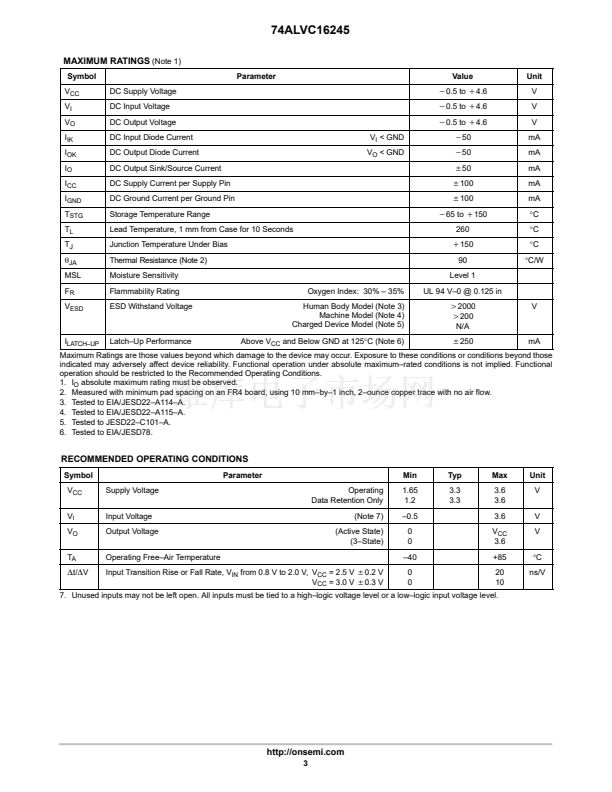

74ALVC16245DTR 產品屬性

  • 2,500

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74ALVC

  • 收發器，非反相

  • 2

  • 8

  • 24mA，24mA

  • 1.65 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 48-TFSOP（0.240"，6.10mm 寬）

  • 48-TSSOP

  • 帶卷 (TR)

  • 74ALVC16245DTROS
