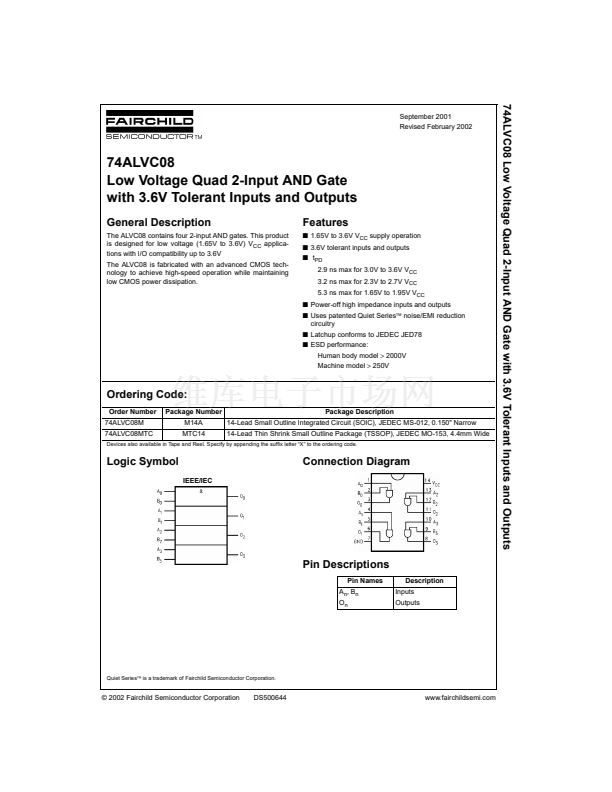

74ALVC08 Low Voltage Quad 2-Input AND Gate with 3.6V Tolerant Inputs and Outputs
September 2001
Revised February 2002
74ALVC08
Low Voltage Quad 2-Input AND Gate
with 3.6V Tolerant Inputs and Outputs
General Description
The ALVC08 contains four 2-input AND gates. This product
is designed for low voltage (1.65V to 3.6V) V
CC
applica-
tions with I/O compatibility up to 3.6V
The ALVC08 is fabricated with an advanced CMOS tech-
nology to achieve high-speed operation while maintaining
low CMOS power dissipation.
Features
s
1.65V to 3.6V V
CC
supply operation
s
3.6V tolerant inputs and outputs
s
t
PD
2.9 ns max for 3.0V to 3.6V V
CC
3.2 ns max for 2.3V to 2.7V V
CC
5.3 ns max for 1.65V to 1.95V V
CC
s
Power-off high impedance inputs and outputs
s
Uses patented Quiet Series
錚?/div>
noise/EMI reduction
circuitry
s
Latchup conforms to JEDEC JED78
s
ESD performance:
Human body model
>
2000V
Machine model
>
250V
Ordering Code:
Order Number
74ALVC08M
74ALVC08MTC
Package Number
M14A
MTC14
Package Description

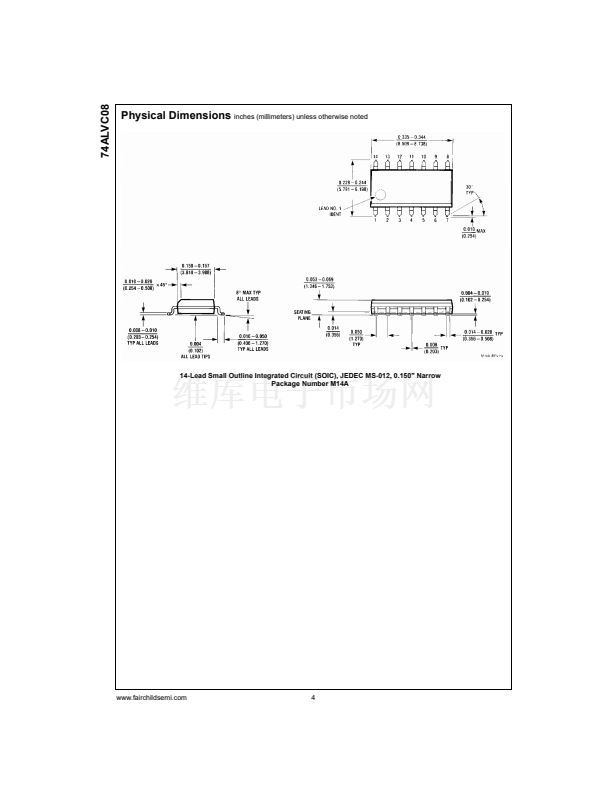

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow

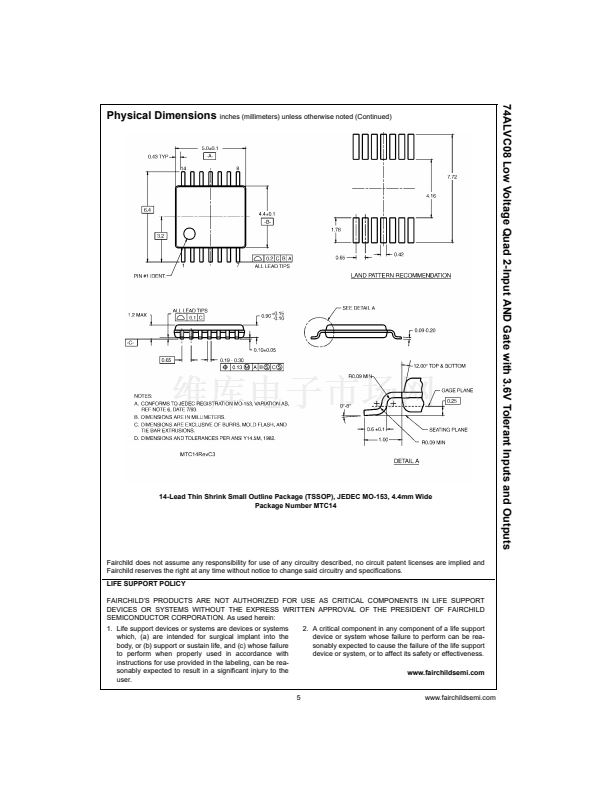

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
IEEE/IEC
Connection Diagram
Pin Descriptions
Pin Names
A
n
, B
n
O
n
Description
Inputs
Outputs
Quiet Series錚?is a trademark of Fairchild Semiconductor Corporation.
漏 2002 Fairchild Semiconductor Corporation
DS500644
www.fairchildsemi.com
