74ACTQ821SC Datasheet

  • 74ACTQ821SC

  • Quiet Seriesa⑩ 10-Bit D-Type Flip-Flop with 3-STATE Outputs

  • 7頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74ACTQ821 Quiet Series鈩?10-Bit D-Type Flip-Flop with 3-STATE Outputs
March 1990
Revised November 1998
74ACTQ821
Quiet Series鈩?10-Bit D-Type Flip-Flop
with 3-STATE Outputs
General Description
The ACTQ821 is a 10-bit D-type flip-flop with non-inverting
3-STATE outputs arranged in a broadside pinout. The
ACTQ821 utilizes Fairchild鈥檚 Quiet Series鈩?technology to
guarantee quiet output switching and improved dynamic
threshold performance. FACT Quiet Series鈩?features
GTO鈩?output control and undershoot corrector in addition
to a split ground bus for superior performance.
Features
s
Guaranteed simultaneous switching noise level and
dynamic threshold performance
s
Guaranteed pin-to-pin skew AC performance
s
Non-inverting 3-STATE outputs for bus interfacing
s
4 kV minimum ESD immunity
s
Outputs source/sink 24 mA
s
Functionally identical to the AM29821
Ordering Code:
Order Number
74ACTQ821SC
74ACTQ821SPC
Package Number
M24B
N24C
Package Description
24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300鈥?Wide Body
24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-100, 0.300鈥?Wide
Device also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.
Logic Symbols
Connection Diagram
Pin Assignment
for DIP and SOIC
IEEE/IEC
Pin Descriptions
Pin Names
D
0
鈥揇
9
O
0
鈥揙
9
OE
CP
Description
Data Inputs
Data Outputs
Output Enable Input
Clock Input
FACT鈩? Quiet Series鈩? FACT Quiet Series鈩? and GTO鈩?are trademarks of Fairchild Semiconductor Corporation.
漏 1999 Fairchild Semiconductor Corporation
DS010686.prf
www.fairchildsemi.com

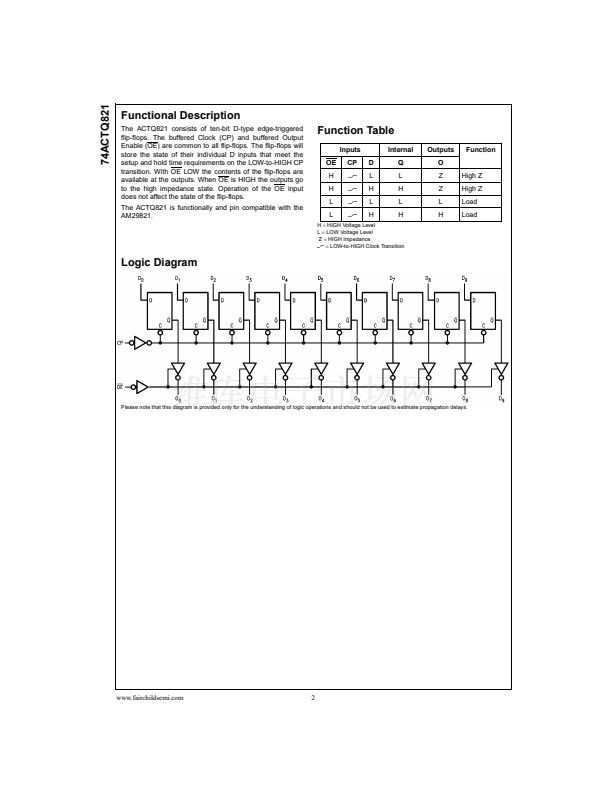

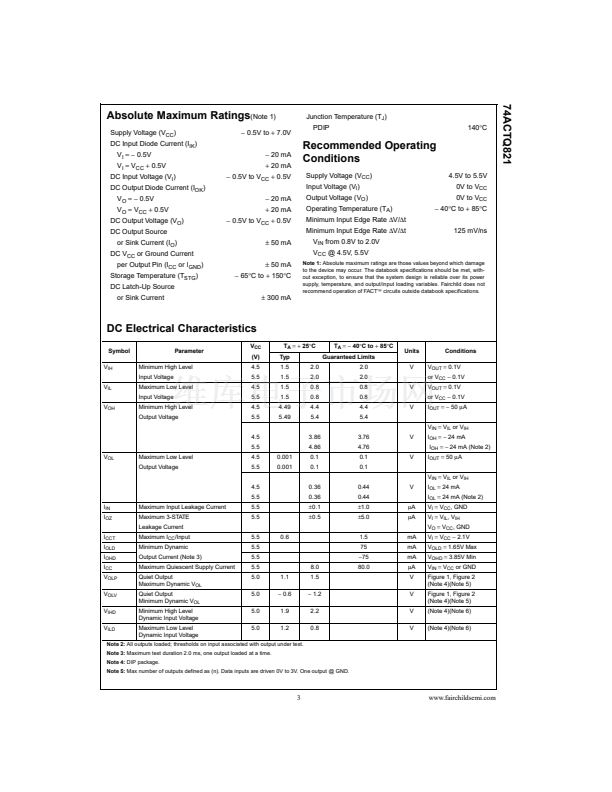

74ACTQ821SC 產品屬性

  • 900

  • 集成電路 (IC)

  • 邏輯 - 觸發器

  • 74ACTQ

  • 標準

  • D 型總線

  • 三態非反相

  • 1

  • 10

  • 120MHz

  • 6.5ns

  • 正邊沿

  • 24mA，24mA

  • 4.5 V ~ 5.5 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 24-SOIC（0.295"，7.50mm 寬）

  • 管件
