74ACTQ16540SSC Datasheet

  • 74ACTQ16540SSC

  • 16-Bit Inverting Buffer/Line Driver with 3-STATE Outputs

  • 7頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

74ACTQ16540 16-Bit Inverting Buffer/Line Driver with 3-STATE Outputs
May 1991
Revised November 1999
74ACTQ16540
16-Bit Inverting Buffer/Line Driver with 3-STATE Outputs
General Description
The ACTQ16540 contains sixteen inverting buffers with 3-
STATE outputs designed to be employed as a memory and
address driver, clock driver, or bus-oriented transmitter/
receiver. The device is byte controlled. Each byte has sep-
arate 3-STATE control inputs which can be shorted
together for full 16-bit operation.
The ACTQ16540 utilizes Fairchild Quiet Series錚?technol-
ogy to guarantee quiet output switching and improved
dynamic threshold performance. FACT Quiet Series錚?fea-
tures GTO錚?output control for superior performance.
Features
s
Utilizes Fairchild FACT Quiet Series technology
s
Guaranteed simultaneous switching noise level and
dynamic threshold performance
s
Guaranteed pin-to-pin output skew
s
Separate control logic for each byte
s
Outputs source/sink 24 mA
s
Additional specs for multiple output switching
s
Output loading specs for both 50 pF and 250 pF loads
Ordering Code:
Order Number
74ACTQ16540SSC
74ACTQ16540MTD
Package Number
MS48A
MTD48
Package Description
48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300鈥?Wide
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Device also available in Tape and Reel Specify by appending suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
Connection Diagram
Pin Descriptions
Pin
Description
Names
OE
n
I
0
鈥揑
15
O
0
鈥揙
15
Output Enable Input (Active LOW)
Inputs
Outputs
FACT錚? Quiet Series錚? FACT Quiet Series錚?and GTO錚?are trademarks of Fairchild Semiconductor Corporation.
漏 1999 Fairchild Semiconductor Corporation
DS010927
www.fairchildsemi.com

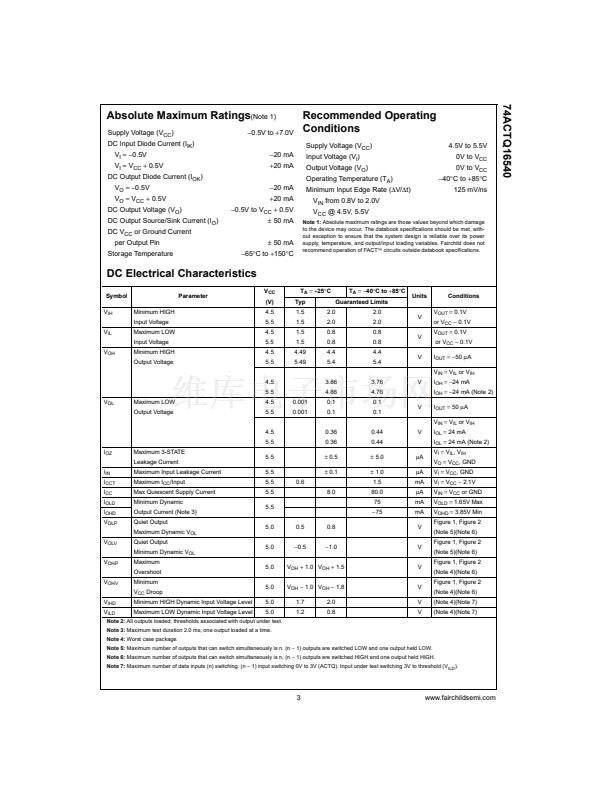

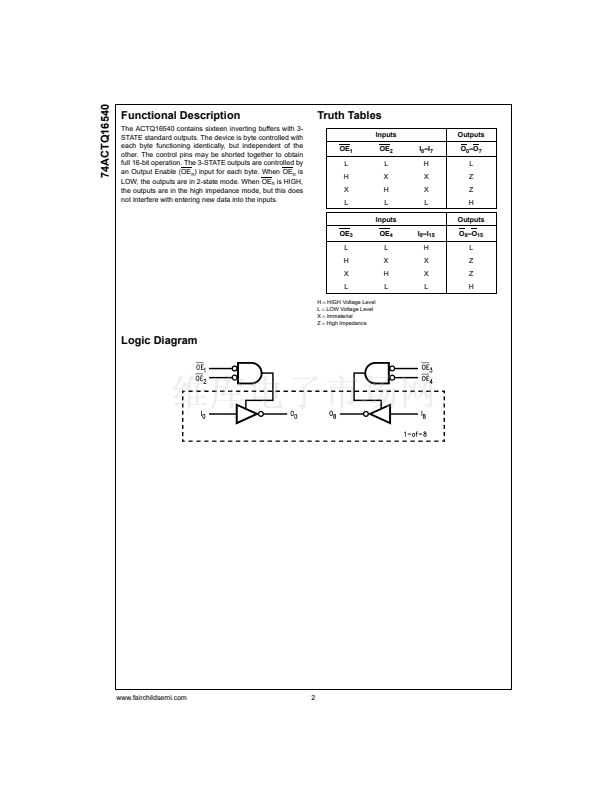

74ACTQ16540SSC 產品屬性

  • Fairchild Semiconductor

  • 緩沖器和線路驅動器

  • 16

  • 3

  • Inverting

  • 5.5 V

  • 4.5 V

  • + 85 C

  • SMD/SMT

  • SSOP-48

  • Tube

  • - 24 mA

  • ACTQ

  • CMOS

  • 24 mA

  • - 40 C

  • 16

  • 3-State

  • 7.3 ns at 5 V

  • 29
