74ACT373TTR Datasheet

  • 74ACT373TTR

  • 8-Bit D-Type Latch

  • 11頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

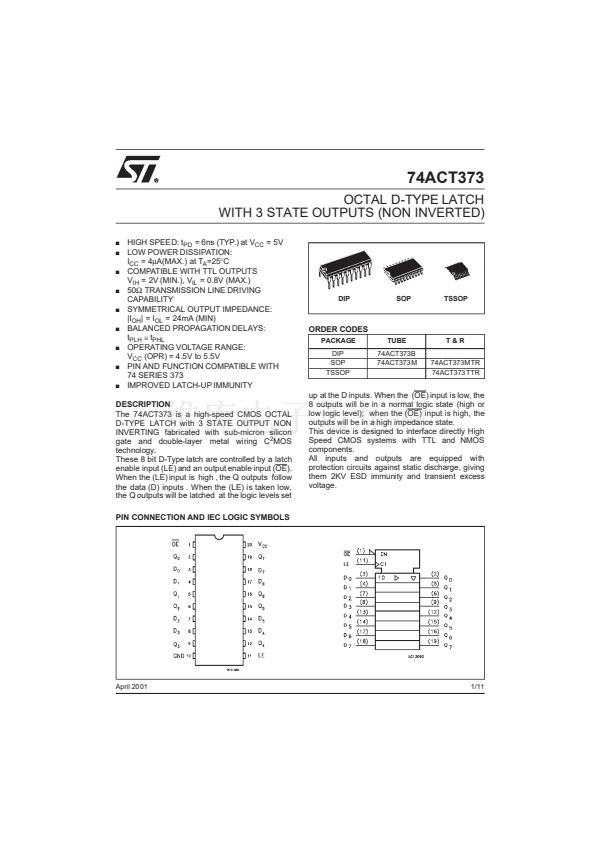

74ACT373
OCTAL D-TYPE LATCH
WITH 3 STATE OUTPUTS (NON INVERTED)
s
s
s
s
s
s
s
s
s

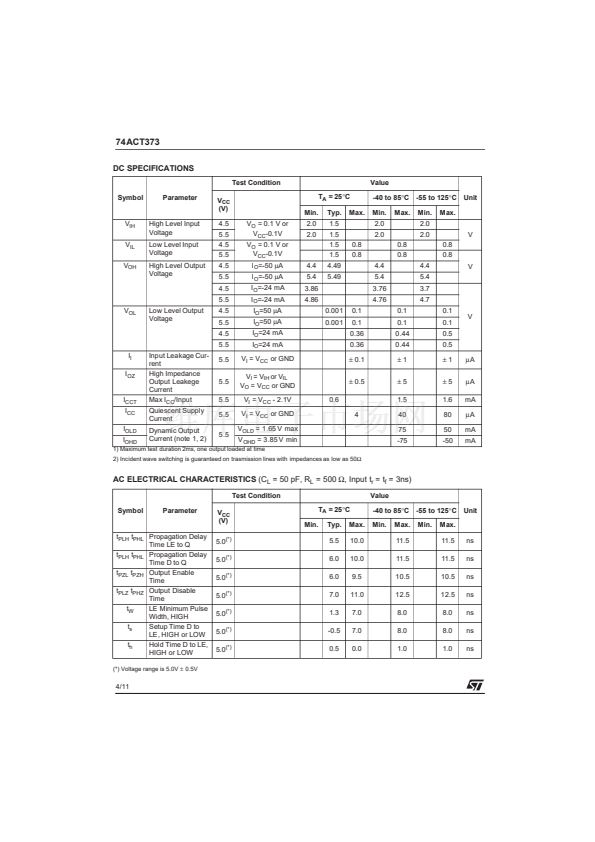

HIGH SPEED: t
PD
= 6ns (TYP.) at V
CC
= 5V
LOW POWER DISSIPATION:
I
CC
= 4碌A(chǔ)(MAX.) at T
A
=25擄C
COMPATIBLE WITH TTL OUTPUTS
V
IH
= 2V (MIN.), V
IL
= 0.8V (MAX.)
50鈩?TRANSMISSION LINE DRIVING
CAPABILITY
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN)

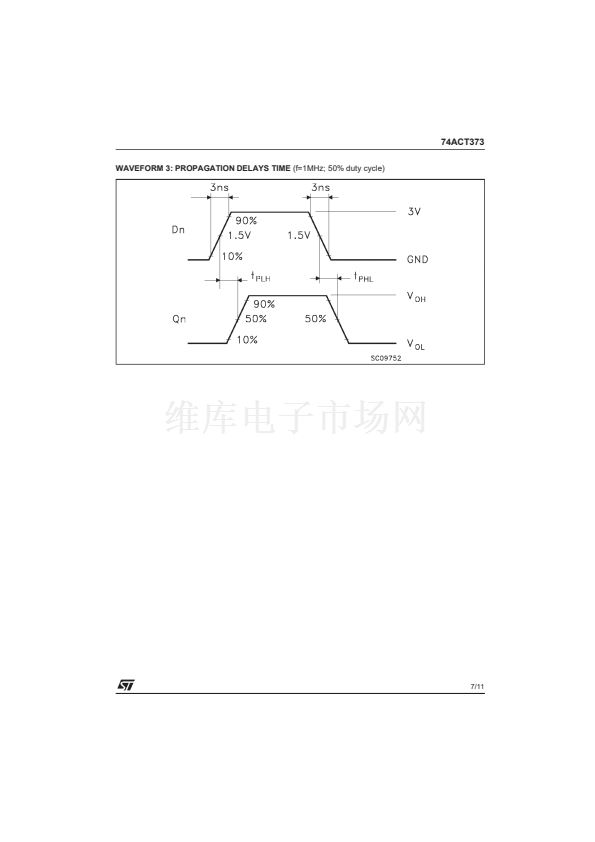

BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL

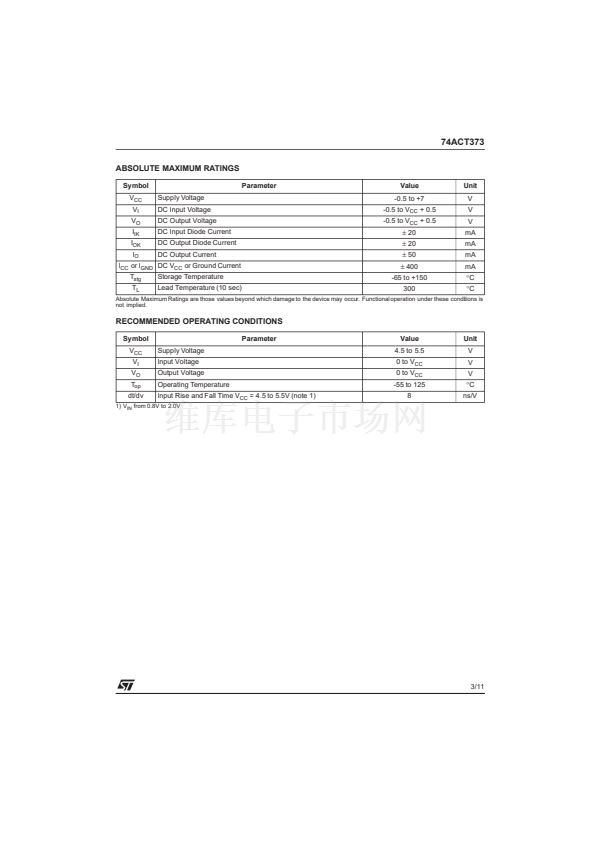

OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 4.5V to 5.5V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 373
IMPROVED LATCH-UP IMMUNITY

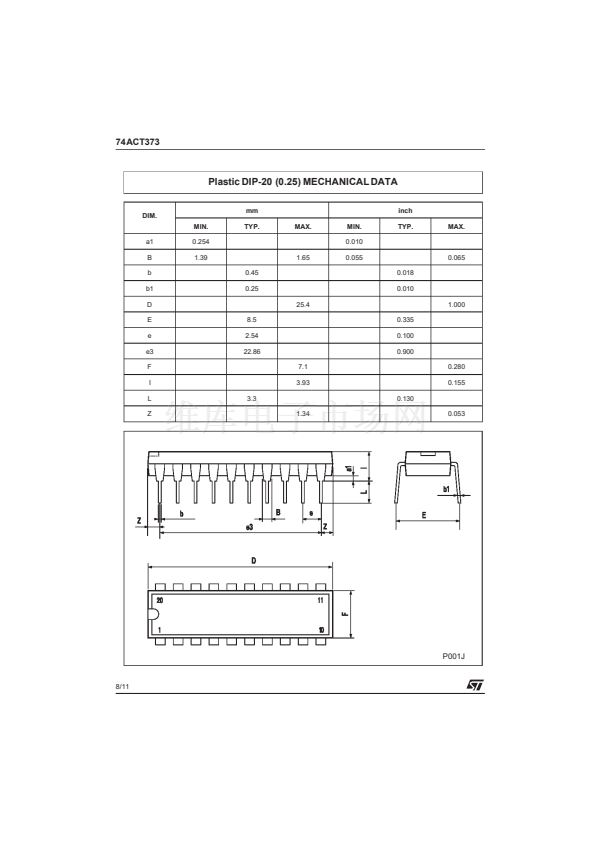

DIP

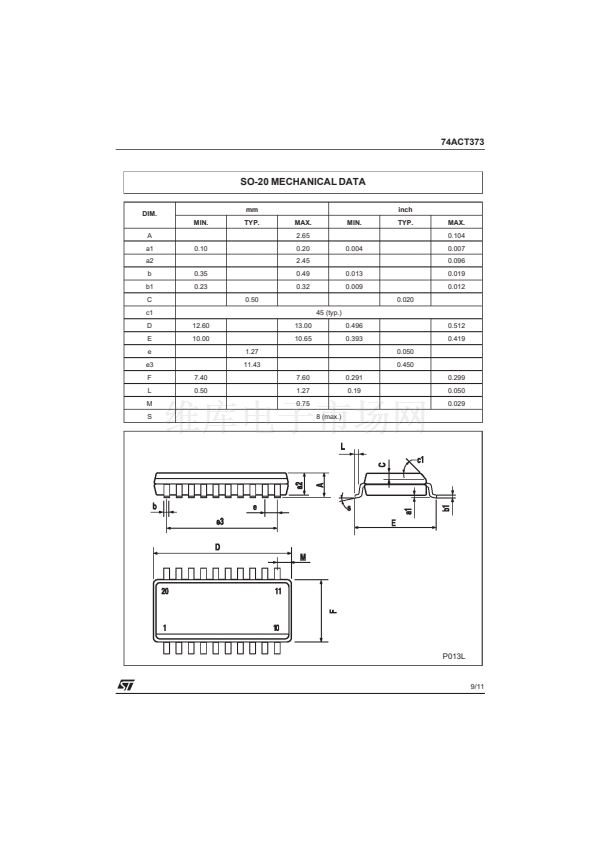

SOP

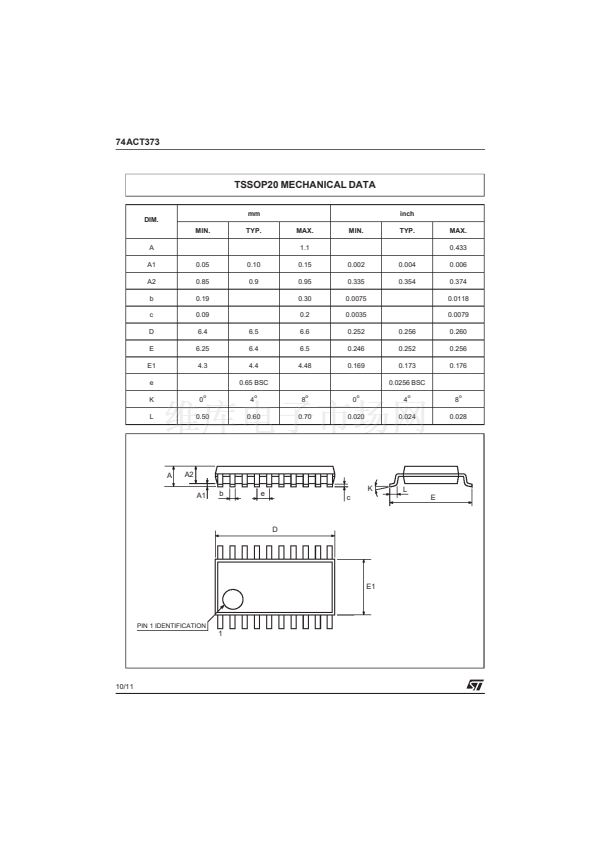

TSSOP
ORDER CODES
PACKAGE
DIP
SOP
TSSOP
TUBE
74ACT373B
74ACT373 M
T&R
74ACT373MTR
74ACT373 TTR
DESCRIPTION
The 74ACT373 is a high-speed CMOS OCTAL
D-TYPE LATCH with 3 STATE OUTPUT NON
INVERTING fabricated with sub-micron silicon
gate and double-layer metal wiring C
2
MOS
technology.
These 8 bit D-Type latch are controlled by a latch
enable input (LE) and an output enable input (OE).
When the (LE) input is high , the Q outputs follow
the data (D) inputs . When the (LE) is taken low,
the Q outputs will be latched at the logic levels set

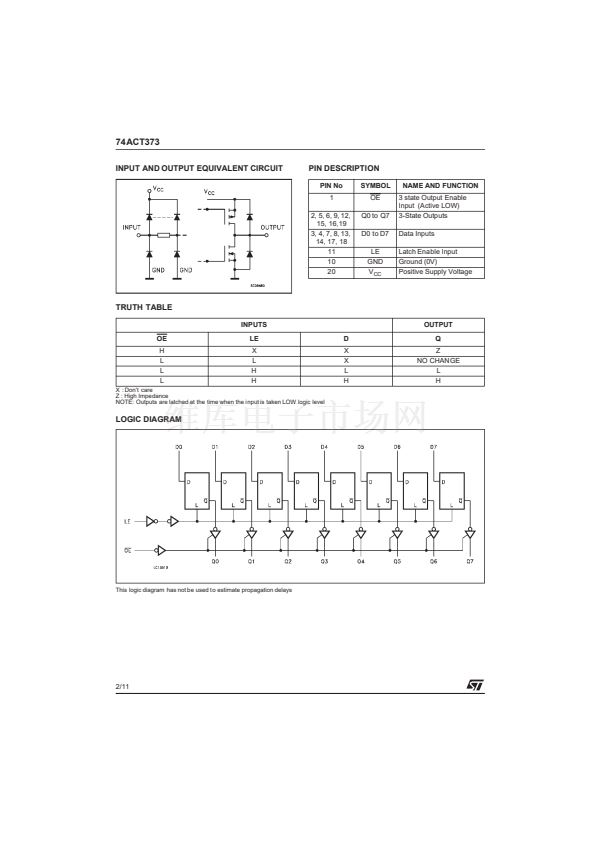

PIN CONNECTION AND IEC LOGIC SYMBOLS
up at the D inputs. When the (OE) input is low, the
8 outputs will be in a normal logic state (high or
low logic level); when the (OE) input is high, the
outputs will be in a high impedance state.
This device is designed to interface directly High
Speed CMOS systems with TTL and NMOS
components.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
April 2001
1/11
