74AC14PCX Datasheet

  • 74AC14PCX

  • Hex Inverter with Schmitt Trigger Input

  • 9頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

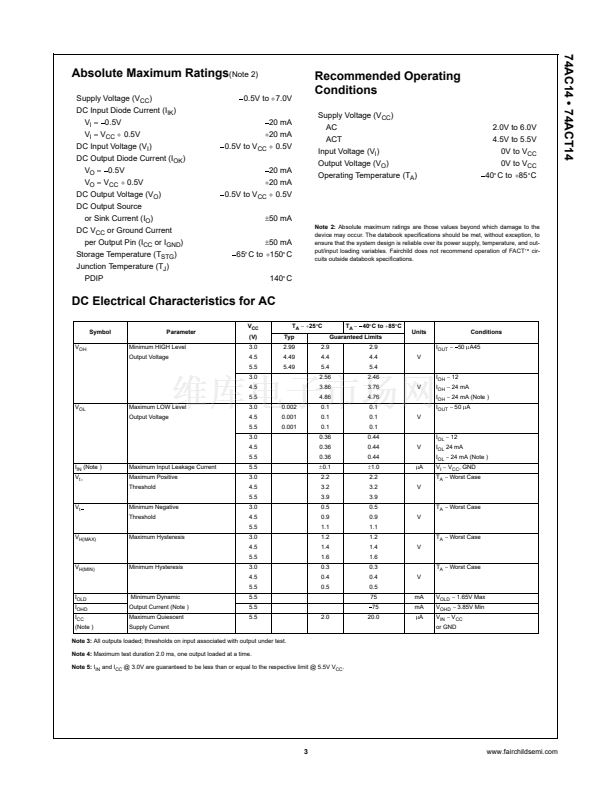

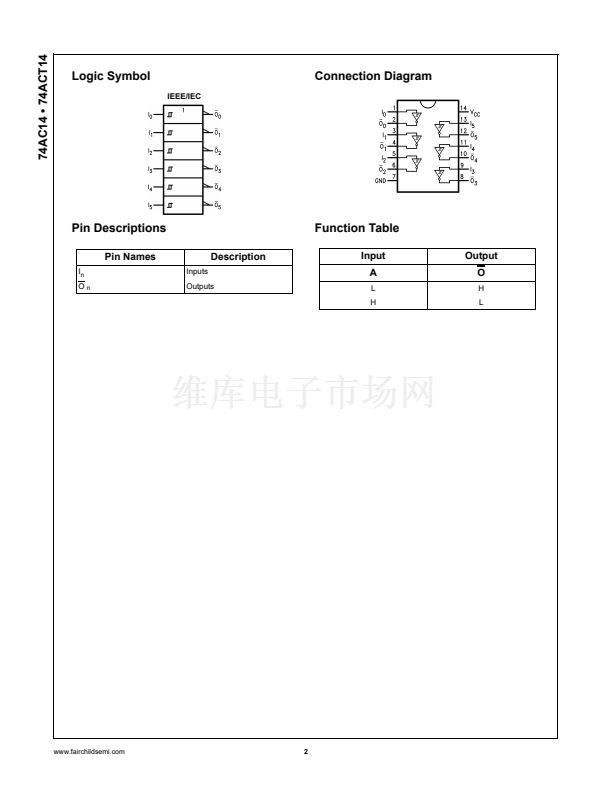

74AC14 鈥?74ACT14 Hex Inverter with Schmitt Trigger Input
November 1988
Revised September 2005
74AC14 鈥?74ACT14
Hex Inverter with Schmitt Trigger Input
General Description
The 74AC14 and 74ACT14 contain six inverter gates each with
a Schmitt trigger input. They are capable of transforming slowly
changing input signals into sharply defined, jitter-free output sig-
nals. In addition, they have a greater noise margin than conven-
tional inverters.
The 74AC14 and 74ACT14 have hysteresis between the posi-
tive-going and negative-going input thresholds (typically 1.0V)
which is determined internally by transistor ratios and is essen-
tially insensitive to temperature and supply voltage variations.
Features
O
I
CC
reduced by 50%
O
Outputs source/sink 24 mA
O
74ACT14 has TTL-compatible inputs
Ordering Code:
Order Number
74AC14SC
74AC14SCX_NL
(Note 1)
74AC14SJ
74AC14MTC
74AC14MTCX_NL
(Note 1)
74AC14PC
74ACT14SC
74ACT14MTC
74ACT14MTCX_NL
(Note 1)
74ACT14PC
Package
Number
M14A
M14A
M14D
MTC14
MTC14
N14A
M14A
MTC14
MTC14
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
Pb-Free 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Device also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.
Pb-Free package per JEDEC J-STD-020B.
Note 1:
鈥淿NL鈥?indicates Pb-Free package (per JEDEC J-STD-020B). Device available in Tape and Reel only.
FACT
樓
is a trademark of Fairchild Semiconductor Corporation.
漏 2005 Fairchild Semiconductor Corporation
DS009917
www.fairchildsemi.com
