74ABT16244CSSCX Datasheet

  • 74ABT16244CSSCX

  • Quad 4-Bit Buffer/Driver

  • 92.88KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74ABT16244 16-Bit Buffer/Line Driver with 3-STATE Outputs
April 1992
Revised November 1999
74ABT16244
16-Bit Buffer/Line Driver with 3-STATE Outputs
General Description
The ABT16244 contains sixteen non-inverting buffers with
3-STATE outputs designed to be employed as a memory
and address driver, clock driver, or bus oriented transmit-
ter/receiver. The device is nibble controlled. Individual 3-
STATE control inputs can be shorted together for 8-bit or
16-bit operation.
Features
s
Separate control logic for each nibble
s
16-bit version of the ABT244
s
Outputs sink capability of 64 mA, source capability of
32 mA
s
Guaranteed output skew
s
Guaranteed multiple output switching specifications
s
Output switching specified for both 50 pF and
250 pF loads
s
Guaranteed simultaneous switching noise level and
dynamic threshold performance
s
Guaranteed latchup protection
s
High impedance glitch free bus loading during entire
power up and power down cycle
s
Non-destructive hot insertion capability
Ordering Code:
Order Number
74ABT16244CSSC
74ABT16244CMTD
Package Number
MS48A
MTD48
Package Description
48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300鈥?Wide
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices are also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
Connection Diagram
Pin Descriptions
Pin Names
OE
n
I
0
鈥揑
15
O
0
鈥揙
15
Description
Output Enable Inputs (Active LOW)
Inputs
Outputs
漏 1999 Fairchild Semiconductor Corporation
DS010985
www.fairchildsemi.com

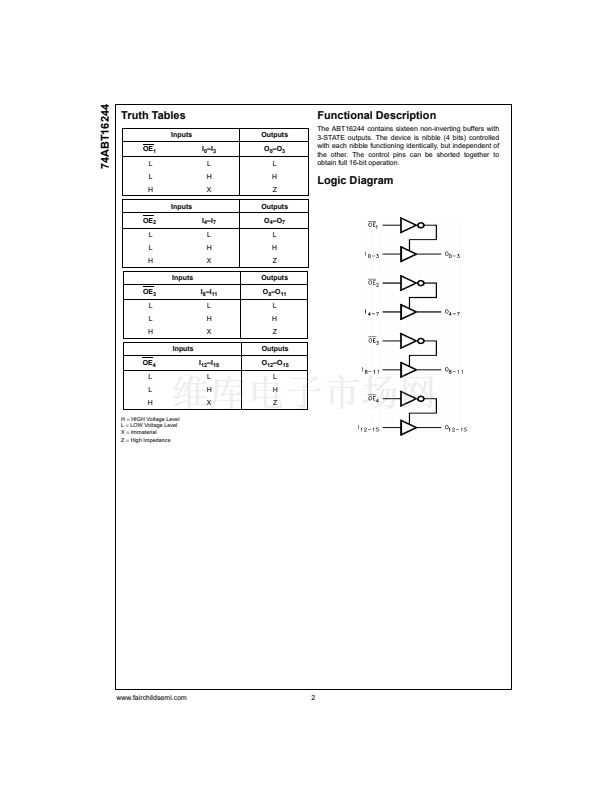

74ABT16244CSSCX 產品屬性

  • 1,000

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74ABT

  • 緩沖器/線路驅動器，非反相

  • 4

  • 4

  • 32mA，64mA

  • 4.5 V ~ 5.5 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 48-BSSOP（0.295"，7.50mm 寬）

  • 48-SSOP

  • 帶卷 (TR)
