PRODUCT SPECIFICATIONBUS-12-095

1

Quickie III TM

M. Smyk

01/06/93

1.0

GENERAL.

Scope - This specification covers the insulation piercing

QuickieTM Connector designed for printed wiring board-to-flat

cable (round conductor) interconnection in low power applications.

In all applications the mated system (male to female) plating

should be gold to gold or GXT to GXT. The specification is

composed of the following sections.

Para. Title

1.0

General

2.0

Applicable Documents

3.0

Requirements

3.1

Qualification

3.2

Material

3.3

Finish

3.4

Design and Construction

3.5

Electrical Characteristics

3.6

Mechanical Characteristics

3.7

Environmental Conditions

4.0

Quality Assurance Provisions

4.1

Equipment Calibration

4.2

Inspection Conditions

4.3

2.0

Qualification Inspection

Page

1

1

2

2

3

3

4

5

8

12

14

14

14

14

16

C

APPLICABLE DOCUMENTS.

The following documents, of the issue in effect on the date of the

latest revision of this specification, shall form a part of this

specification to the extent specified herein.

SPECIFICATIONS

MILITARY

MIL-M-245l9

MIL-G-45204

MIL-G-45662

MIL-P-55ll0

FEDERAL

QQ-N-290

QQ-W-343

QQ-B-750

Q-S-763

Molding Plastics, Polyester, Thermoplastic

Gold Plating, Electrodeposited

Calibration System Requirement

Printed Wiring Boards

Nickel Plating (Electrodeposited)

Wire, Electrical and Nonelectrical, Copper (Uninsulated)

Bronze, Phosphor; Bar, Plate, Rod, Sheet Strip, Flat Wire,

and Structural and Special Shaped Sections.

Steel Bars, Shapes, and Forgings, Corrosion-Resisting.

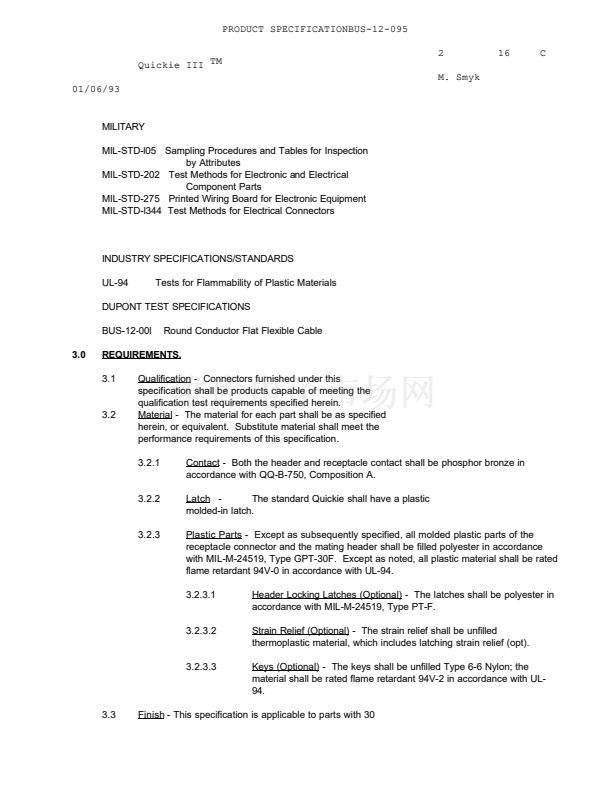

STANDARDS
