5KP6.5 Datasheet

  • 5KP6.5

  • TRANSZORB⑩ TRANSIENT VOLTAGE SUPPRESSOR

  • 70.37KB

  • 4頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

5KP5.0 THRU 5KP110A
T
RANS
Z
ORB
鈩?TRANSIENT VOLTAGE SUPPRESSOR
Stand-off Voltage -
5.0 to 110 Volts
Case Style P600
Peak Pulse Power -
5000 Watts
FEATURES
鈾?/div>
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
鈾?/div>
Glass passivated junction
鈾?/div>
5000W peak pulse power
capability with a 10/1000碌s waveform,
repetition rate (duty cycle): 0.05%
鈾?/div>
Excellent clamping capability
鈾?/div>
Low incremental surge resistance
鈾?/div>
Fast response time: typically less
than 1.0ps from 0 Volts to V
(BR)
鈾?/div>
Devices with V(
BR
)>10V I
D
are typically I
D
less
than 1.0碌A(chǔ)
鈾?/div>
High temperature soldering guaranteed:
265擄C/10 seconds, 0.375" (9.5mm) lead length,
5lbs. (2.3 kg) tension
1.0 (25.4)
MIN.
0.360 (9.1)
0.340 (8.6)
0.360 (9.1)
0.340 (8.6)
0.052 (1.32)
0.048 (1.22)
DIA.
1.0 (25.4)
MIN.
MECHANICAL DATA
Dimensions in inches and (millimeters)
Available in uni-directional only
Case:
Molded plastic body over glass passivated junction
Terminals:
Solder plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
The color band denotes the cathode, which is
postitive with respect to the anode under normal TVS oper-
ation
Mounting Position:
Any
Weight:
0.07 ounce, 2.1 grams
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25擄C ambient temperature unless otherwise specified.
SYMBOL
VALUE
UNITS
Peak pulse power dissipation with a 10/1000碌s
waveform
(NOTE 1, FIG. 1)
Peak pulse current with a 10/1000碌s
waveform
(NOTE 1)
Steady state power dissipation at T
L
=75擄C
lead lengths 0.375鈥?(9.5mm)
(NOTE 2)
Peak forward surge current, 8.3ms single half
sine-wave superimposed on rated load
(JEDEC Method)
(NOTE 3)
Instantaneous forward voltage at 100A,
(NOTE 3)
P
PPM
I
PPM
P
M(AV)
Minimum 5000

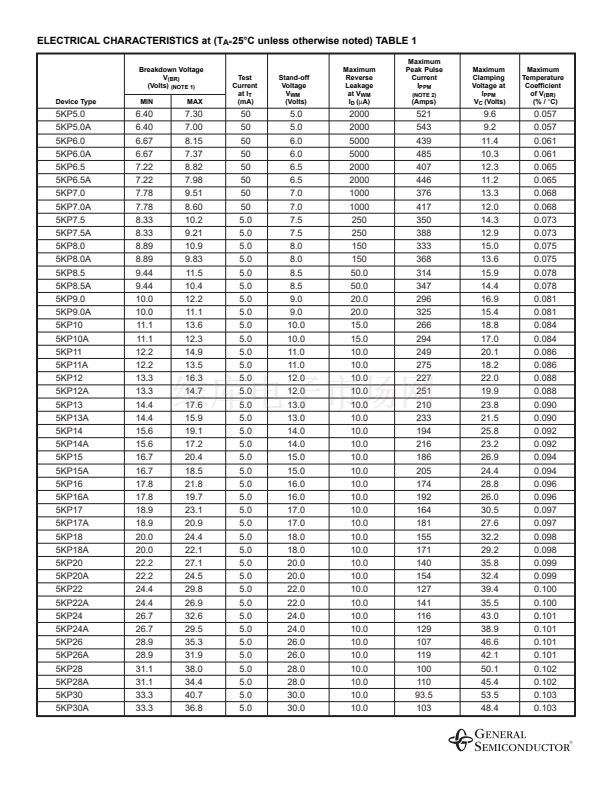

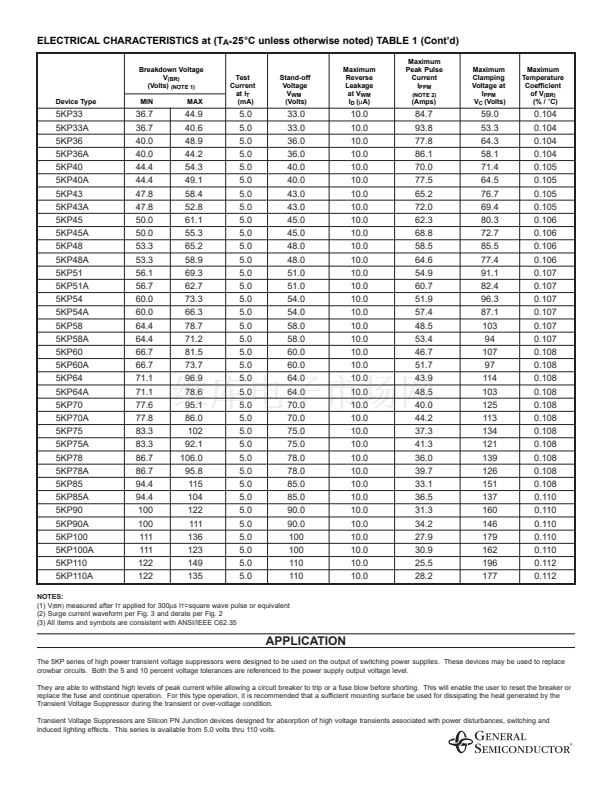

SEE TABLE 1
Watts
Amps
Watts
8.0
I
FSM
V
F
T
J
, T
STG
400
3.5
-55 to +175
Amps
Volts
擄C
Operating junction and storage temperature range
NOTES:

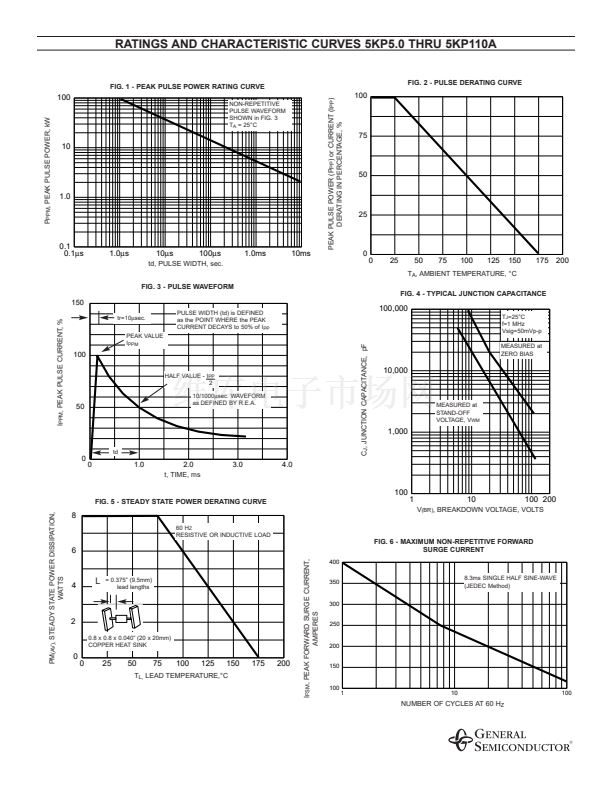

(1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
=25擄C per Fig. 2
(2) Mounted on copper pad area of 0.8 x 0.8鈥?(20 x 20mm) per Fig. 5
(3) Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum
1/21/99

5KP6.5 產品屬性

  • Transient Voltage Suppression (TVS) Diodes

  • 800

  • 過電壓，電流，溫度裝置

  • TVS - 二極管

  • 5KP

  • 6.5V

  • 7.22V

  • 5000W

  • 單向

  • 通孔

  • P600，軸向

  • P600

  • 帶卷 (TR)

  • 5KP6.5T
