DATA SHEET
5KP
SERIES
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE
FEATURES
1.0(25.4)MIN.
5.0 to 220 Volts
PEAK PULSE POWER
5000 Watts
P-600
Unit: inch(mm)
鈥?Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
鈥?5000W Peak Pulse Power capability at on 10/1000碌s waveform
鈥?Excellent clamping capability
鈥?Low zener impedance
鈥?Repetition rate(Duty Cycle):.05%
鈥?Fast response time: typically less than 1.0 ps from 0 volts to BV min
.052(1.3)
.048(1.2)
.360(9.1)
鈥?Typical IR less than 1碌A(chǔ) above 10V
.340(8.6)
1.0(25.4)MIN.
MECHANICALDATA
Case: JEDEC P-600 molded plastic
Terminals: Axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denoted cathode except Bipolar
Mounting Position: Any
Weight: 0.07 ounce, 2.1 gram
.360(9.1)
.340(8.6)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types 5KP5.0 thru types 5KP220
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Rating at 25擄Cambient temperature unless otherwise specified. Resistive or inductive load, 60Hz.
For Capacitive load derate current by 20%.
Rati ng
Peak Power D i ssi pati on at T
A
=25
O
C , T P=1ms(Note 1)
Steady State Power di ssi pati on at
T
L
= 7 5
O
C
Lead Lengths .375", (95mm) (Note 2)
Peak Forward Surge C urrent, 8.3ms Si ngle Half Si ne-Wave
Superi mposed on Rated Load (JEC ED Method) (Note 3)
Operati ng Juncti on and Storage Temperature Range
Symbol
P
PK
P
D
I
FSM
T
J
,T
STG
Value
5000
8.0
400
-55 to +175
Uni ts
Watts
Watts
Amps
O
C
NOTES:

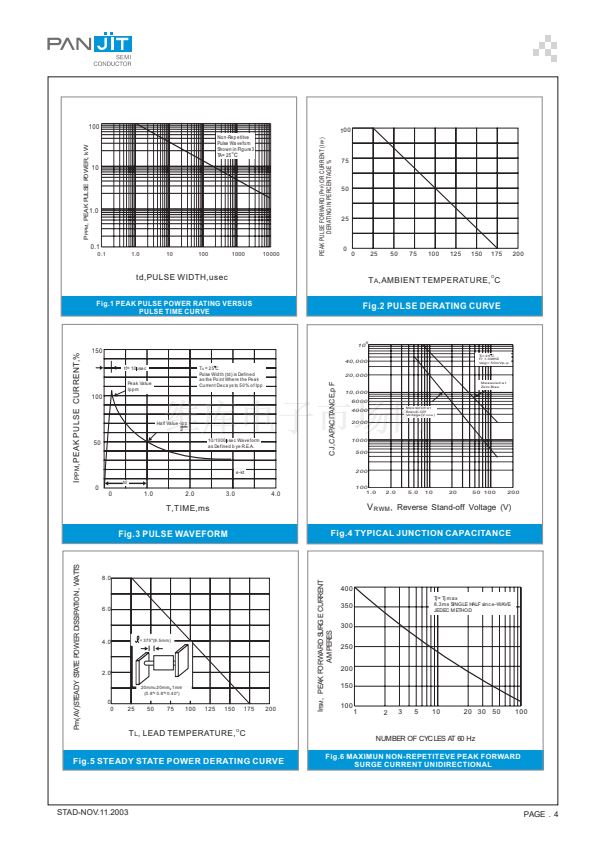

1.Non-repetitive current pulse, per Fig. 3 and derated above T
A
=25擄Cper Fig. 2.
2.Mounted on Copper Leaf area of 0.79in
2
(20mm
2
).
3.8.3ms single half sine-wave, duty cycle= 4 pulses per minutes maximum.
STAD-NOV.11.2003
PAGE . 1
