3.3mA.

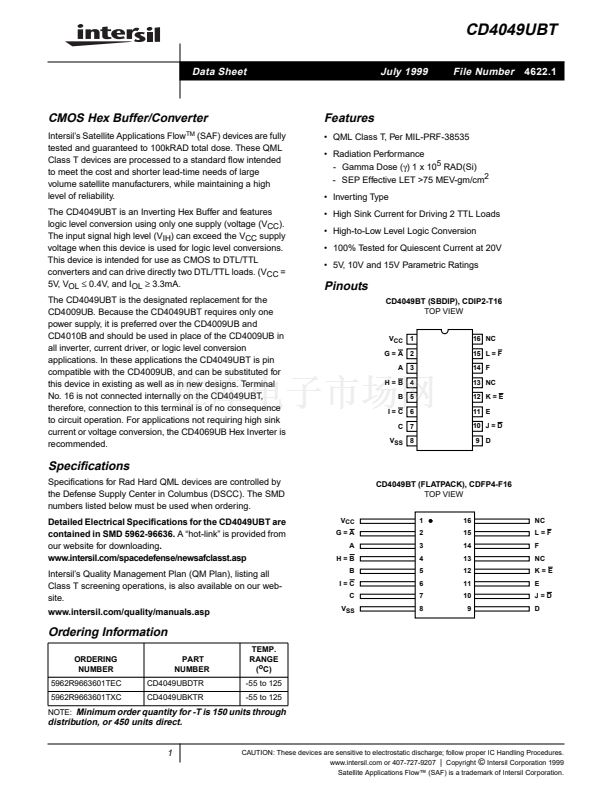

The CD4049UBT is the designated replacement for the
CD4009UB. Because the CD4049UBT requires only one
power supply, it is preferred over the CD4009UB and
CD4010B and should be used in place of the CD4009UB in
all inverter, current driver, or logic level conversion
applications. In these applications the CD4049UBT is pin
compatible with the CD4009UB, and can be substituted for
this device in existing as well as in new designs. Terminal
No. 16 is not connected internally on the CD4049UBT,
therefore, connection to this terminal is of no consequence
to circuit operation. For applications not requiring high sink
current or voltage conversion, the CD4069UB Hex Inverter is
recommended.
Features
鈥?QML Class T, Per MIL-PRF-38535
鈥?Radiation Performance
- Gamma Dose (緯) 1 x 10
5
RAD(Si)
- SEP Effective LET >75 MEV-gm/cm
2
鈥?Inverting Type
鈥?High Sink Current for Driving 2 TTL Loads
鈥?High-to-Low Level Logic Conversion
鈥?100% Tested for Quiescent Current at 20V
鈥?5V, 10V and 15V Parametric Ratings
Pinouts
CD4049BT (SBDIP), CDIP2-T16
TOP VIEW
V
CC
G=A
A
H=B
B
I=C
C
V
SS
1
2
3
4
5
6
7
8
16 NC
15 L = F
14 F
13 NC
12 K = E
11 E
10 J = D
9 D
Speci鏗乧ations
Speci鏗乧ations for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Speci鏗乧ations for the CD4049UBT are
contained in SMD 5962-96636.
A 鈥渉ot-link鈥?is provided from
our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil鈥檚 Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our web-
site.
www.intersil.com/quality/manuals.asp
V
CC
G=A
A
H=B
B
I=C
C
V
SS
CD4049BT (FLATPACK), CDFP4-F16
TOP VIEW
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
NC
L=F
F
NC
K=E
E
J=D
D
Ordering Information
ORDERING
NUMBER
5962R9663601TEC
5962R9663601TXC
PART
NUMBER
CD4049UBDTR
CD4049UBKTR
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
Satellite Applications Flow鈩?(SAF) is a trademark of Intersil Corporation.
