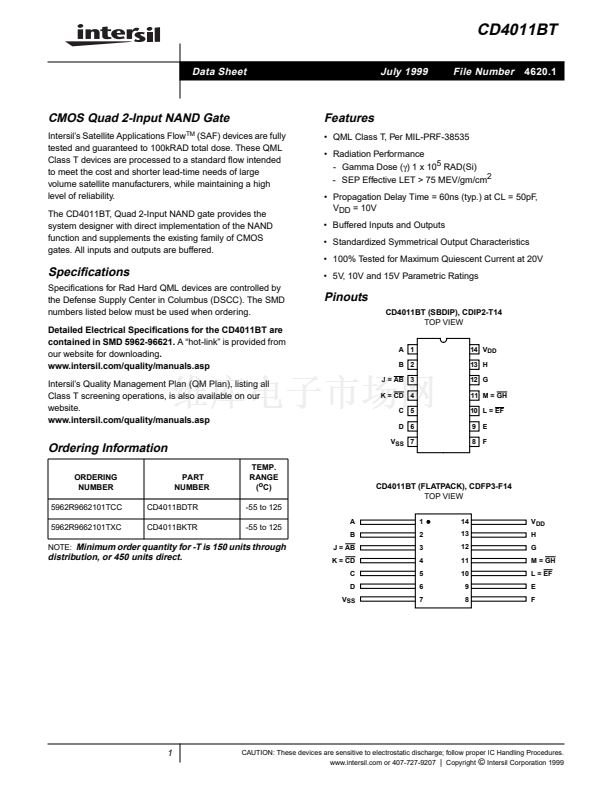

CD4011BT
Data Sheet
July 1999
File Number
4620.1
CMOS Quad 2-Input NAND Gate
Intersil鈥檚 Satellite Applications Flow
TM
(SAF) devices are fully
tested and guaranteed to 100kRAD total dose. These QML
Class T devices are processed to a standard 鏗俹w intended
to meet the cost and shorter lead-time needs of large
volume satellite manufacturers, while maintaining a high
level of reliability.
The CD4011BT, Quad 2-Input NAND gate provides the
system designer with direct implementation of the NAND
function and supplements the existing family of CMOS
gates. All inputs and outputs are buffered.
Features
鈥?QML Class T, Per MIL-PRF-38535
鈥?Radiation Performance
- Gamma Dose (緯) 1 x 10
5
RAD(Si)
- SEP Effective LET > 75 MEV/gm/cm
2
鈥?Propagation Delay Time = 60ns (typ.) at CL = 50pF,
V
DD
= 10V
鈥?Buffered Inputs and Outputs
鈥?Standardized Symmetrical Output Characteristics
鈥?100% Tested for Maximum Quiescent Current at 20V
Speci鏗乧ations
Speci鏗乧ations for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Speci鏗乧ations for the CD4011BT are
contained in SMD 5962-96621.
A 鈥渉ot-link鈥?is provided from
our website for downloading.
www.intersil.com/quality/manuals.asp
Intersil鈥檚 Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
鈥?5V, 10V and 15V Parametric Ratings
Pinouts
CD4011BT (SBDIP), CDIP2-T14
TOP VIEW
A 1
B 2
J = AB 3
K = CD 4
C 5
D 6
V
SS
7
14 V
DD
13 H
12 G
11 M = GH
10 L = EF
9 E
8 F
Ordering Information
ORDERING
NUMBER
5962R9662101TCC
5962R9662101TXC
PART
NUMBER
CD4011BDTR
CD4011BKTR
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
A
B
J = AB
K = CD
C
D
V
SS
CD4011BT (FLATPACK), CDFP3-F14
TOP VIEW
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V
DD
H
G
M = GH
L = EF
E
F
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
