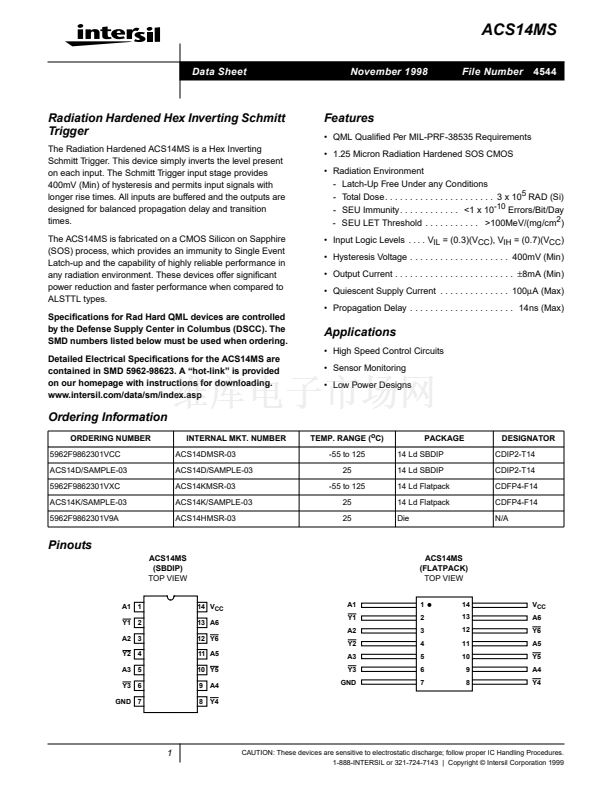

ACS14MS
Data Sheet
November 1998
File Number
4544
Radiation Hardened Hex Inverting Schmitt
Trigger
The Radiation Hardened ACS14MS is a Hex Inverting
Schmitt Trigger. This device simply inverts the level present
on each input. The Schmitt Trigger input stage provides
400mV (Min) of hysteresis and permits input signals with
longer rise times. All inputs are buffered and the outputs are
designed for balanced propagation delay and transition
times.
The ACS14MS is fabricated on a CMOS Silicon on Sapphire
(SOS) process, which provides an immunity to Single Event
Latch-up and the capability of highly reliable performance in
any radiation environment. These devices offer signi鏗乧ant
power reduction and faster performance when compared to
ALSTTL types.
Speci鏗乧ations for Rad Hard QML devices are controlled
by the Defense Supply Center in Columbus (DSCC). The
SMD numbers listed below must be used when ordering.
Detailed Electrical Speci鏗乧ations for the ACS14MS are
contained in SMD 5962-98623. A 鈥渉ot-link鈥?is provided
on our homepage with instructions for downloading.
www.intersil.com/data/sm/index.asp
Features
鈥?QML Quali鏗乪d Per MIL-PRF-38535 Requirements
鈥?1.25 Micron Radiation Hardened SOS CMOS
鈥?Radiation Environment
- Latch-Up Free Under any Conditions
- Total Dose. . . . . . . . . . . . . . . . . . . . . . 3 x 10
5
RAD (Si)
- SEU Immunity . . . . . . . . . . . . <1 x 10
-10
Errors/Bit/Day
- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm
2
)
鈥?Input Logic Levels . . . . V
IL
= (0.3)(V
CC
), V
IH
= (0.7)(V
CC
)
鈥?Hysteresis Voltage . . . . . . . . . . . . . . . . . . . . 400mV (Min)
鈥?Output Current . . . . . . . . . . . . . . . . . . . . . . . .
鹵8mA
(Min)
鈥?Quiescent Supply Current . . . . . . . . . . . . . . 100碌A (Max)
鈥?Propagation Delay . . . . . . . . . . . . . . . . . . . . . 14ns (Max)
Applications
鈥?High Speed Control Circuits
鈥?Sensor Monitoring
鈥?Low Power Designs
Ordering Information
ORDERING NUMBER
5962F9862301VCC
ACS14D/SAMPLE-03
5962F9862301VXC
ACS14K/SAMPLE-03
5962F9862301V9A
INTERNAL MKT. NUMBER
ACS14DMSR-03
ACS14D/SAMPLE-03
ACS14KMSR-03
ACS14K/SAMPLE-03
ACS14HMSR-03
TEMP. RANGE (
o
C)
-55 to 125
25
-55 to 125
25
25
PACKAGE
14 Ld SBDIP
14 Ld SBDIP
14 Ld Flatpack
14 Ld Flatpack
Die
DESIGNATOR
CDIP2-T14
CDIP2-T14
CDFP4-F14
CDFP4-F14
N/A
Pinouts
ACS14MS
(SBDIP)
TOP VIEW
A1
Y1
A2
A2 3
Y2 4
A3 5
Y3 6
GND 7
12 Y6
11 A5
10 Y5
9 A4
8 Y4
Y2
A3
Y3
GND
ACS14MS
(FLATPACK)
TOP VIEW
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V
CC
A6
Y6
A5
Y5
A4
Y4
A1 1
Y1 2
14 V
CC
13 A6
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
