5962-9321604Q2A Datasheet

  • 5962-9321604Q2A

  • EXCALIBUR LOW-NOISE HIGH-SPEED PRECISION OPERATIONAL AMPLIFI...

  • 70頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

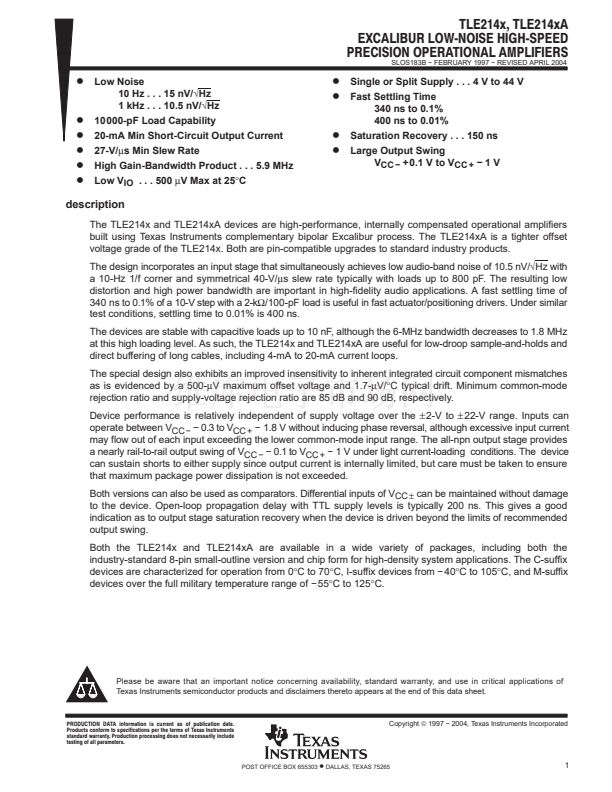

TLE214x, TLE214xA
EXCALIBUR LOW NOISE HIGH SPEED
PRECISION OPERATIONAL AMPLIFIERS
SLOS183B 鈭?FEBRUARY 1997 鈭?REVISED APRIL 2004
D
Low Noise
D
D
D
D
D
10 Hz . . . 15 nV/鈭欻z
1 kHz . . . 10.5 nV/鈭欻z
10 000-pF Load Capability
20-mA Min Short-Circuit Output Current
27-V/碌s Min Slew Rate
High Gain-Bandwidth Product . . . 5.9 MHz
Low V
IO
. . . 500
碌V
Max at 25擄C
D
Single or Split Supply . . . 4 V to 44 V
D
Fast Settling Time
D
D
340 ns to 0.1%
400 ns to 0.01%
Saturation Recovery . . . 150 ns
Large Output Swing
V
CC 鈭?/div>
+ 0.1 V to V
CC +
鈭?1 V
description
The TLE214x and TLE214xA devices are high-performance, internally compensated operational amplifiers
built using Texas Instruments complementary bipolar Excalibur process. The TLE214xA is a tighter offset
voltage grade of the TLE214x. Both are pin-compatible upgrades to standard industry products.
The design incorporates an input stage that simultaneously achieves low audio-band noise of 10.5 nV/鈭欻z with
a 10-Hz 1/f corner and symmetrical 40-V/碌s slew rate typically with loads up to 800 pF. The resulting low
distortion and high power bandwidth are important in high-fidelity audio applications. A fast settling time of
340 ns to 0.1% of a 10-V step with a 2-k鈩?100-pF load is useful in fast actuator/positioning drivers. Under similar
test conditions, settling time to 0.01% is 400 ns.
The devices are stable with capacitive loads up to 10 nF, although the 6-MHz bandwidth decreases to 1.8 MHz
at this high loading level. As such, the TLE214x and TLE214xA are useful for low-droop sample-and-holds and
direct buffering of long cables, including 4-mA to 20-mA current loops.
The special design also exhibits an improved insensitivity to inherent integrated circuit component mismatches
as is evidenced by a 500-碌V maximum offset voltage and 1.7-碌V/擄C typical drift. Minimum common-mode
rejection ratio and supply-voltage rejection ratio are 85 dB and 90 dB, respectively.
Device performance is relatively independent of supply voltage over the
鹵
2-V to
鹵
22-V range. Inputs can
operate between V
CC 鈭?/div>
鈭?0.3 to V
CC +
鈭?1.8 V without inducing phase reversal, although excessive input current
may flow out of each input exceeding the lower common-mode input range. The all-npn output stage provides
a nearly rail-to-rail output swing of V
CC 鈭?/div>
鈭?0.1 to V
CC +
鈭?1 V under light current-loading conditions. The device
can sustain shorts to either supply since output current is internally limited, but care must be taken to ensure
that maximum package power dissipation is not exceeded.
Both versions can also be used as comparators. Differential inputs of V
CC
鹵
can be maintained without damage
to the device. Open-loop propagation delay with TTL supply levels is typically 200 ns. This gives a good
indication as to output stage saturation recovery when the device is driven beyond the limits of recommended
output swing.

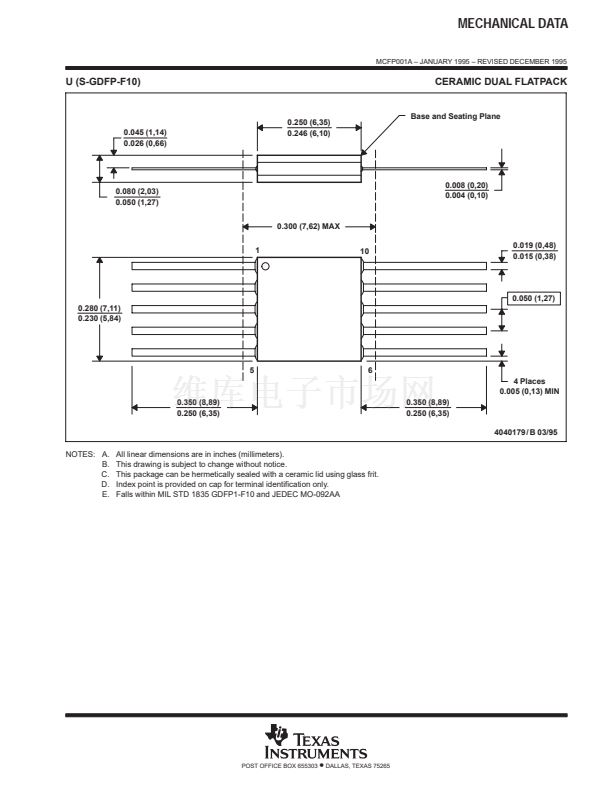

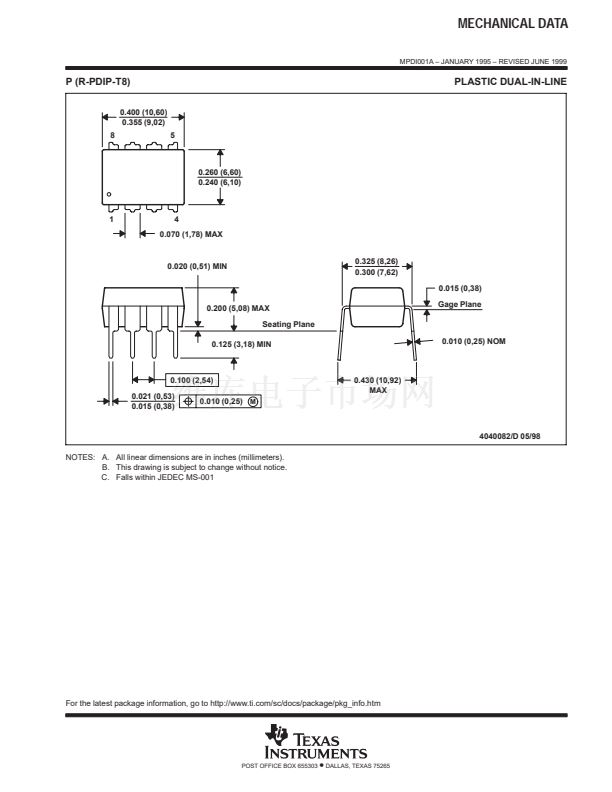

Both the TLE214x and TLE214xA are available in a wide variety of packages, including both the

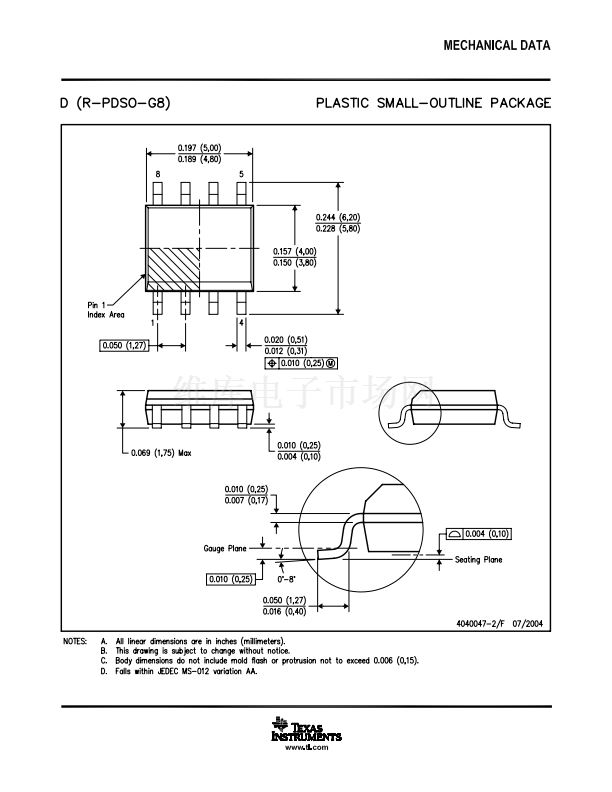

industry-standard 8-pin small-outline version and chip form for high-density system applications. The C-suffix
devices are characterized for operation from 0擄C to 70擄C, I-suffix devices from 鈭?40擄C to 105擄C, and M-suffix
devices over the full military temperature range of 鈭?55擄C to 125擄C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
錚?/div>
1997 鈭?2004, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1
