5962-9314001HPC Datasheet

IC型號：
5962-9314001HPC
PDF描述：
90 V/1.0 Ohm. Hermetically Sealed. Power MOSFET Optocoupler
文件大?。?/label>
192.07KB
PDF頁數：
12頁
芯片廠家：
ETC

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

90 V/1.0

鈩?/div>

, Hermetically Sealed,

Power MOSFET Optocoupler

Technical Data

HSSR-7110

HSSR-7111

HSSR-7112

5962-9314001

5962-9314002

Features

鈥?Dual Marked with Device

Part Number and DSCC

Standard Microcircuit

Drawing

鈥?ac/dc Signal & Power

Switching

鈥?Compact Solid-State

Bidirectional Switch

鈥?Manufactured and Tested on

a MIL-PRF-38534 Certified

Line

鈥?QML-38534

鈥?MIL-PRF-38534 Class H

鈥?Space Level Processing

Available

鈥?Hermetically Sealed 8-Pin

Dual In-Line Package

鈥?Small Size and Weight

鈥?Performance Guaranteed

over -55

擄

C to +125

擄

鈥?Connection A

0.8 A, 1.0

鈩?/div>

鈥?Connection B

1.6 A, 0.25

鈩?/div>

鈥?1500 Vdc Withstand Test

Voltage

鈥?High Transient Immunity

鈥?5 Amp Output Surge Current

Applications

鈥?Military and Space

鈥?High Reliability Systems

鈥?Standard 28 Vdc and 48 Vdc

Load Driver

鈥?Standard 24 Vac Load Driver

鈥?Aircraft Controls

鈥?ac/dc Electromechanical and

Solid State Relay

Replacement

鈥?I/O Modules

鈥?Harsh Industrial

Environments

constructed in eight-pin,

hermetic, dual-in-line, ceramic

packages. The devices operate

exactly like a solid-state relay.

The products are capable of

operation and storage over the

full military temperature range

and may be purchased as a

standard product (HSSR-7110),

with full MIL-PRF-38534 Class H

testing (HSSR-7111 and HSSR-

7112), or from the DSCC

Standard Microcircuit Drawing

(SMD) 5962-93140.

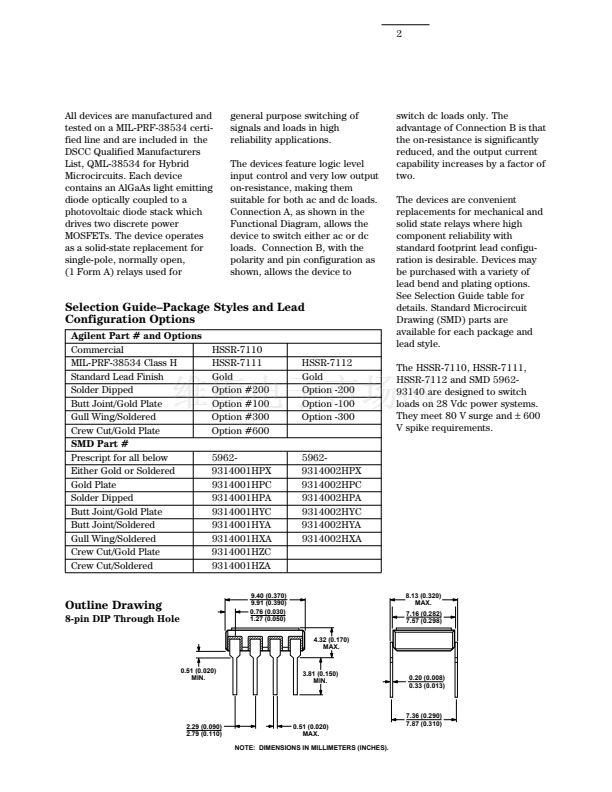

These devices may be purchased

with a variety of lead bend and

plating options. See Selection

Guide Table for details. Standard

Microcircuit (SMD) parts are

available for each lead style.

Description

The HSSR-7110, HSSR-7111,

HSSR-7112 and SMD 5962-

93140 are single channel power

MOSFET optocouplers,

Functional Diagrams

CONNECTION A

AC/DC CONNECTION

1 NC

+ 2

鈥?3

4 NC

鈥?/div>

鈥?3

4 NC

+ 2

1 NC

CONNECTION B

DC CONNECTION

鈥?/div>

TRUTH TABLE

INPUT

OUTPUT

CLOSED

OPEN

CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component

to prevent damage and/or degradation which may be induced by ESD.

數據列表
HSSR-711x, 5962-93140
標準包裝
1
類別
隔離器
家庭
光隔離器 - 邏輯輸出
系列
-
電壓 - 隔離
1500VDC
通道數
1，單向
電流 - 輸出 / 通道
1.6A
數據速率
-
傳輸延遲高 - 低 @ 如果
-
電流 - DC 正向(If)
20mA
輸入類型
DC
輸出類型
柵極驅動器
安裝類型
通孔
封裝/外殼
8-DIP（0.300"，7.62mm）
供應商設備封裝
8-DIP
包裝
管件
