5962-9231402QLA Datasheet

  • 5962-9231402QLA

  • OCTAL REGISTERED TRANSCEIVERS WITH 3-STATE OUTPUTS

  • 18頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

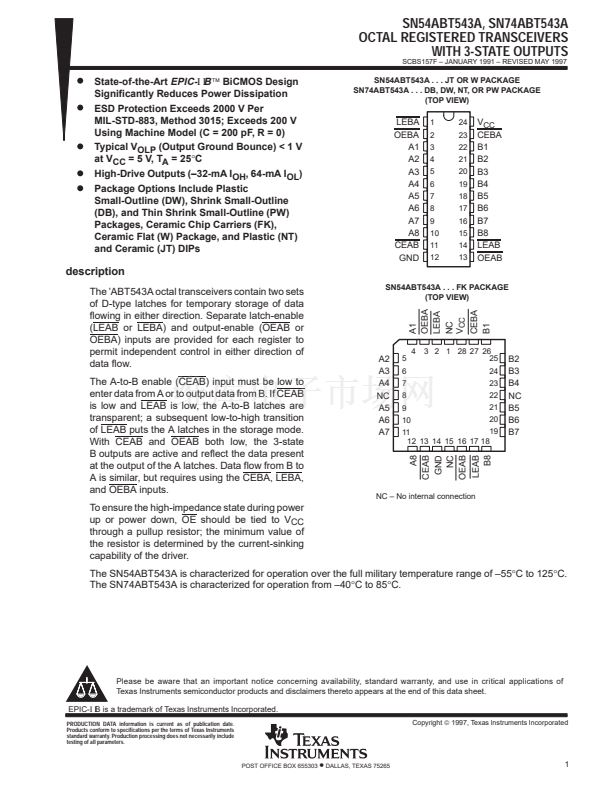

SN54ABT543A, SN74ABT543A
OCTAL REGISTERED TRANSCEIVERS
WITH 3-STATE OUTPUTS
SCBS157F 鈥?JANUARY 1991 鈥?REVISED MAY 1997
D
D
D
D
D
State-of-the-Art
EPIC-
螜螜
B
鈩?/div>
BiCMOS Design
Significantly Reduces Power Dissipation
ESD Protection Exceeds 2000 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)
Typical V
OLP
(Output Ground Bounce) < 1 V
at V
CC
= 5 V, T
A
= 25擄C
High-Drive Outputs (鈥?2-mA I
OH
, 64-mA I
OL
)
Package Options Include Plastic

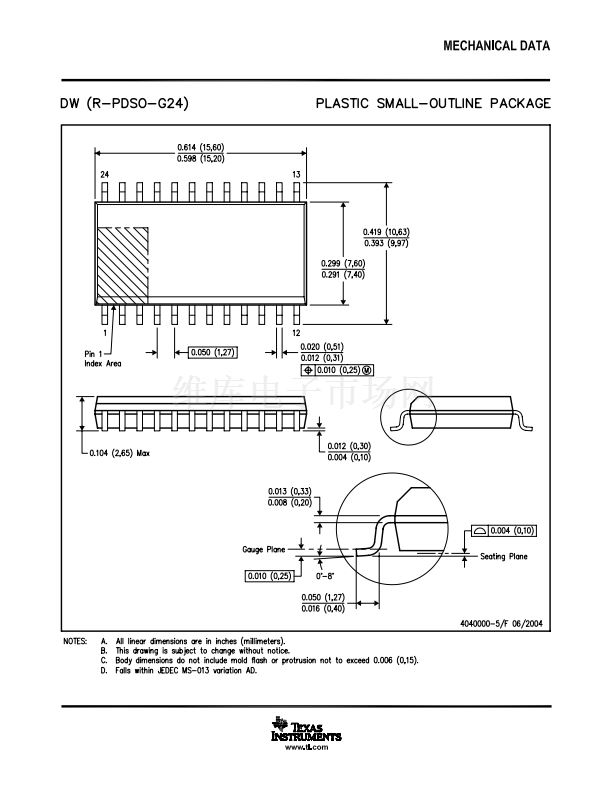

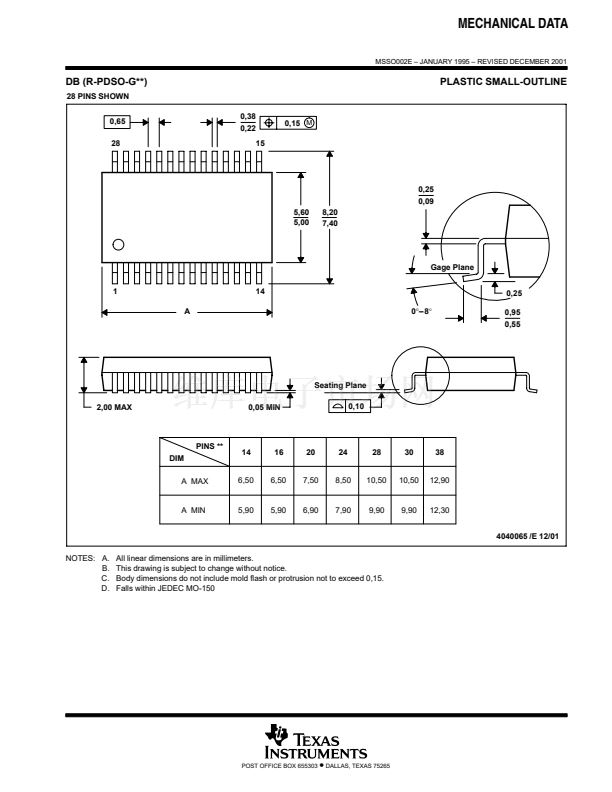

Small-Outline (DW), Shrink Small-Outline

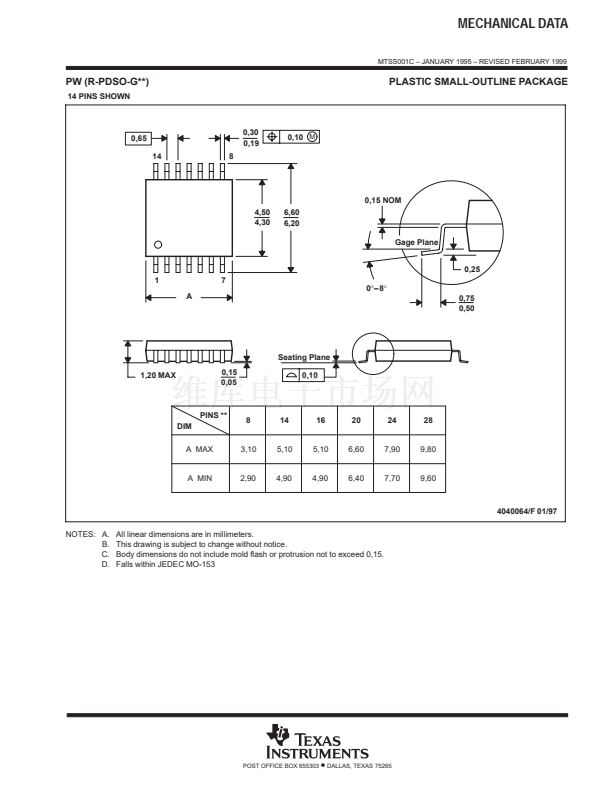

(DB), and Thin Shrink Small-Outline (PW)

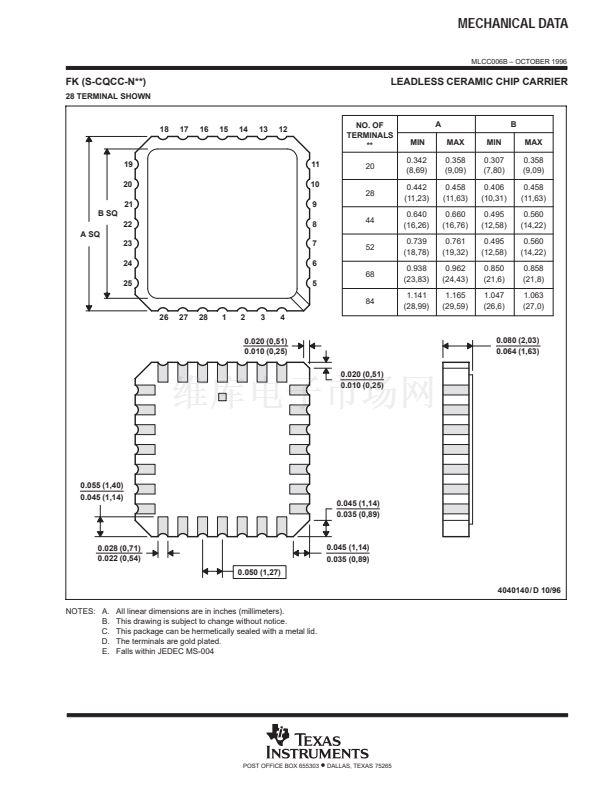

Packages, Ceramic Chip Carriers (FK),

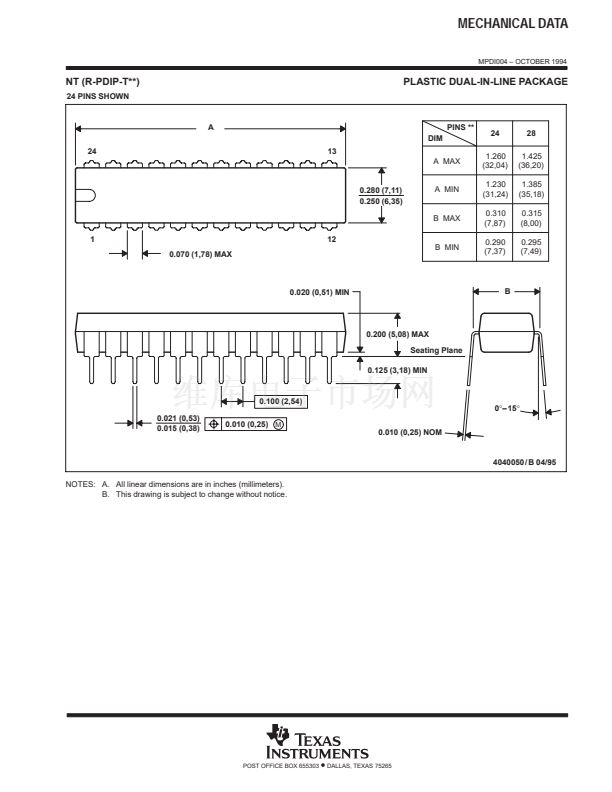

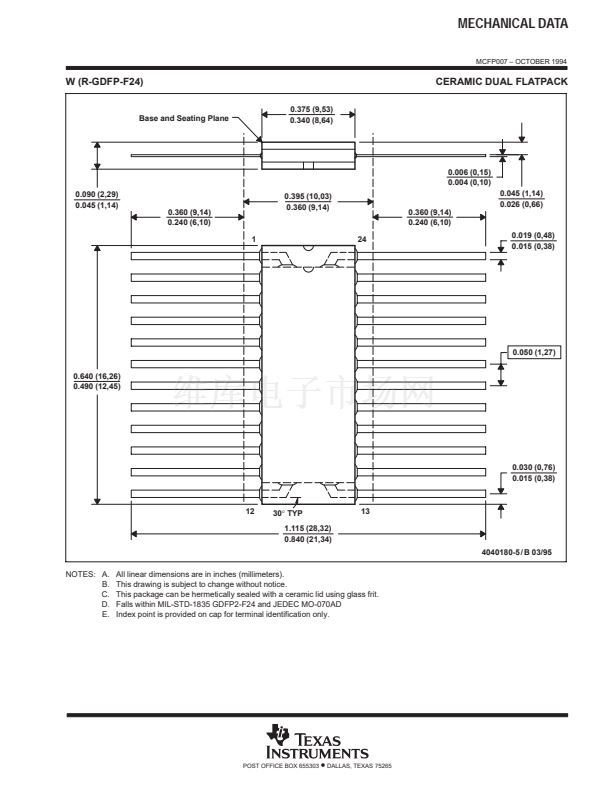

Ceramic Flat (W) Package, and Plastic (NT)

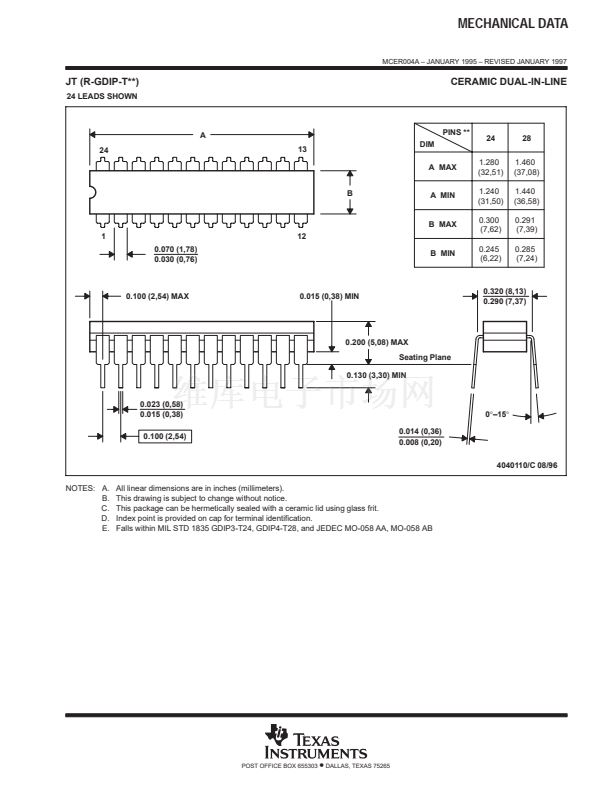

and Ceramic (JT) DIPs
SN54ABT543A . . . JT OR W PACKAGE
SN74ABT543A . . . DB, DW, NT, OR PW PACKAGE
(TOP VIEW)
LEBA
OEBA
A1
A2
A3
A4
A5
A6
A7
A8
CEAB
GND
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
V
CC
CEBA
B1
B2
B3
B4
B5
B6
B7
B8
LEAB
OEAB
description
The 鈥橝BT543A octal transceivers contain two sets
of D-type latches for temporary storage of data
flowing in either direction. Separate latch-enable
(LEAB or LEBA) and output-enable (OEAB or
OEBA) inputs are provided for each register to
permit independent control in either direction of
data flow.
The A-to-B enable (CEAB) input must be low to
enter data from A or to output data from B. If CEAB
is low and LEAB is low, the A-to-B latches are
transparent; a subsequent low-to-high transition
of LEAB puts the A latches in the storage mode.
With CEAB and OEAB both low, the 3-state
B outputs are active and reflect the data present
at the output of the A latches. Data flow from B to
A is similar, but requires using the CEBA, LEBA,
and OEBA inputs.
To ensure the high-impedance state during power
up or power down, OE should be tied to V
CC
through a pullup resistor; the minimum value of
the resistor is determined by the current-sinking
capability of the driver.
The SN54ABT543A is characterized for operation over the full military temperature range of 鈥?5擄C to 125擄C.
The SN74ABT543A is characterized for operation from 鈥?0擄C to 85擄C.
SN54ABT543A . . . FK PACKAGE
(TOP VIEW)
A1
OEBA
LEBA
NC
V
CC
4
A2
A3
A4
NC
A5
A6
A7
5
6
7
8
9
10
3 2 1 28 27 26
25
24
23
22
21
20
CEBA
B1
B2
B3
B4
NC
B5
B6
B7
19
11
12 13 14 15 16 17 18
NC 鈥?No internal connection
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
EPIC-螜螜B is a trademark of Texas Instruments Incorporated.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
A8
CEAB
GND
NC
OEAB
LEAB
B8
Copyright
漏
1997, Texas Instruments Incorporated
1
