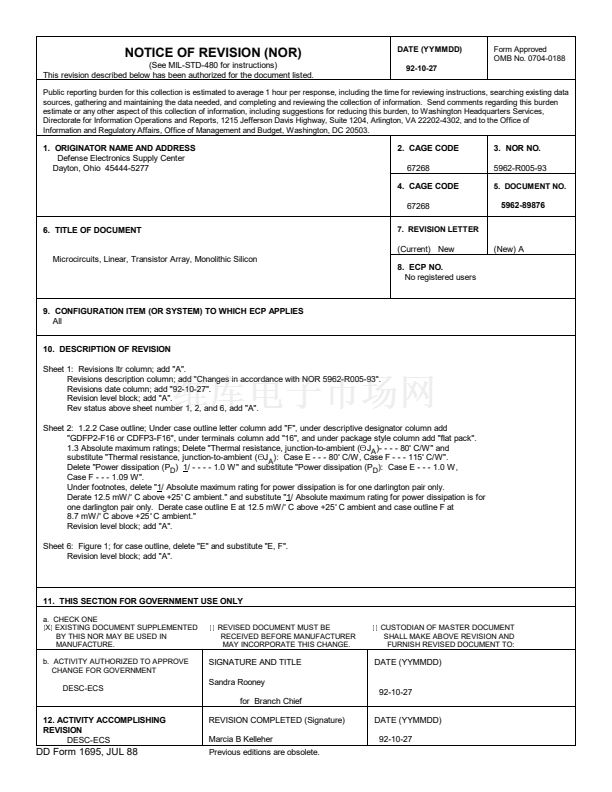

NOTICE OF REVISION (NOR)
(See MIL-STD-480 for instructions)
This revision described below has been authorized for the document listed.
DATE (YYMMDD)
92-10-27
Form Approved
OMB No. 0704-0188
Public reporting burden for this collection is estimated to average 1 hour per response, including the time for reviewing instructions, searching existing data
sources, gathering and maintaining the data needed, and completing and reviewing the collection of information. Send comments regarding this burden
estimate or any other aspect of this collection of information, including suggestions for reducing this burden, to Washington Headquarters Services,
Directorate for Information Operations and Reports, 1215 Jefferson Davis Highway, Suite 1204, Arlington, VA 22202-4302, and to the Office of
Information and Regulatory Affairs, Office of Management and Budget, Washington, DC 20503.
1. ORIGINATOR NAME AND ADDRESS
Defense Electronics Supply Center
Dayton, Ohio 45444-5277
2. CAGE CODE
67268
4. CAGE CODE
67268
3. NOR NO.
5962-R005-93
5. DOCUMENT NO.
5962-89876
6. TITLE OF DOCUMENT
7. REVISION LETTER
(Current) New
Microcircuits, Linear, Transistor Array, Monolithic Silicon
8. ECP NO.
No registered users
(New) A
9. CONFIGURATION ITEM (OR SYSTEM) TO WHICH ECP APPLIES
All
10. DESCRIPTION OF REVISION

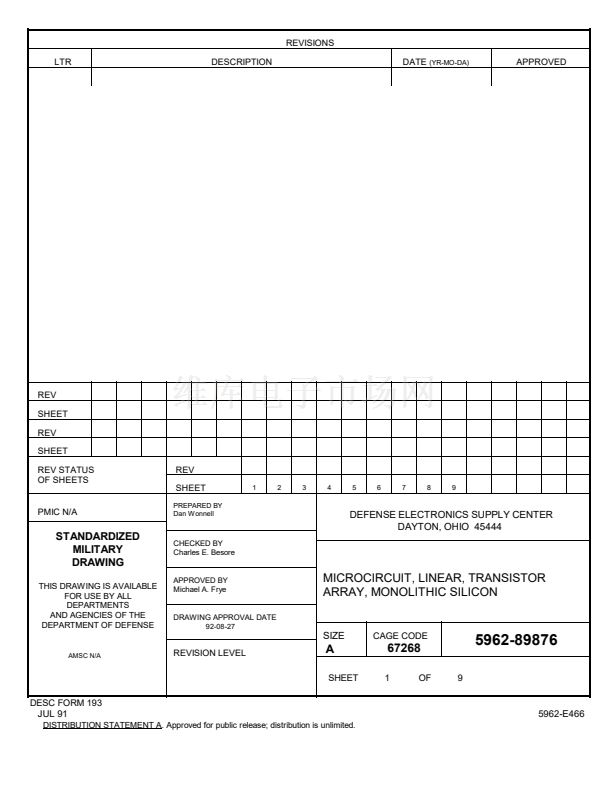

Sheet 1: Revisions ltr column; add "A".
Revisions description column; add "Changes in accordance with NOR 5962-R005-93".
Revisions date column; add "92-10-27".
Revision level block; add "A".
Rev status above sheet number 1, 2, and 6, add "A".

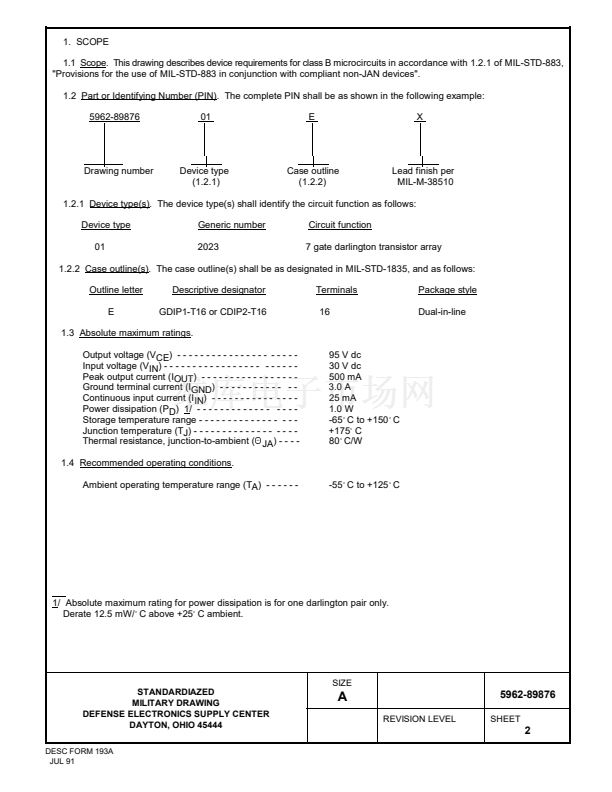

Sheet 2: 1.2.2 Case outline; Under case outline letter column add "F", under descriptive designator column add
"GDFP2-F16 or CDFP3-F16", under terminals column add "16", and under package style column add "flat pack".
1.3 Absolute maximum ratings; Delete "Thermal resistance, junction-to-ambient (
J
A
)- - - - 80
C/W" and
substitute "Thermal resistance, junction-to-ambient (
J
A
): Case E - - - 80
C/W, Case F - - - 115
C/W".
Delete "Power dissipation (P
D
) 1/ - - - - 1.0 W" and substitute "Power dissipation (P
D
): Case E - - - 1.0 W,
Case F - - - 1.09 W".
Under footnotes, delete "1/ Absolute maximum rating for power dissipation is for one darlington pair only.
Derate 12.5 mW/
C above +25
C ambient." and substitute "1/ Absolute maximum rating for power dissipation is for
one darlington pair only. Derate case outline E at 12.5 mW/
C above +25
C ambient and case outline F at
8.7 mW/
C above +25
C ambient."
Revision level block; add "A".

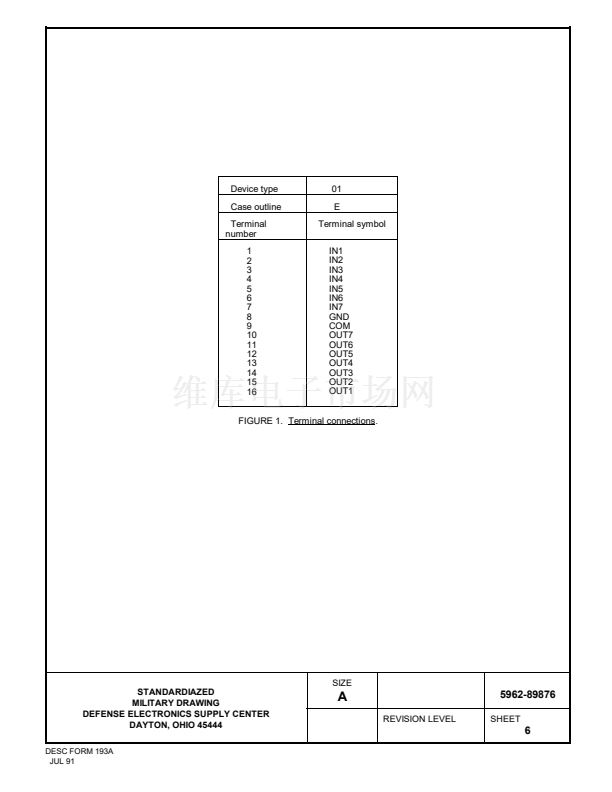

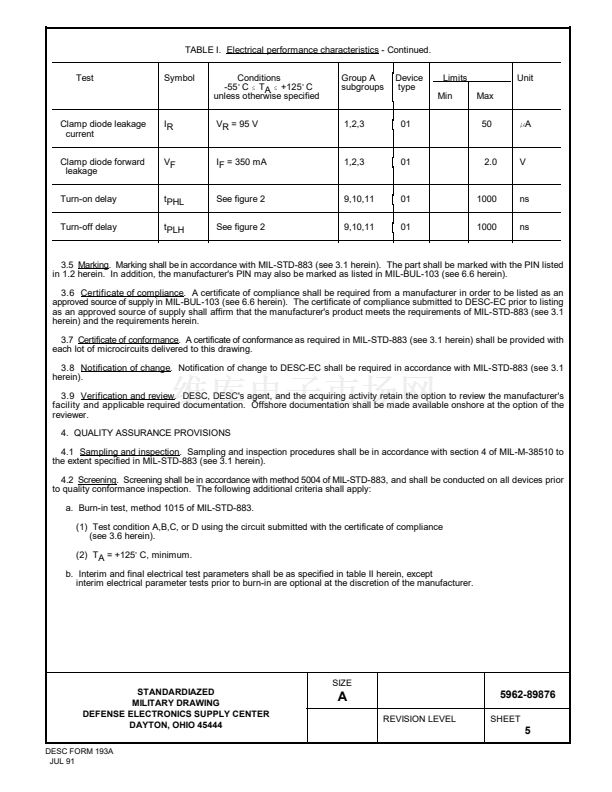

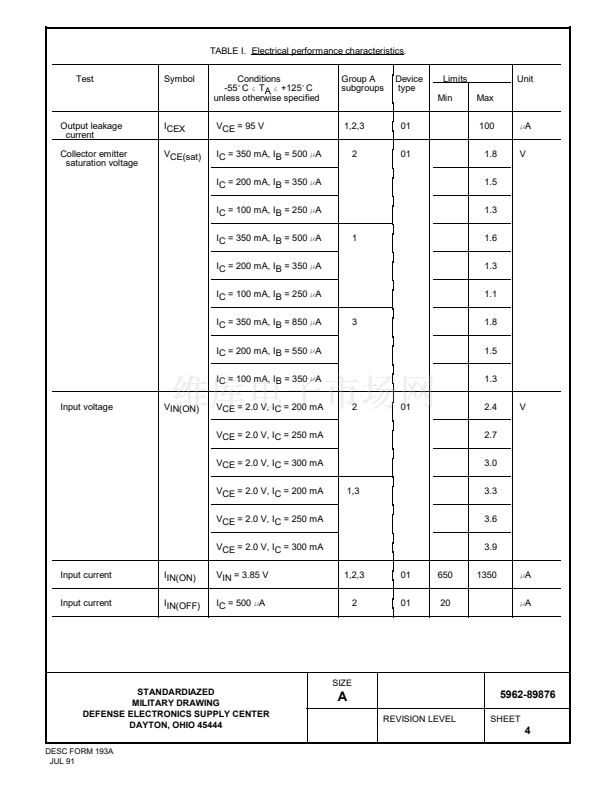

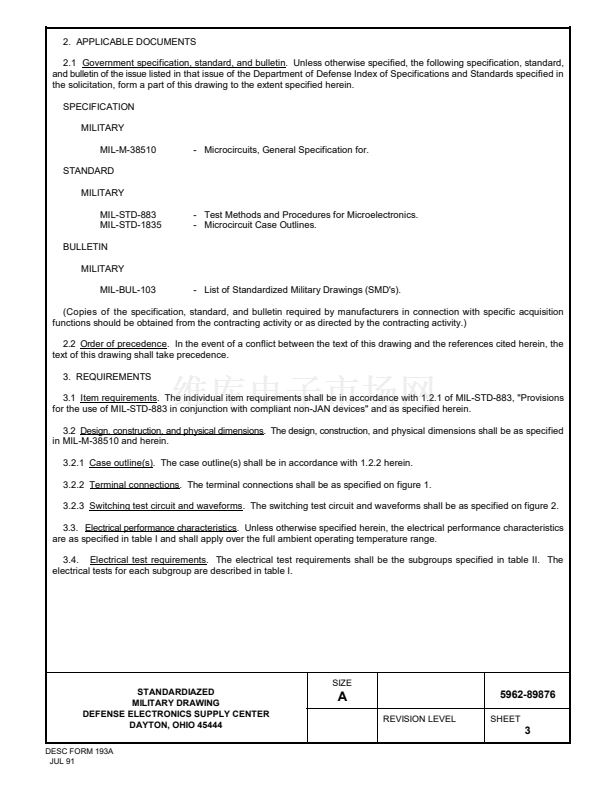

Sheet 6: Figure 1; for case outline, delete "E" and substitute "E, F".
Revision level block; add "A".

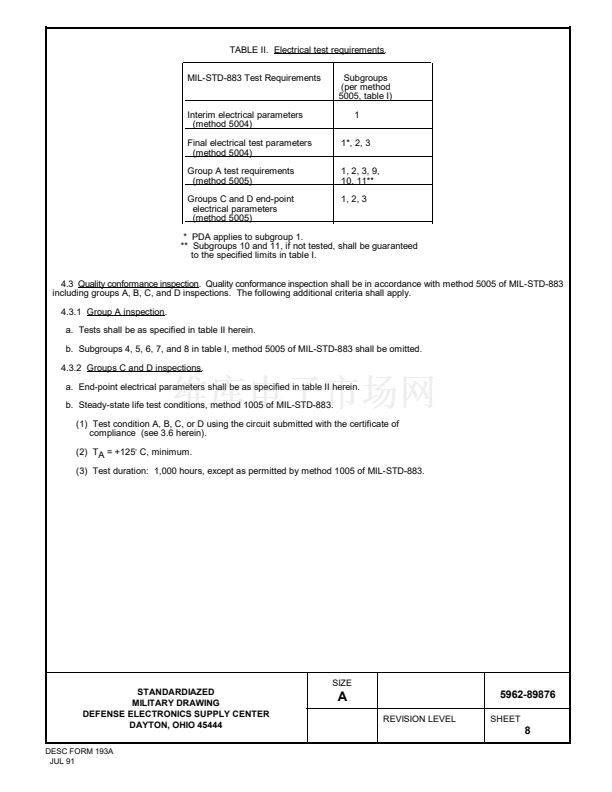

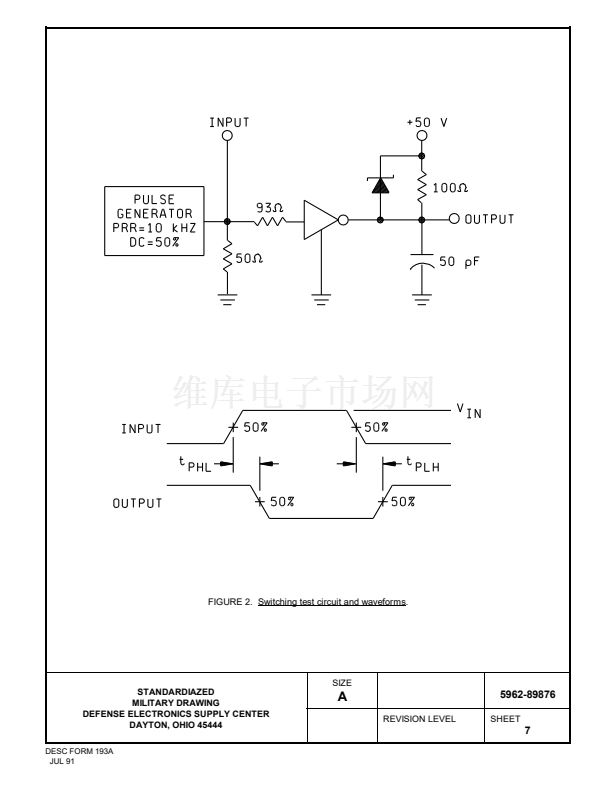

11. THIS SECTION FOR GOVERNMENT USE ONLY
a. CHECK ONE
A
X
B
EXISTING DOCUMENT SUPPLEMENTED
BY THIS NOR MAY BE USED IN
MANUFACTURE.
b. ACTIVITY AUTHORIZED TO APPROVE
CHANGE FOR GOVERNMENT
A B
REVISED DOCUMENT MUST BE
RECEIVED BEFORE MANUFACTURER
MAY INCORPORATE THIS CHANGE.
A B
CUSTODIAN OF MASTER DOCUMENT
SHALL MAKE ABOVE REVISION AND
FURNISH REVISED DOCUMENT TO:
SIGNATURE AND TITLE
Sandra Rooney
DATE (YYMMDD)
DESC-ECS
92-10-27
for Branch Chief
REVISION COMPLETED (Signature)
Marcia B Kelleher
Previous editions are obsolete.
DATE (YYMMDD)
92-10-27
12. ACTIVITY ACCOMPLISHING
REVISION
DESC-ECS
DD Form 1695, JUL 88
