HM-6642
March 1997
512 x 8 CMOS PROM

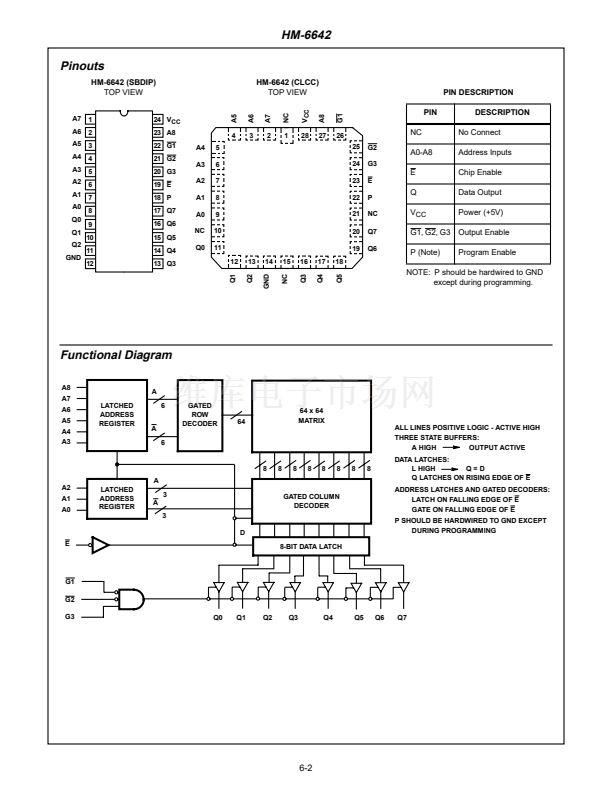

Description
The HM-6642 is a 512 x 8 CMOS NiCr fusible link
Programmable Read Only Memory in the popular 24 pin,
byte wide pinout. Synchronous circuit design techniques
combine with CMOS processing to give this device high
speed performance with very low power dissipation.
On-chip address latches are provided, allowing easy
interfacing with recent generation microprocessors that use
multiplexed address/data bus structures, such as the 8085.
The output enable controls, both active low and active high,
further simplify microprocessor system interfacing by
allowing output data bus control independent of the chip
enable control. The data output latches allow the use of the
HM-6642 in high speed pipelined architecture systems, and
also in synchronous logic replacement functions.
Applications for the HM-6642 CMOS PROM include low
power handheld microprocessor based instrumentation and
communications systems, remote data acquisition and
processing systems, processor control store, and synchro-
nous logic replacement.

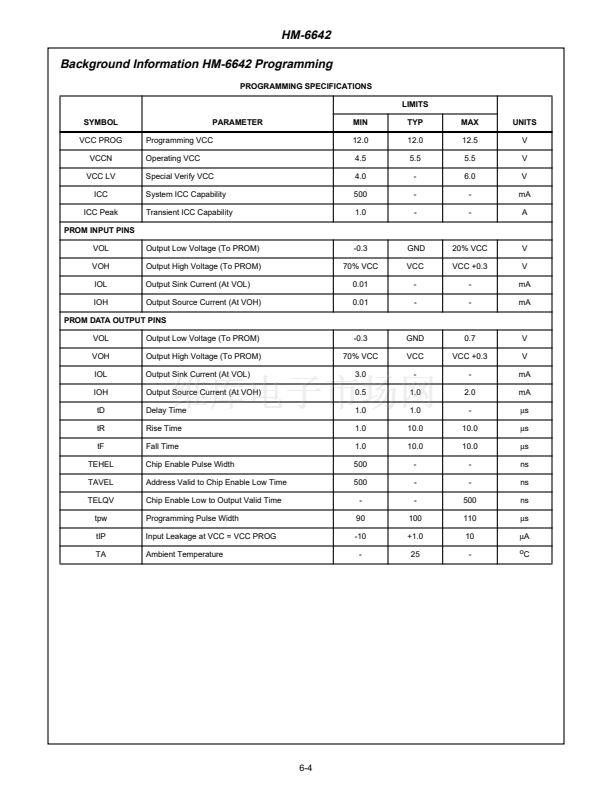

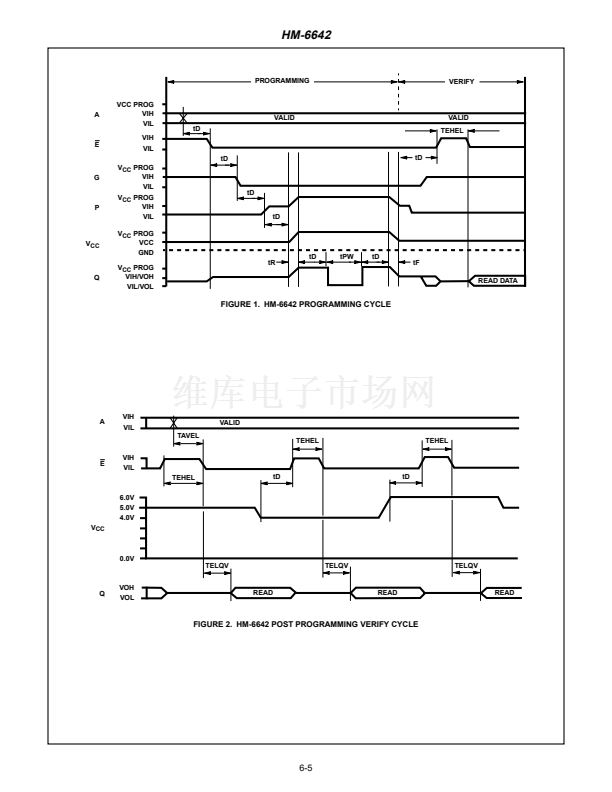

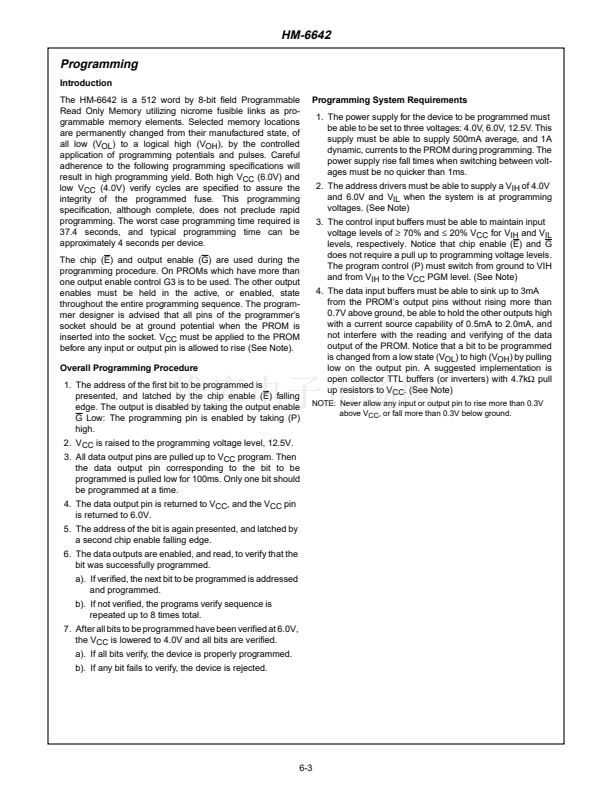

All bits are manufactured storing a logical 鈥?鈥?and can be
selectively programmed for a logical 鈥?鈥?at any bit location.
Features
鈥?Low Power Standby and Operating Power
- ICCSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100碌A
- ICCOP . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA at 1MHz

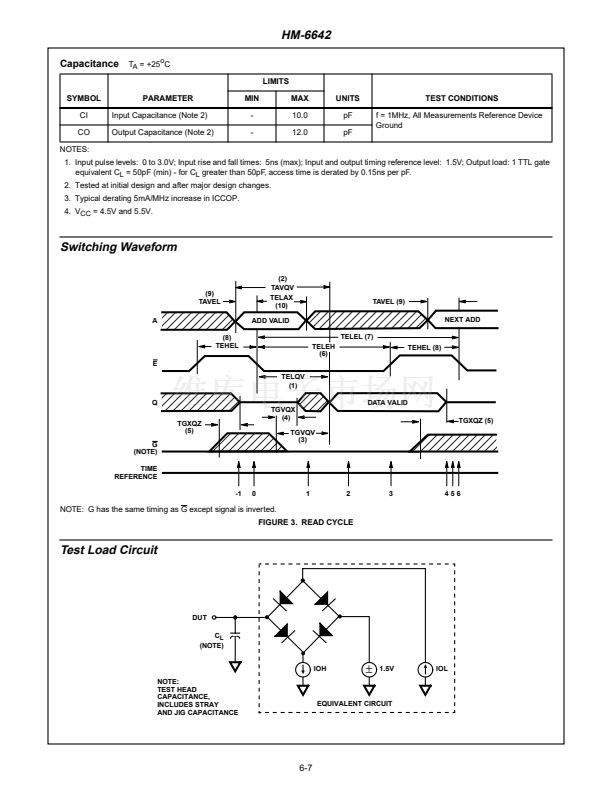

鈥?Fast Access Time. . . . . . . . . . . . . . . . . . . . . . 120/200ns
鈥?Industry Standard Pinout
鈥?Single 5.0V Supply
鈥?CMOS/TTL Compatible Inputs
鈥?Field Programmable
鈥?Synchronous Operation
鈥?On-Chip Address Latches
鈥?Separate Output Enable
Ordering Information
PACKAGE
SBDIP
SMD#
SLIM SBDIP
SMD#
CLCC
SMD#
TEMPERATURE RANGE
-40
o
C to +85
o
C
-55
o
C to +125
o
C
-40
o
C to +85
o
C
-55
o
C to +125
o
C
-40
o
C to +85
o
C
-55
o
C to +125
o
C
120ns
HM1-6642B-9
5962-8869002JA
HM6-6642B-9
5962-8869002LA
-
5962-88690023A
200ns
HM1-6642-9
5962-8869001JA
HM6-6642-9
5962-8869001LA
HM4-6642-9
5962-88690013A
PKG. NO.
D24.6
D24.6
D24.3
D24.3
J28.A
J28.A
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
File Number
3012.1
6-1
