5962-0051202Q2A Datasheet

  • 5962-0051202Q2A

  • FAMILY OF LOW-POWER RAIL-TO-RAIL INPUT/OUTPUT OPERATIONAL AM...

  • 54頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

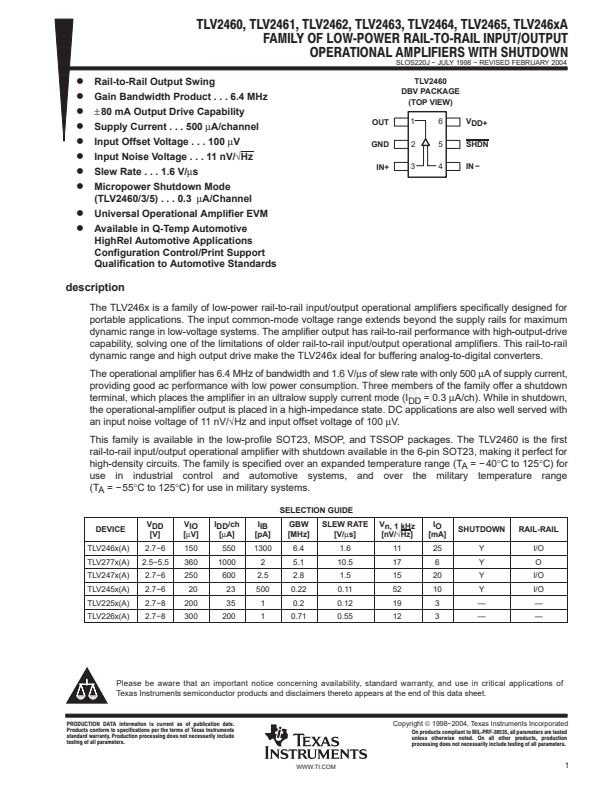

TLV2460, TLV2461, TLV2462, TLV2463, TLV2464, TLV2465, TLV246xA
FAMILY OF LOW POWER RAIL TO RAIL INPUT/OUTPUT
OPERATIONAL AMPLIFIERS WITH SHUTDOWN
SLOS220J 鈭?JULY 1998 鈭?REVISED FEBRUARY 2004
D
D
D
D
D
D
D
D
D
D
Rail-to-Rail Output Swing
Gain Bandwidth Product . . . 6.4 MHz
鹵
80 mA Output Drive Capability
Supply Current . . . 500
碌A(chǔ)/channel
Input Offset Voltage . . . 100
碌V
Input Noise Voltage . . . 11 nV/鈭欻z
Slew Rate . . . 1.6 V/碌s
Micropower Shutdown Mode
(TLV2460/3/5) . . . 0.3
碌A(chǔ)/Channel
Universal Operational Amplifier EVM
Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards

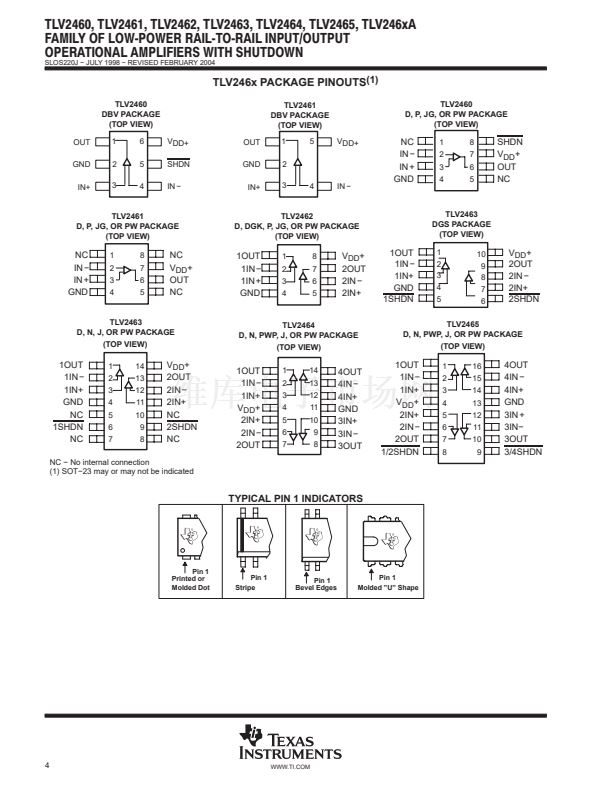

TLV2460

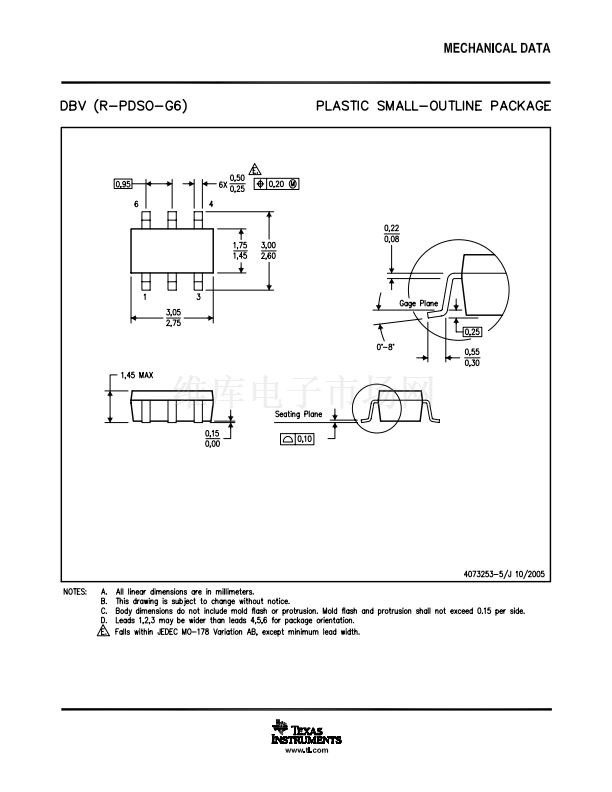

DBV PACKAGE
(TOP VIEW)
OUT
GND
IN+
1
2
3
6
5
4
VDD+
SHDN
IN 鈭?/div>
description
The TLV246x is a family of low-power rail-to-rail input/output operational amplifiers specifically designed for
portable applications. The input common-mode voltage range extends beyond the supply rails for maximum
dynamic range in low-voltage systems. The amplifier output has rail-to-rail performance with high-output-drive
capability, solving one of the limitations of older rail-to-rail input/output operational amplifiers. This rail-to-rail
dynamic range and high output drive make the TLV246x ideal for buffering analog-to-digital converters.
The operational amplifier has 6.4 MHz of bandwidth and 1.6 V/碌s of slew rate with only 500
碌A(chǔ)
of supply current,
providing good ac performance with low power consumption. Three members of the family offer a shutdown
terminal, which places the amplifier in an ultralow supply current mode (I
DD
= 0.3
碌A(chǔ)/ch).
While in shutdown,
the operational-amplifier output is placed in a high-impedance state. DC applications are also well served with
an input noise voltage of 11 nV/鈭欻z and input offset voltage of 100
碌V.
This family is available in the low-profile SOT23, MSOP, and TSSOP packages. The TLV2460 is the first
rail-to-rail input/output operational amplifier with shutdown available in the 6-pin SOT23, making it perfect for
high-density circuits. The family is specified over an expanded temperature range (T
A
= 鈭?40擄C to 125擄C) for
use in industrial control and automotive systems, and over the military temperature range
(T
A
= 鈭?5擄C to 125擄C) for use in military systems.
SELECTION GUIDE
DEVICE
TLV246x(A)
TLV277x(A)
TLV247x(A)
TLV245x(A)
TLV225x(A)
TLV226x(A)
VDD
[V]
2.7鈭?
2.5鈭?.5
2.7鈭?
2.7鈭?
2.7鈭?
2.7鈭?
VIO
[碌V]
150
360
250
20
200
300
IDD/ch
[碌A(chǔ)]
550
1000
600
23
35
200
IIB
[pA]
1300
2
2.5
500
1
1
GBW
[MHz]
6.4
5.1
2.8
0.22
0.2
0.71
SLEW RATE
[V/碌s]
1.6
10.5
1.5
0.11
0.12
0.55
Vn, 1 kHz
[nV/鈭欻z]
11
17
15
52
19
12
IO
[mA]
25
6
20
10
3
3
SHUTDOWN
Y
Y
Y
Y
鈥?/div>
鈥?/div>
RAIL-RAIL
I/O
O
I/O
I/O
鈥?/div>
鈥?/div>
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
錚?/div>
1998鈭?004, Texas Instruments Incorporated
On products compliant to MIL PRF 38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
WWW.TI.COM
1
