TECHNICAL MANUAL
942088.001
TABLE OF CONTENTS
1.- INTRODUCTION

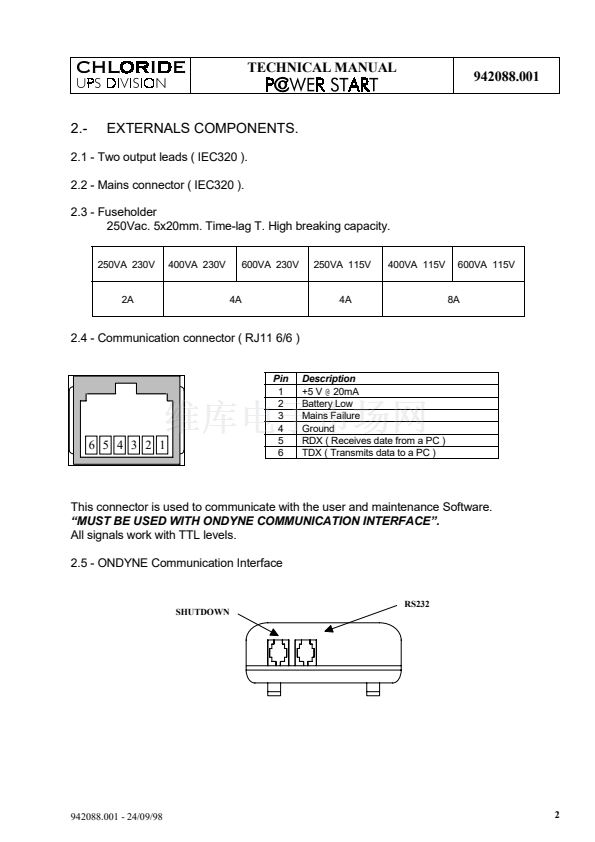

2.- EXTERNALS COMPONENTS
3.- BASIC OPERATION
4.- MAINTENANCE PROCEDURE
5.- ELECTRONIC BOARD OPERATION 7
1
2
4
6
1.-
INTRODUCTION.
鈥淧OWER START鈥?is a single phase line interactive UPS with booster. It is fully
microprocessor controlled with computer communication capabilities.
The power rates are 250VA - 400VA - 600VA for 230V 50Hz and 250VA - 400VA - 600VA
for 115V 60Hz all of them with cos
蠒 =
0.6 (power factor).
It has automatic voltage regulation in two steeps, central and boost. The unit corrects the
low input voltage with the boost step.
The inverter is 鈥淧USH-PULL鈥?with 鈥淣ULL鈥? based on MOSFET technology. The waveform is
regulated pseudosine when the unit operates on-battery.
The charger is based on a lineal regulator with full rectifier bridge.
IN
BOOST
OUT
AC
DC
BATTERY
CONVERTER
The boards鈥?code is 500152.XXX ( these codes can be changed in the future ).
REVISION NOTE : If any repair or modification affecting the revision of the equipment is
carried out, then this situation should be reflected on the identification sticker.
942088.001 - 24/09/98
1
