T-1 3/4 PACKAGE

PIN PHOTODIODE

Description

The MID-56419 is a photodiode mounted in water clear

end look plastic package and suitable for the variety

wavelength.

蠄5.05

(.200)

MID-56419

Package Dimensions

Unit: mm ( inches )

5.47

(.215)

7.62

(.300)

5.90

(.230)

1.00

(.040)

FLAT DENOTES CATHOD

Features

l

l

l

l

l

23.40 MIN.

(.920)

.50 TYP.

(.020)

High photo sensitivity

Low junction capacitance

High cut-off frequency

Fast switching time

Acceptance viwe angle : 60擄

1.00MIN.

(.040)

2.54

(.100)

A

C

Notes :

1.Tolerance is 鹵 0.25 mm (.010") unless otherwise noted.

2.Protruded resin under flange is 1.0 mm (.040") max.

3.Lead spacing is measured where the leads emerge from the package.

Absolute Maximum Ratings

@ T

A

=25

o

C

Parameter

Power Dissipation

Operating Temperature Range

Storage Temperature Range

Lead Soldering Temperature

Maximum Rating

150

-55

o

C to +100

o

C

-55

o

C to +100

o

C

260

o

C for 5 seconds

Unit

mW

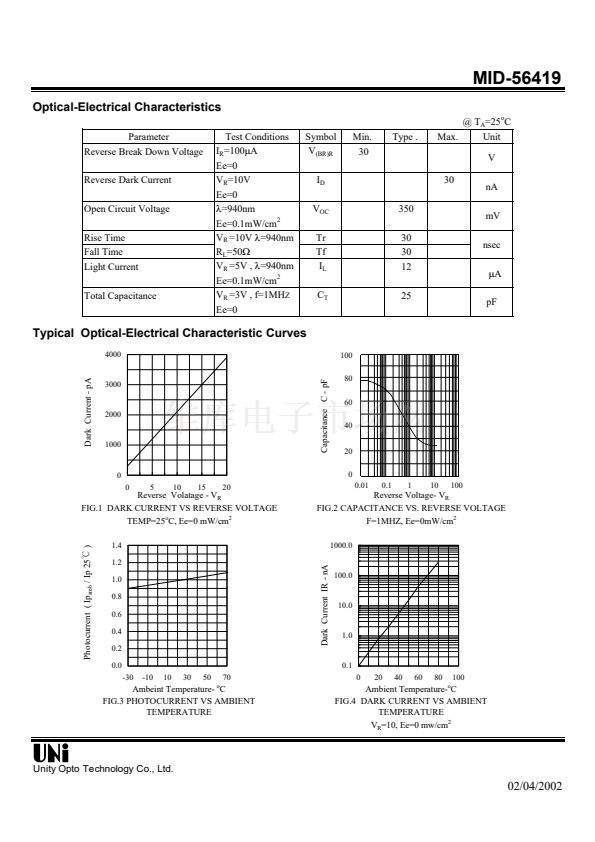

Unity Opto Technology Co., Ltd.

02/04/2002
