High Speed: tPD = 4.0ns (Typ) at VCC = 5V
Low Power Dissipation: ICC = 4碌A(chǔ) (Max) at TA = 25擄C
High Noise Immunity: VNIH = VNIL = 28% VCC
Power Down Protection Provided on Inputs
Balanced Propagation Delays
Designed for 2V to 5.5V Operating Range
Low Noise: VOLP = 1.2V (Max)
Pin and Function Compatible with Other Standard Logic Families
Latchup Performance Exceeds 300mA
ESD Performance: HBM > 2000V; Machine Model > 200V
Chip Complexity: 308 FETs or 77 Equivalent Gates

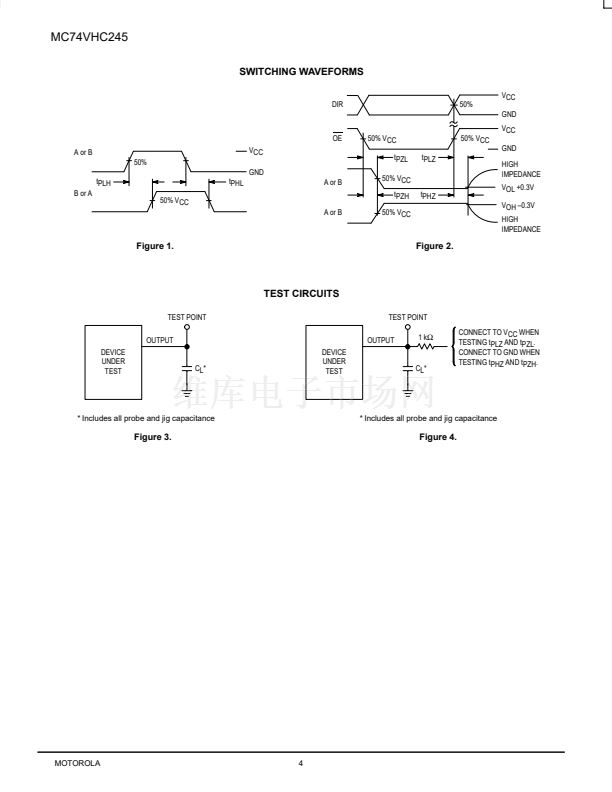

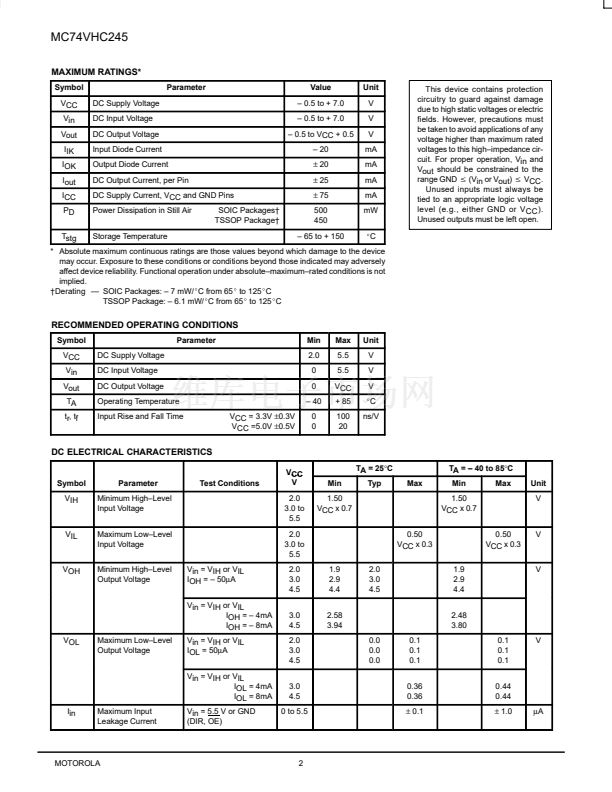

MC74VHC245
DW SUFFIX
20鈥揕EAD SOIC PACKAGE
CASE 751D鈥?4
DT SUFFIX
20鈥揕EAD TSSOP PACKAGE
CASE 948E鈥?2
APPLICATION NOTES
1. Do not force a signal on an I/O pin when it is an active output, damage may
occur.
2. All floating (high impedence) input or I/O pins must be fixed by means of
pull up or pull down resistors or bus terminator ICs.
3. A parasitic diode is formed between the bus and VCC terminals. Therefore,
the VHC245 cannot be used to interface 5V to 3V systems directly.
LOGIC DIAGRAM
A1
A2
A3
A
DATA
PORT
A4
A5
A6
A7
A8
DIR
OE
2
3
4
5
6
7
8
9
1
19
18
17
16
15
14
13
12
11
B1
B2
B3
B4
B5
B6
B7
B8
B
DATA
PORT
M SUFFIX
20鈥揕EAD SOIC EIAJ PACKAGE
CASE 967鈥?1
ORDERING INFORMATION
MC74VHCXXXDW
SOIC
MC74VHCXXXDT
TSSOP
MC74VHCXXXM
SOIC EIAJ
PIN ASSIGNMENT
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VCC
OE
B1
B2
B3
B4
B5
B6
B7
B8
FUNCTION TABLE
Control Inputs
OE
L
L
H
DIR
L
H
X
Operation
O
i
Data Transmitted from Bus B to Bus A
Data Transmitted from Bus A to Bus B
Buses Isolated (High鈥揑mpedance State)
6/97
漏
Motorola, Inc. 1997
1
REV 1
