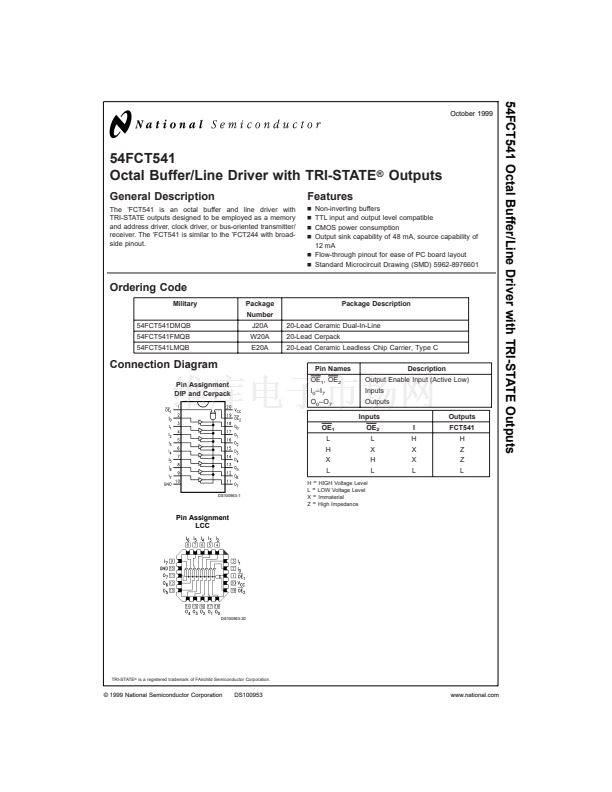

54FCT541 Octal Buffer/Line Driver with TRI-STATE Outputs

October 1999

54FCT541

Octal Buffer/Line Driver with TRI-STATE

廬

Outputs

General Description

The 鈥橣CT541 is an octal buffer and line driver with

TRI-STATE outputs designed to be employed as a memory

and address driver, clock driver, or bus-oriented transmitter/

receiver. The 鈥橣CT541 is similar to the 鈥橣CT244 with broad-

side pinout.

Features

Non-inverting buffers

TTL input and output level compatible

CMOS power consumption

Output sink capability of 48 mA, source capability of

12 mA

n

Flow-through pinout for ease of PC board layout

n

Standard Microcircuit Drawing (SMD) 5962-8976601

n

n

n

n

Ordering Code

Military

54FCT541DMQB

54FCT541FMQB

54FCT541LMQB

Package

Number

J20A

W20A

E20A

20-Lead Ceramic Dual-In-Line

20-Lead Cerpack

20-Lead Ceramic Leadless Chip Carrier, Type C

Pin Names

OE

1

, OE

2

I

0

鈥揑

7

O

0

鈥揙

7

Inputs

Outputs

Inputs

OE

1

L

H

X

L

H = HIGH Voltage Level

L = LOW Voltage Level

X = Immaterial

Z = High Impedance

Package Description

Connection Diagram

Pin Assignment

DIP and Cerpack

Description

Output Enable Input (Active Low)

Outputs

I

H

X

X

L

FCT541

H

Z

Z

L

OE

2

L

X

H

L

DS100953-1

Pin Assignment

LCC

DS100953-30

TRI-STATE

廬

is a registered trademark of FAirchild Semiconductor Corporation.

漏 1999 National Semiconductor Corporation

DS100953

www.national.com
